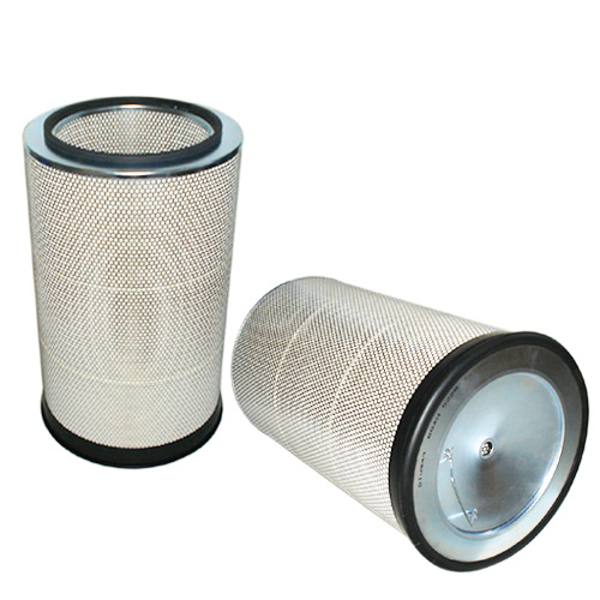

AIR FILTER PRIMARY ROUND

HF185

AIR FILTER PRIMARY ROUND

HF185

£326.40 exc VAT

In stock

In stock

Order By 2pm for UK Free Next Day Delivery

Orders under £150 Standard Delivery £15 +VAT

Orders over £150 Free Delivery

Product Specification
Outer Diameter Top Rim 465 mm (18.31 inch)
Outer Diameter 447 mm (17.60 inch)
Inner Diameter 310 mm (12.21 inch)
Inner Diameter Bottom Bolt Hole 23 mm (0.91 inch)
Length 585 mm (23.03 inch)
Overall Length 600 mm (23.62 inch)
Efficiency Beta 1000 99.9%
Efficiency Test Standard ISO IATF 16949
Family Extreme Protection
Type OEM Quality Air Filter
Style Primary Round
Media Type Cellulose Pleated
Notes Bottom End Closed
Notes Metal End Caps
Notes Metal Mesh Protection
Notes Safety HF186
Primary Application CASE IH 1050507

OEM Cross Reference

Manufacturer Name Manufacturer Part No
AC DELCO A901C
AERZENER 123520000
AMERICAN PARTS 1150
AMERICAN PARTS 93238
AP PARTS AP3520A
ASAS HF185
ASAS FILTER HF185
ASTEC UNDERGROUND 21000263
BALDWIN PA2453
BERGERAT MONNOYEUR E2305
BIG A 1150
BIG A 93238
CANADIAN FILTER CFM574
CARBOCOL PA2453
CARQUEST 87238
CASE IH 1050507
CASE IH 150507
CASE IH E1010507
CASE IH E1250566
CASE IH F1010507
CASE IH F1050507
CASE IH F150507
CASE IH P1050507
CATERPILLAR 1W3637
CATERPILLAR 3I0793
CATERPILLAR CV21183
CATERPILLAR 1327172
CHARDONNET 7218104000
COMPAIR 9826250710001
CONTINENTAL PCA1570
COOPERS AEM2022
COOPERS AZA514
CYCLONE PMA117782
DART 401PPP117782
DART SMP181040
DELUXE 684
DELUXE 684AIR
DELUXE AF684
DONALDSON P181040
DONALDSON P182040
DONALDSON DBA7040
DONALDSON EAF5040
DONALDSON P117782
DONALDSON P129610
DONALDSON P136658
DONALDSON P140237
DONALDSON P142747
DONALDSON P185040
DRILTECH 1036
DRILTECH 103661
DRILTECH 1036061
EDMAC COMPRESSOR 3004079799
ELOFIC EXA1249
EUCLID 4022651
EUCLID 9038350
EUCLID 9059562
FAUN 746713
FIL HP4635
FILTER MEX FMA1570
FLEETGUARD AF899M
FLEETGUARD AF899
FRAM CA1570
GUARDIAN G117782
GUASCOR 7650214
HAVAM HD6820
HEAVY DUTY AIR HDA6658
HEAVY DUTY AIR HDA7782
HIFI SA10849
INDUCONTROL AR1570
INGERSOLL RAND 35356153
INGERSOLL RAND 52277381
KELTEC KC910010
KENWORTH 3040615
KENWORTH 3040616
KENWORTH 3040644
KENWORTH 3040648
KENWORTH 3040653
KENWORTH 3040654
KENWORTH 401PPP117782
KNECHT AG155
KOMATSU 5810212120
KRALINATOR LA574
LETOURNEAU PB1400
LETOURNEAU PB1569
LETOURNEAU PB2101
LETOURNEAU VA0010
LIEBHERR 130110
LIEBHERR 130110
LIEBHERR 5610969
LIEBHERR 5810212120
LINDENBERG ANLAGEN MDONP182040
LOCKHEED AP3520
LOCKHEED AP3520A
LOCKHEED LK3520
LOESING 20897
LOESING 22007
LUBER FINER LAF1818
LUBER FINER LAF1818MXM
LUBER FINER LAF7782
MANN HUMMEL C453265x
MANN HUMMEL C453265
MCCORMICK 1050507
MCCORMICK F1050507
MCCORMICK F150507
MCCORMICK P1050507
MISFAT RM985
MOTORCRAFT FA756
MTU 8690940013
NAPA 2238
NELSON 117782
NELSON 70125N
NELSON WINSLOW 117782
NEW HOLLAND F1050507
NUTECH N2787
NUTECH S2787
ORENSTEIN KOPPEL 101094
ORENSTEIN KOPPEL 8406371
ORENSTEIN KOPPEL B406371
PALLMAN PFA18244
PALLMAN FILTER PFA18244
PARKER HANNIFIN PA2453XP
PERKINS CV21183
PERKINS CH11396
POSTAS HF1410
PUROLATOR 6696758
PUROLATOR A72922
PUROLATOR AF2922
REFILCO AF2238
REYTOR IT117782
RYCO HDA5396
SAKURA A9218
SDMO 330570136
SF FILTER SL8946
SOFIMA S7315A
SURE FILTER SFA1040P
TEREX 9059562
TEREX 9038350
TEREX 9059512
TEREX F1010507
TEREX F1050507
TIM 1W3637
TRP 1534726
UFI 2731400
UFI 2731500
UNICO AE45585
UNIT RIG EQUIPMENT 901619
UNITED CENTRAL INDUSTRIAL 687480
UNITED ENGINE LIFE U17782
VMC AF181040
WABCO 7001329
WABCO PB1400
WABCO PB1569
WABCO PB2101
WABCO VJ0075
WABCO VJ5175
WALGAHN MOTORENTECHN 811057
WALGAHN MOTORENTECHN 811141
WIRTGEN 95383
WIX 42238
WOODGATE WGA406
YVEL FLUIDES YFA02242

Machinery & Equipment

Equipment Year Equipment Type Equipment Options Engine
CASE IH 1000CA EXCAVATOR DEUTZ BF12L413F
CASE IH 300CK EXCAVATOR DEUTZ F12L413
CASE IH 300CL EXCAVATOR TRACKED DEUTZ F12L413
CASE IH 350CK EXCAVATOR DEUTZ F12L413
CASE IH B SERIES EXCAVATOR DEUTZ F12L413
CATERPILLAR 3524B ENGINE DETROIT DIESEL 12V149
EUCLID R100 HAUL TRUCK DETROIT DIESEL 12V149
EUCLID R100 HAUL TRUCK DETROIT DIESEL 16V149
KOMATSU 830E HAUL TRUCK DETROIT DIESEL 16V149
KOMATSU HD1200M1 HAUL TRUCK CUMMINS KTA2300
KOMATSU HD1600M1 DUMP TRUCK CUMMINS KTA3067
LIEBHERR R984B EXCAVATOR TRACKED R SERIES CUMMINS KTTA19
LIEBHERR R984C EXCAVATOR TRACKED R SERIES CUMMINS QSK19
POCLAIN 1000 CONSTRUCTION EQUIPMENT DEUTZ BF12L413
POCLAIN 1000EC CONSTRUCTION EQUIPMENT DEUTZ BF12L413
POCLAIN 300 CONSTRUCTION EQUIPMENT DEUTZ BF12L413
POCLAIN 610 CONSTRUCTION EQUIPMENT DEUTZ BF12L413
TEREX 33 09 HAUL TRUCK DETROIT DIESEL 16V71
TEREX 33 09AA HAUL TRUCK CATERPILLAR C27 ATAAC
WIRTGEN W 2200 2010 MILLING EQUIPMENT W SERIES CATERPILLAR C27 ATAAC
WIRTGEN WR 2400 2005 ROAD STABILIZER WR SERIES MERCEDES OM502LA AG3
ZETTELMEYER 1000 CONSTRUCTION EQUIPMENT ZETTELMEYER 1000
