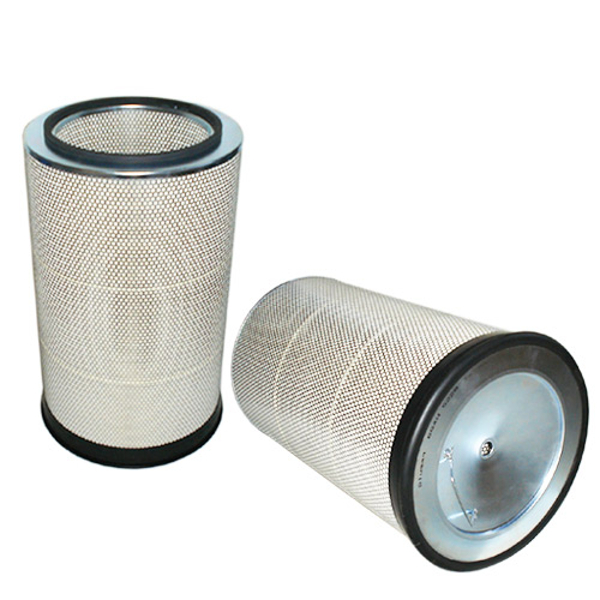

AIR FILTER PRIMARY ROUND
PFA18238
AIR FILTER PRIMARY ROUND
PFA18238
£333.99 exc VAT
In stock
In stock
Order By 2pm for UK Free Next Day Delivery
Orders under £250 Standard Delivery £25 +VAT
Orders over £250 Free Delivery
| Product Specification | |
| Outer Diameter Top Rim | 465 mm (18.31 inch) |
| Outer Diameter | 447 mm (17.60 inch) |
| Inner Diameter | 280 mm (11.02 inch) |
| Inner Diameter Bottom Bolt Hole | 23 mm (0.91 inch) |
| Length | 585 mm (23.03 inch) |
| Overall Length | 600 mm (23.62 inch) |
| Efficiency Beta 1000 | 99.9% |
| Efficiency Test Standard | ISO IATF 16949 |
| Family | Extreme Protection |
| Type | OEM Quality Air Filter |
| Style | Primary Round |
| Media Type | Cellulose Pleated |
| Notes | Bottom End Closed |
| Notes | Metal End Caps |
| Notes | Metal Mesh Protection |
| Notes | Safety HF300 |
| Primary Application | CATERPILLAR 2515885 |
OEM Cross Reference
| Manufacturer Name | Manufacturer Part No |
| AC DELCO | A554C |
| AIR REFINER | ARM115069 |
| AIR REFINER | ARM181038 |
| AMERICAN MOTORS CORP | SFA0879P |
| AMERICAN PARTS | 1147 |
| AMERICAN PARTS | 93440 |
| ASTRA | 62101232 |
| BALDWIN | PA2363 |
| BALDWIN | LL2363 |
| BIG A | 1147 |
| BIG A | 93440 |
| BUHLER VERSATILE | USP66215010 |
| CANADIAN FILTER | CFM528 |
| CARBOCOL | 36475 |
| CARBOCOL | 1475342 |
| CATERPILLAR | 2515885 |
| CATERPILLAR | 2925862 |
| CATERPILLAR | 3I0791 |
| CATERPILLAR | 3I0919 |
| CATERPILLAR | 9Y6835 |
| CATERPILLAR | 9Y7662 |
| CATERPILLAR | 1327173 |
| CHAMP | AF5069 |
| CHAMP | LAF5069 |
| CHAMP INTERNATIONAL | LAF5069 |
| CHARDONNET | 7218103800 |
| COMPAIR | 694488 |
| CONTINENTAL | PCA573 |
| COOPERS | AEM2012 |
| CUMMINS | 3010306 |
| CUMMINS | 3013214 |
| CUMMINS | 3015349 |
| CUMMINS | 3875391 |
| CUMMINS | VS2186 |
| CYCLONE | PMA115069 |
| DART | XLP182038 |
| DART | 3040562 |
| DART | SMP181038 |
| DELUXE | 681 |
| DELUXE | 681AIR |
| DELUXE | AF681 |
| DEMAG | 694488 |
| DEMAG | 988635 |
| DEUTZ | 3745965 |
| DONALDSON | P181038 |
| DONALDSON | P182038 |
| DONALDSON | DBA7038 |
| DONALDSON | EAF5038 |
| DONALDSON | P115069 |
| DONALDSON | P129600 |
| DONALDSON | P140236 |
| DONALDSON | P184038 |
| DONALDSON | P185038 |
| DRESSER | VE0779 |
| DRILTECH | 16708059 |
| EIMCO | 69008917 |
| EIMCO | D2NP181038 |
| EUCLID | 4082222 |
| EUCLID | 40822223 |
| EUCLID | 6945659 |
| EUCLID | E4082222 |
| EUCLID | 4031216 |
| EXMAN | SFA0879P |
| FAMEL | FR1077 |
| FIL | HP945 |
| FLEETGUARD | AF879M |
| FLEETGUARD | AF879 |
| FORD | 9576P181038 |
| FRAM | CA573 |
| FREIGHTLINER | DNP181038 |
| GARDNER DENVER | 5825543 |
| GUARDIAN | G115069 |
| HAVAM | HD6605 |
| HAVAM | HD8900 |
| HEAVY DUTY AIR | HDA5069 |
| HIFI | SA10829 |
| HITACHI | 433192 |
| HITACHI | 4331923 |
| HITACHI | L4331923 |
| HITACHI | X4331923 |
| HITACHI | E4082222 |
| INGERSOLL RAND | 35325885 |
| INGERSOLL RAND | 39190103 |
| INGERSOLL RAND | 52242971 |
| INGERSOLL RAND | 56964562 |
| INGERSOLL RAND | 57087264 |
| KENWORTH | 10005140 |
| KENWORTH | 3040553 |
| KENWORTH | 3040562 |
| KENWORTH | 3040683 |
| KHD | 3745965 |
| KOMATSU | 694488 |
| KOMATSU | 69448800 |
| KOMATSU | VE0779 |
| KOMATSU | VS2186 |
| KOMATSU | VS2186HD |
| KOMATSU | VS2186HP |
| KOMATSU | 988635 |
| KRALINATOR | LA528 |
| KRESS | 50388 |
| LEROI | 43669 |
| LETOURNEAU | 1438 |
| LETOURNEAU | 4078927 |
| LETOURNEAU | 4079927 |
| LETOURNEAU | PB0687 |
| LETOURNEAU | PB1242 |
| LETOURNEAU | PB2433 |
| LETOURNEAU | VA0003 |
| LETOURNEAU | VS2186 |
| LETOURNEAU | YA0003 |
| LETOURNEAU | 4231018 |
| LEYLAND DAF | D988635 |
| LIEBHERR | 13011A1 |
| LOESING | 20289 |
| LOESING | 20869 |
| LUBER FINER | LAF5069 |
| LUBER FINER | LAF5079 |
| MANN HUMMEL | C45005x |
| MARATHON EQPT LTD | 4078927 |
| MIKROPUL PULVERIZING | 172037 |
| MTU | 8690940080 |
| NAPA | 2440 |
| NELSON | 115069 |
| NELSON | 70090N |
| NELSON | 70400N |
| NELSON WINSLOW | 115069 |
| NUTECH | N2587 |
| NUTECH | S2587 |
| ORENSTEIN KOPPEL | 101080 |
| ORENSTEIN KOPPEL | 1408439 |
| PALLMAN | PFA18238 |
| PALLMAN FILTER | PFA18238 |
| PARKER HANNIFIN | PA2363 |
| PAWLING HARNISCHFEGER | 1046Z507 |
| PAWLING HARNISCHFEGER | 1046Z727 |
| PRO MATCH | 9Y6835 |
| PUROLATOR | A72919 |
| PUROLATOR | AF2915 |
| PUROLATOR | AF2916 |
| PUROLATOR | AF2919 |
| QUAKER STATE | QSA573 |
| REFILCO | AF2440 |
| REYTOR | IT115069 |
| RIMPULL | 873159 |
| RIMPULL | XLP182038 |
| RYCO | HDA5069 |
| RYCO | HDA5370 |
| SAKURA | A9217 |
| SANDVIK | 16708059 |
| SCHRAMM | 500005242 |
| SCHRAMM | 50005242 |
| SCHRAMM | 50005252 |
| SDMO | 330560501 |
| SICARD | 10005140 |
| STEWART STEVENSON | 351658 |
| STEWART STEVENSON | 420003 |
| STRUEVER | 3745965 |
| SURE FILTER | SFA0879P |
| TAMROCK | 16708059 |
| TATA | 1203897 |
| TEREX | 6945659 |
| TEREX | 101080 |
| TEREX | 1408439 |
| TEREX | 901727 |
| TEREX | 9059510 |
| TEREX | 9059560 |
| TEREX | 694488 |
| TIM | 3I0919 |
| TIM | 9Y7662 |
| UNIT RIG EQUIPMENT | 901727 |
| UNIT RIG EQUIPMENT | 2003174 |
| UNITED CENTRAL INDUSTRIAL | 687472 |
| UNITED CENTRAL INDUSTRIAL | 687752 |
| UNITED ENGINE LIFE | U15069 |
| VMC | AF182038 |
| VMC | AF181038 |
| VME | 4031216 |
| VME | 40822223 |
| VME | 4082222 |
| VOLVO | 12000204 |
| VOLVO | 40822223 |
| VOLVO | 4082222 |
| WABCO | 4078927 |
| WABCO | PB0687 |
| WABCO | PB1242 |
| WABCO | PB2433 |
| WABCO | TA3537 |
| WABCO | VA0003 |
| WABCO | VS2186 |
| WABCO | VS2188 |
| WALGAHN MOTORENTECHN | 811055 |
| WAUKESHA | P181038 |
| WAUKESHA | 309118 |
| WAUKESHA | 309138 |
| WAUKESHA | 309118A |
| WIRTGEN | 20768 |
| WISEDA LTD | 13011A1 |
| WIX | 42440 |
| WOODGATE | WGA393 |
Machinery & Equipment
| Equipment | Year | Equipment Type | Equipment Options | Engine |
| CATERPILLAR 784C | DUMP TRUCK | 700 SERIES | CATERPILLAR 3512TAE | |
| CATERPILLAR 785C | DUMP TRUCK | 700 SERIES | CATERPILLAR 3512BTA | |
| CATERPILLAR 793 | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516TA | |
| CATERPILLAR 793B | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516B | |
| CATERPILLAR 793C | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516BTA | |
| CATERPILLAR 793D | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516BTA | |
| CATERPILLAR 797 | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516TAE | |
| CATERPILLAR 797B | DUMP TRUCK | 700 SERIES | CATERPILLAR 3524B | |
| EUCLID 1100 | HAUL TRUCK | DETROIT DIESEL 2000 | ||
| EUCLID 404LDC | CONSTRUCTION EQUIPMENT | CUMMINS KTA1150 | ||
| EUCLID CH120 | HAUL TRUCK | CUMMINS VT1710 | ||
| EUCLID R50 | HAUL TRUCK | CUMMINS KTA1150 | ||
| EUCLID R60C | HAUL TRUCK | CUMMINS QSK19 | ||
| EUCLID R60D | HAUL TRUCK | CUMMINS QSK19 | ||
| EUCLID R65C | HAUL TRUCK | CUMMINS QSK19 | ||
| EUCLID R65D | HAUL TRUCK | CUMMINS QSK19 | ||
| HITACHI EH1000 | DUMP TRUCK | CUMMINS QSK19 | ||
| HITACHI EH1100 | HAUL TRUCK | MTU 12V 2000 | ||
| HITACHI EH3000 | HAUL TRUCK | MTU 12V4000 | ||
| HITACHI EH4500 | DUMP TRUCK | DETROIT DIESEL 16V4000 | ||
| HITACHI EH7003 | DUMP TRUCK | DETROIT DIESEL 60 | ||
| HITACHI EX2500 | EXCAVATOR TRACKED | CUMMINS KTA25C | ||
| HITACHI EX2500 | EXCAVATOR TRACKED | CUMMINS KTA50 | ||
| HITACHI EX2500 | EXCAVATOR TRACKED | CUMMINS KTA50 | ||
| HITACHI EX25005 | EXCAVATOR TRACKED | CUMMINS QSK45 | ||
| HITACHI EX55005 | EXCAVATOR TRACKED | CUMMINS QSK45C | ||
| HITACHI EX55006 | EXCAVATOR TRACKED | CUMMINS QSK50 | ||
| HITACHI EX56006 | EXCAVATOR TRACKED | CUMMINS QSK50C | ||
| HITACHI EX80006 | EXCAVATOR TRACKED | EX SERIES | CUMMINS QSK60 | |
| KOMATSU 730E | DUMP TRUCK | KOMATSU SSA16V159 | ||
| KOMATSU HD15007 | DUMP TRUCK | KOMATSU SDA12V160 | ||
| KOMATSU L700 | LOADER | CUMMINS VTA1710 | ||
| KOMATSU PC30006 | EXCAVATOR | KOMATSU SSA12V159 | ||
| KOMATSU PC55006 | EXCAVATOR TRACKED | KOMATSU SSA12V159 | ||
| KOMATSU PC80006 | EXCAVATOR | KOMATSU SSA16V160 | ||
| LECTRA HAUL M12017 | HAUL TRUCK | CUMMINS VTA1710 | ||
| LETOURNEAU L800 | LOADER | CUMMINS KT38 | ||
| TEREX 3311C | HAUL TRUCK | DETROIT DIESEL 16V 92TA | ||
| TEREX 3311D | HAUL TRUCK | DETROIT DIESEL 16V 92TA | ||
| TEREX 3315 | HAUL TRUCK | DETROIT DIESEL 16V 149T | ||
| TEREX 3315B | HAUL TRUCK | DETROIT DIESEL 16V 149T | ||
| UNIT RIG EQUIPMENT M12017 | HAUL TRUCK | LECTRA HAUL | CUMMINS VTA1710 | |
| UNIT RIG EQUIPMENT M12017 | HAUL TRUCK | LECTRA HAUL | CUMMINS VTA1710 |
