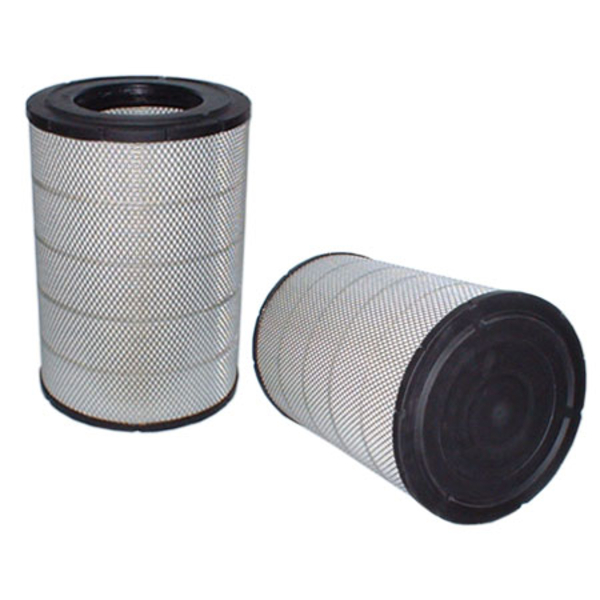

AIR FILTER PRIMARY RADIALSEAL
HF5006
AIR FILTER PRIMARY RADIALSEAL
HF5006
£85.82 exc VAT
In stock
In stock
Order By 2pm for UK Free Next Day Delivery
Orders under £250 Standard Delivery £25 +VAT
Orders over £250 Free Delivery
| Product Specification | |
| Outer Diameter | 281 mm (11.06 inch) |
| Inner Diameter | 150 mm (5.91 inch) |
| Inner Diameter Bottom End | 150 mm (5.91 inch) |
| Length | 405 mm (15.94 inch) |
| Overall Length | 418 mm (16.46 inch) |
| Efficiency Beta 1000 | 99.9% |
| Efficiency Test Standard | ISO IATF 16949 |
| Family | Extreme Protection |
| Type | OEM Quality Air Filter |
| Style | Primary Radial Seal Round |
| Media Type | Cellulose Pleated |
| Notes | Bottom End Closed |
| Notes | Metal Mesh Protection |
| Notes | Safety HF5007 |
| Notes | |
| Primary Application | CATERPILLAR 6I2503 |
OEM Cross Reference
| Manufacturer Name | Manufacturer Part No |
| AGCO | 700727341 |
| AIR REFINER | ARM2503 |
| AMERICAN MOTORS CORP | AE27360 |
| AMERICAN MOTORS CORP | SFA2503P |
| AMERICAN PARTS | 94607 |
| ARDCO | LL847501 |
| ARMA FILT | L2804170 |
| ASAS | HF5006 |
| ASAS FILTER | HF5006 |
| ASTEC UNDERGROUND | AU102525 |
| BALDWIN | RS3506 |
| BALDWIN | RS4561 |
| BALDWIN | RS30285 |
| BIG A | 94607 |
| BLOUNT | 30012464 |
| CARQUEST | 88607 |
| CASE IH | LC11P00018S003 |
| CATERPILLAR | 1327165 |
| CATERPILLAR | 30012464 |
| CATERPILLAR | 612503 |
| CATERPILLAR | 6I2503 |
| CATERPILLAR | 2892348 |
| COOPERS | AEM2682 |
| DITCH WITCH | 5001086 |
| DONALDSON | P532503 |
| DONALDSON | P780331 |
| ELGIN | 5711353 |
| EXMAN | AE27360 |
| EXMAN | SFA2503P |
| FG WILSON | 901056 |
| FIL FILTER | HP2518 |
| FILTRATION LTD | FTA3521 |
| FILTRATION LTD | FTA3629 |
| FLEETGUARD | AF25038M |
| FLEETGUARD | AF25129M |
| FLEETGUARD | AF27840 |
| FORD | 9576P532503 |
| GPC | FC884 |
| GRADALL | 80484117 |
| GRADALL | 80484133 |
| GREYFRIARS | 1590A |
| GROVE | 9304100242 |
| GT PIECES ET SERVICES | 2242217 |
| HASTINGS | AF2202 |
| HAY FORAGE | 700727341 |
| HENGST | E808L |
| HIFI FILTER | SA16015 |
| HIFI FILTER | SA16186 |
| HIFI FILTER | KA160120 |
| HITACHI | YA00007394 |
| HOIST LIFTTRUCK MFC | M13196 |
| HYDREMA | 7100193 |
| IMPERIAL | CV102715 |
| INGERSOLL RAND | 53207478 |
| INLINE FILTER | FA10752 |
| INLINE FILTER | FA10933 |
| JOHN DEERE | F434391 |
| JOHN DEERE | T191321 |
| JOHN DEERE | F435741 |
| KAWASAKI | 309817085 |
| KAWASAKI | 3098170850 |
| KNECHT | LX2008 |
| KOBELCO | 600185D110 |
| KOBELCO | LC11P00018S003 |
| KOBELCO | LC11P00018S003D |
| KOBELCO | LC11P00019S004 |
| KOBELCO | LC11P00052R100 |
| KOBELCO | LC11P00052S006 |
| KOBELCO | P812362 |
| KOBELCO | 84165288 |
| KOMATSU | 42401H0P03 |
| KOMATSU | 42401HOP03 |
| KOMATSU | 6001855100 |
| KOMATSU | 6001855110 |
| KRALINATOR | LA1513 |
| LINK BELT | D7A0466 |
| LOESING | 20427 |
| LUBER FINER | LAF4503 |
| LUBER FINER | LAF4503MXM |
| MAHLE | LX2008 |
| MANITOWOC | 9304100242 |
| MANITOWOC | A110330 |
| MANN HUMMEL | C2810452 |
| MANN HUMMEL | C281045 |
| MISFAT | R473 |
| MITSUBISHI | LE8313003 |
| MITSUBISHI | ME442325 |
| NAPA | 6607 |
| NEW HOLLAND | LP532503 |
| PALLMAN | PFA78033 |
| PALLMAN FILTER | PFA78033 |
| PARKER HANNIFIN | PFA6612 |
| PERKINS | 2652C831 |
| PERKINS | 26526831 |
| PETTIBONE | TJF435741 |
| PUROLATOR | A65003 |
| REYTOR | IT2078 |
| SAKURA | A5558 |
| SAKURA | A5558M |
| SAUER DANFOSS INC | SQC00082 |
| SF FILTER | SL8995 |
| SURE FILTER | SFA2503P |
| TIMBERJACK | F434391 |
| TRP | 1534595 |
| UNITED CENTRAL INDUSTRIAL | 688120 |
| VMC | AF532503 |
| WALGAHN MOTORENTECHN | 811892 |
| WIX FILTER | 46607 |
| WIX FILTER | 49561 |
| WOODGATE | WGA1100 |
Machinery & Equipment
| Equipment | Year | Equipment Type | Equipment Options | Engine |
| CATERPILLAR 235 | EXCAVATOR TRACKED | 200 SERIES | CATERPILLAR 3306 | |
| CATERPILLAR 235C | EXCAVATOR TRACKED | 200 SERIES | CATERPILLAR 3306 | |
| CATERPILLAR 322C | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3126B | |
| CATERPILLAR 324D | EXCAVATOR TRACKED | CATERPILLAR C7 ACERT | ||
| CATERPILLAR 324DL | EXCAVATOR TRACKED | CATERPILLAR C7 ACERT | ||
| CATERPILLAR 324DMHPU | POWER UNIT | CATERPILLAR C7 ACERT | ||
| CATERPILLAR 324E | EXCAVATOR | CATERPILLAR C71 | ||
| CATERPILLAR 325C | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3126B | |
| CATERPILLAR 325CL | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3126B | |
| CATERPILLAR 325CLN | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3126B | |
| CATERPILLAR 325CMHPU | POWER UNIT | 300 SERIES | CATERPILLAR C7 ACERT | |
| CATERPILLAR 325D | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C7 ACERT | |
| CATERPILLAR 325DL | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C7 ACERT | |
| CATERPILLAR 325DMHPU | POWER UNIT | 300 SERIES | CATERPILLAR C7 ACERT | |
| CATERPILLAR 328D | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C7 ACERT | |
| CATERPILLAR 328DLCR | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C7 ACERT | |
| CATERPILLAR 329D | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C7 ACERT | |
| CATERPILLAR 329DL | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C7 ACERT | |
| CATERPILLAR 329EL | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C7.1 ACERT | |
| CATERPILLAR 330B | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3306TA | |
| CATERPILLAR 330BL | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3306TA | |
| CATERPILLAR 330BLN | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3306TA | |
| CATERPILLAR 330C | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C9 | |
| CATERPILLAR 533 | FORESTRY EQUIPMENT | CATERPILLAR 3126 | ||
| CATERPILLAR 543 | FORESTRY EQUIPMENT | CATERPILLAR 3126 | ||
| CATERPILLAR 611 | SCRAPER | CATERPILLAR 3306 | ||
| CATERPILLAR 613C II | SCRAPER | CATERPILLAR 3116 | ||
| CATERPILLAR 632 | TRACTOR | CATERPILLAR 3116 | ||
| CATERPILLAR 814F | DOZER WHEELED | 800 SERIES | CATERPILLAR 3176TAAC | |
| CATERPILLAR 815F | COMPACTOR | 800 SERIES | CATERPILLAR 3176C ATAAC | |
| CATERPILLAR 816F | COMPACTOR | 800 SERIES | CATERPILLAR 3176C ATAAC | |
| CATERPILLAR 938G II | LOADER WHEELED | 900 SERIES | CATERPILLAR 3126BTA1 | |
| CATERPILLAR 950G II | LOADER WHEELED | 900 SERIES | CATERPILLAR 3126BTA4 | |
| CATERPILLAR 962G II | LOADER WHEELED | 900 SERIES | CATERPILLAR 3126BTA4 | |
| CATERPILLAR 966D | LOADER WHEELED | 900 SERIES | CATERPILLAR 3306 | |
| CATERPILLAR 966E | LOADER WHEELED | 900 SERIES | CATERPILLAR 3306 | |
| CATERPILLAR 966F II | LOADER WHEELED | 900 SERIES | CATERPILLAR 3306 | |
| CATERPILLAR 966G | LOADER WHEELED | 900 SERIES | CATERPILLAR 3306 DITA | |
| CATERPILLAR 970F | LOADER WHEELED | 900 SERIES | CATERPILLAR 3306TA | |
| CATERPILLAR 972G | LOADER WHEELED | 900 SERIES | CATERPILLAR 3306TA | |
| CATERPILLAR AP1000B | PAVER | AP SERIES | CATERPILLAR 3116TA | |
| CATERPILLAR AP1000D | PAVER | AP SERIES | CATERPILLAR C71 | |
| CATERPILLAR AP1050B | PAVER | AP SERIES | CATERPILLAR 3116TA | |
| CATERPILLAR AP1055B | PAVER | AP SERIES | CATERPILLAR 3116TA | |
| CATERPILLAR AP1055D | PAVER | AP SERIES | CATERPILLAR C71 | |
| CATERPILLAR AP655C | PAVER | AP SERIES | CATERPILLAR 3056E ATAAC | |
| CATERPILLAR BG2255C | PAVER | BG SERIES | CATERPILLAR 3056 | |
| CATERPILLAR BG2455C | PAVER | BG SERIES | CATERPILLAR 3116TA | |
| CATERPILLAR BG2455D | PAVER | BG SERIES | CATERPILLAR C7 ACERT | |
| CATERPILLAR BG245C | PAVER | BG SERIES | CATERPILLAR 3116TA | |
| CATERPILLAR BG260C | PAVER | BG SERIES | CATERPILLAR 3116TA | |
| CATERPILLAR BG260D | PAVER | BG SERIES | CATERPILLAR C7 ACERT | |
| CATERPILLAR CHALLENGER 65 | TRACTOR | CHALLENGER 65 | ||
| CATERPILLAR CHALLENGER 75 | TRACTOR | CHALLENGER 75 | ||
| CATERPILLAR IT38G II | INTEGRATED TOOL CARRIER | IT SERIES | CATERPILLAR 3126B ATAAC | |
| CATERPILLAR IT62G II | INTEGRATED TOOL CARRIER | IT SERIES | CATERPILLAR 3126B ATAAC | |
| CATERPILLAR M325C | EXCAVATOR WHEELED | M SERIES | CATERPILLAR 3126B ATAAC | |
| CATERPILLAR TK370 | FELLER BUNCHER | CATERPILLAR 3126 | ||
| CATERPILLAR TK380 | FELLER BUNCHER | CATERPILLAR 3126 | ||
| CATERPILLAR W330B | MATERIAL HANDLER | W SERIES | CATERPILLAR 3306TA | |
| FREIGHTLINER FL70 | TRUCK | CATERPILLAR C7 | ||
| JOHN DEERE 200C LC | EXCAVATOR | 200 SERIES | JOHN DEERE 6068H | |
| JOHN DEERE 230C LC | EXCAVATOR | JOHN DEERE 6068H | ||
| JOHN DEERE 270C LC | EXCAVATOR | JOHN DEERE 6068H | ||
| JOHN DEERE 335C | LOADER | JOHN DEERE 6068T | ||
| JOHN DEERE 435C | LOADER | JOHN DEERE 6068T | ||
| JOHN DEERE 435C | LOADER | 400 SERIES | JOHN DEERE 6068T | |
| JOHN DEERE 460DC | SKIDDER | JOHN DEERE 6068H | ||
| JOHN DEERE 460DG | SKIDDER | JOHN DEERE 6068T | ||
| JOHN DEERE 640G III | SKIDDER | JOHN DEERE 6081H | ||
| JOHN DEERE 640G III | SKIDDER | JOHN DEERE 6081H | ||
| JOHN DEERE 648G III | SKIDDER | JOHN DEERE 6081H | ||
| JOHN DEERE 648G III | SKIDDER | JOHN DEERE 6081H | ||
| JOHN DEERE 648G III | SKIDDER | 600 SERIES | JOHN DEERE 6068H | |
| KOBELCO SK250 8 | EXCAVATOR TRACKED | HINO J05E | ||
| KOBELCO SK260 8 | EXCAVATOR TRACKED | HINO J05E | ||
| KOBELCO SK330 | EXCAVATOR TRACKED | HINO J05E | ||
| KOBELCO SK330 | EXCAVATOR TRACKED | HINO J08E | ||
| KOBELCO SK330 8 | EXCAVATOR TRACKED | HINO J08E | ||
| KOBELCO SK330LC8 | EXCAVATOR TRACKED | HINO J08E | ||
| KOBELCO SK330LC8 | EXCAVATOR TRACKED | HINO J05E | ||
| KOBELCO SK350LC8 | EXCAVATOR TRACKED | HINO J05E | ||
| KOBELCO SK350LC8 | EXCAVATOR TRACKED | HINO J08E | ||
| KOMATSU D65EX15 | DOZER TRACKED | KOMATSU SA6D125E3C7L | ||
| KOMATSU D65EX15 | DOZER TRACKED | KOMATSU SA6D125E3C7A | ||
| KOMATSU D65EX15E0 | DOZER TRACKED | KOMATSU SAA6D114E3BWT | ||
| KOMATSU D65EX16 | EXCAVATOR | KOMATSU SAA6D114E3 | ||
| KOMATSU D65PX15 | DOZER TRACKED | KOMATSU SA6D125E3C7A | ||
| KOMATSU D65PX15E0 | DOZER TRACKED | KOMATSU SAA6D114E3BWT | ||
| KOMATSU D65PX16 | EXCAVATOR | KOMATSU SAA6D114E3 | ||
| KOMATSU D65WX15 | DOZER TRACKED | KOMATSU SA6D125E3C7A | ||
| KOMATSU D65WX15E0 | DOZER TRACKED | KOMATSU SAA6D114E3BWT | ||
| KOMATSU D85EX15 | DOZER TRACKED | KOMATSU SA6D125E3B7 | ||
| KOMATSU D85EX15E0 | DOZER TRACKED | KOMATSU SA6D125E3 | ||
| KOMATSU D85PX15 | DOZER TRACKED | KOMATSU SA6D125E3B7 | ||
| KOMATSU D85PX15E0 | DOZER TRACKED | KOMATSU SA6D125E3 | ||
| KOMATSU GD655 3 | GRADER | KOMATSU SAA6D114E2AA | ||
| KOMATSU GD655 3A | GRADER | KOMATSU SAA6D114E2AAVH | ||
| KOMATSU GD655 3C | GRADER | KOMATSU SAA6D114E2AAVH | ||
| KOMATSU GD655 3E0 | GRADER | KOMATSU SAA6D114E3AAW | ||
| KOMATSU GD675 3 | GRADER | KOMATSU SAA6D114E2BBVH | ||
| KOMATSU GD675 3A | GRADER | KOMATSU SAA6D114E2AAVH | ||
| KOMATSU GD675 3A | GRADER | KOMATSU SAA6D114E2BBVH | ||
| KOMATSU GD675 3E0 | GRADER | KOMATSU SAA6D114E3BBW | ||
| KOMATSU HD325 6 | DUMP TRUCK | HD SERIES | KOMATSU SA6D140E1FFG | |
| KOMATSU HD325 6 | DUMP TRUCK | KOMATSU SAA6D140E2A8 | ||
| KOMATSU HD325 6 | DUMP TRUCK | KOMATSU SAA6D140E3A8 | ||
| KOMATSU HD325 7 | DUMP TRUCK | HD SERIES | KOMATSU SAA6D140E5D01 | |
| KOMATSU HD325 7 | DUMP TRUCK | KOMATSU SAA6D140E3 | ||
| KOMATSU HD325 7R | DUMP TRUCK | KOMATSU SAA6D140E5DRW | ||
| KOMATSU HD375 6 | HAUL TRUCK | KOMATSU SAA6D140E5DRW | ||
| KOMATSU PC300 7 | EXCAVATOR TRACKED | KOMATSU SAA6D114E | ||
| KOMATSU PC300HD7 | EXCAVATOR TRACKED | PC SERIES | KOMATSU SAA6D114E | |
| KOMATSU PC300HD7L | EXCAVATOR TRACKED | PC SERIES | KOMATSU SAA6D114E2A | |
| KOMATSU PC300HD7MH | EXCAVATOR TRACKED | PC SERIES | KOMATSU SAA6D114E2A | |
| KOMATSU PC300LC7 | EXCAVATOR | PC SERIES | KOMATSU SAA6D114E | |
| KOMATSU PC300LC7L | EXCAVATOR TRACKED | PC SERIES | KOMATSU SAA6D114E2A | |
| KOMATSU PC300LL7L | EXCAVATOR TRACKED | KOMATSU SAA6D114E2A | ||
| KOMATSU PC300LL7L | EXCAVATOR TRACKED | PC SERIES | KOMATSU SAA6D114E2A | |
| KOMATSU PC340LC7K | EXCAVATOR TRACKED | KOMATSU SAA6D114E2AKU | ||
| KOMATSU PC3507 | EXCAVATOR TRACKED | KOMATSU SAA6D114E2AA | ||
| KOMATSU PC350LC7 | EXCAVATOR TRACKED | KOMATSU SAA6D114E2AA | ||
| KOMATSU PC3607 | EXCAVATOR TRACKED | KOMATSU SAA6D114E | ||
| KOMATSU PC4507K | EXCAVATOR TRACKED | KOMATSU SAA6D125E3K8K | ||
| KOMATSU WA380 5 | LOADER WHEELED | KOMATSU SAA6D114E2BA | ||
| KOMATSU WA380 6 | LOADER WHEELED | WA SERIES | KOMATSU SAA6D107E1DW | |
| KOMATSU WA380 6H | LOADER WHEELED | WA SERIES | KOMATSU SAA6D107E1 | |
| KOMATSU WA400 5 | LOADER WHEELED | KOMATSU SAA6D114E2BA | ||
| KOMATSU WA400 5L | LOADER WHEELED | KOMATSU SAA6D114E2BA | ||
| KOMATSU WA400 5WH | LOADER WHEELED | KOMATSU SAA6D114E2BA | ||
| KOMATSU WA430 6 | LOADER WHEELED | WA SERIES | KOMATSU SAA6D114E2BA | |
| KOMATSU WA450 5L | LOADER WHEELED | WA SERIES | KOMATSU SAA6D125E3A | |
| KOMATSU WA450 6 | LOADER WHEELED | WA SERIES | KOMATSU SAA6D125E5D01 | |
| KOMATSU WA470 5 | LOADER WHEELED | WA SERIES | KOMATSU SAA6D125E5D01 | |
| KOMATSU WA470 6 | LOADER WHEELED | WA SERIES | KOMATSU SAA6D125E5D01 | |
| KOMATSU WA480 5 | LOADER WHEELED | WA SERIES | KOMATSU SAA6D125E3B8W | |
| KOMATSU WA480 6 | LOADER WHEELED | WA SERIES | KOMATSU SAA6D125E3B8W | |
| MANITOWOC 222 | CRANE TRACKED | CUMMINS 6CT83 | ||
| NEW HOLLAND E385B | EXCAVATOR TRACKED | E SERIES | HINO J08EUV | |
| NEW HOLLAND E385C | EXCAVATOR TRACKED | E SERIES | HINO J08EUV |
