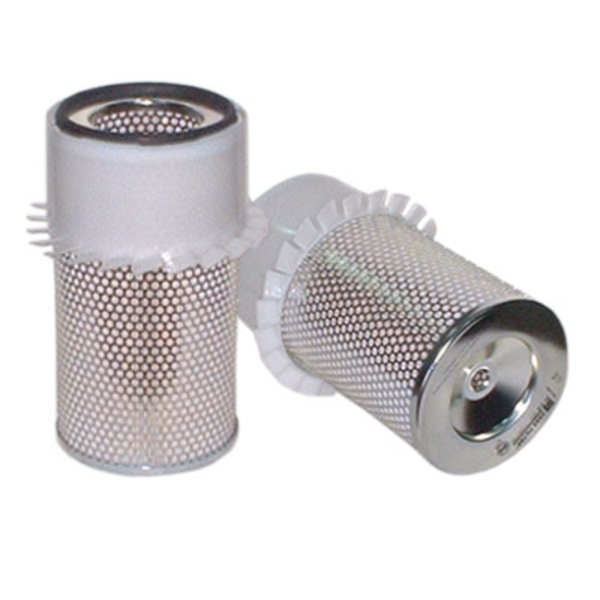

AIR FILTER PRIMARY ROUND FINNED
HF536
AIR FILTER PRIMARY ROUND FINNED
HF536
£60.53 exc VAT
In stock
In stock
Order By 2pm for UK Free Next Day Delivery
Orders under £150 Standard Delivery £15 +VAT
Orders over £150 Free Delivery
| Product Specification | |
| Outer Diameter Top End | 132.5 mm (5.22 inch) |
| Outer Diameter Finned | 158 mm (6.22 inch) |
| Inner Diameter | 86 mm (3.39 inch) |
| Inner Diameter Bolt Hole | 17 mm (0.67 inch) |
| Length | 278 mm (10.95 inch) |
| Overall Length | 286 mm (11.26 inch) |
| Efficiency Beta 1000 | 99.9% |
| Efficiency Test Standard | ISO IATF 16949 |
| Family | Extreme Protection |
| Type | OEM Quality Air Filter |
| Style | Primary Round Finned |
| Media Type | Cellulose Pleated |
| Notes | Bottom End Closed |
| Notes | Metal End Caps |
| Notes | Metal Mesh Protection |
| Notes | Check Dimensions of HF436 |
| Primary Application | KOMATSU 6008117300 |
OEM Cross Reference
| Manufacturer Name | Manufacturer Part No |
| AIR REFINER | ARM3125 |
| AMERICAN MOTORS CORP | AF18620 |
| AMERICAN MOTORS CORP | SF6615PF |
| AMERICAN MOTORS CORP | 837A |
| AMERICAN MOTORS CORP | AE22040 |
| AMERICAN MOTORS CORP | SFA7300PF |
| AMERICAN PARTS | 94374 |
| ASAS | HF536 |
| ASAS FILTER | HF436 |
| BALDWIN | PA3671FN |
| BALDWIN | PA2846FN |
| BIG A | 94374 |
| BIG A | 94394 |
| BIG A | 94389 |
| CASE IH | 1265510C1 |
| CATERPILLAR | 971293 |
| CATERPILLAR | 3I0269 |
| COOPERS | AEK2584 |
| DENYO | 602040197 |
| DONALDSON | P776615 |
| DONALDSON | P522449 |
| EXMAN | AF18620 |
| EXMAN | SFA6615PF |
| EXMAN | 837A |
| EXMAN | AE22040 |
| EXMAN | SFA7300PF |
| FLEETGUARD | AF25720K |
| FLEETGUARD | AF4743K |
| FLEETGUARD | AF25456K |
| FODEN | Y05770201 |
| FREIGHTLINER | DNP522449 |
| GPC | FC3221 |
| GPC | FC3221K |
| GREYFRIARS | 1371AF |
| HIFI | SA14693K |
| HIFI | SA18837 |
| HYUNDAI | 11S120110 |
| HYUNDAI | 11S120111 |
| INTERNATIONAL | 1265510C1 |
| KOBELCO | 2451U1543N |
| KOMATSU | 6001817260 |
| KOMATSU | 6001817300 |
| KOMATSU | 6001817600 |
| KOMATSU | 6008117300 |
| KOMATSU | Z761817260 |
| KRALINATOR | LA1399F |
| KRALINATOR | LA1072F |
| LOESING | 22051 |
| LOESING | 20122 |
| LUBER FINER | LAF1907 |
| LUBER FINER | LAF8639 |
| MANITOU | 178032300171M |
| MANN HUMMEL | C141661 |
| MITSUBISHI | 9146111500 |
| ORENSTEIN KOPPEL | 1461657 |
| PALLMAN | PFA77661 |
| PALLMAN FILTER | PFA77661 |
| PARKER HANNIFIN | PA3671FN |
| PUROLATOR | A45159 |
| REFILCO | AF22220 |
| SAKURA | AS1168 |
| SAMSUNG | 601311040S |
| SF FILTER | SL81185 |
| SF FILTER | SL8101 |
| SOFILTRA | 12361200 |
| SURE FILTER | SFA6615PF |
| TCM | 214A202711 |
| TOYOTA | 178032300071 |
| TOYOTA | 178032300171M |
| TOYOTA | 17803F980171 |
| TOYOTA | 17804F980171 |
| TOYOTA | 1780323000 |
| TOYOTA | 178033300171 |
| TOYOTA | 1000493TOY |
| TRP | 1534863 |
| UNITED CENTRAL INDUSTRIAL | 687912 |
| VIRGIS | CH12688 |
| VMC | AF776615 |
| VMC | AF522449 |
| WALGAHN MOTORENTECHN | 811233 |
| WIX | 46389 |
| WIX | 46374 |
| WOODGATE | WGA494K |
Machinery & Equipment
| Equipment | Year | Equipment Type | Equipment Options | Engine |
| CASE IH 380B | TRACTOR | CASE IH D155 | ||
| CASE IH 385 | TRACTOR | 300 SERIES | CASE IH D155 | |
| CASE IH 395 | TRACTOR | 300 SERIES | CASE IH D155 | |
| CASE IH 485 | TRACTOR | CASE IH D179 | ||
| CASE IH 485XL | TRACTOR | 400 SERIES | CASE IH D179 | |
| CASE IH 495 | TRACTOR | CASE IH D179 | ||
| CASE IH 495XL | TRACTOR | 400 SERIES | KUBOTA V2203 | |
| CASE IH 560 | TRENCHER | KUBOTA V2203 | ||
| CASE IH 584 | TRACTOR | 500 SERIES | CASE IH D206 | |
| CASE IH 585 | TRACTOR | 500 SERIES | CASE IH D206 | |
| CASE IH 585XL | TRACTOR | CASE IH D206 | ||
| CASE IH 595 | TRACTOR | CASE IH D206 | ||
| CASE IH 595XL | TRACTOR | CUMMINS 4B3.9 | ||
| CASE IH 660 | TRENCHER | CUMMINS 4B3.9 | ||
| CASE IH 685L | TRACTOR | CASE IH D239 | ||
| CASE IH 695 | TRACTOR | CASE IH D239 | ||
| CASE IH 785XL | TRACTOR | CASE IH D239 | ||
| CASE IH 795XL | TRACTOR | 700 SERIES | CASE IH D239 | |
| CASE IH 884 | TRACTOR | 800 SERIES | CASE IH D239 | |
| KOMATSU 10HQ2 | EXCAVATOR | KOMATSU 4D94 | ||
| KOMATSU 10HT | EXCAVATOR | KOMATSU 4D94 | ||
| KOMATSU 10HW2 | EXCAVATOR TRACKED | KOMATSU 4D94 | ||
| KOMATSU D205 | DOZER TRACKED | KOMATSU 4D942 | ||
| KOMATSU D206 | DOZER TRACKED | KOMATSU 4D95S | ||
| KOMATSU D207 | DOZER TRACKED | KOMATSU 4D95S | ||
| KOMATSU D20A5 | DOZER TRACKED | KOMATSU 4D942N | ||
| KOMATSU D20A6 | DOZER TRACKED | KOMATSU 4D95SW1FT | ||
| KOMATSU D20A6 | DOZER TRACKED | KOMATSU 4D95SW1FA | ||
| KOMATSU D20A7 | DOZER TRACKED | KOMATSU 4D95S1H | ||
| KOMATSU D20P5 | DOZER TRACKED | KOMATSU 4D95-2N | ||
| KOMATSU D20P6 | DOZER TRACKED | KOMATSU 4D95SW1FT | ||
| KOMATSU D20P6 | DOZER TRACKED | KOMATSU 4D95SW1FP | ||
| KOMATSU D20P7A | DOZER TRACKED | KOMATSU 4D95S1H | ||
| KOMATSU D20PL5 | DOZER TRACKED | KOMATSU 4D94 | ||
| KOMATSU D20Q5 | DOZER TRACKED | KOMATSU 4D95-2N | ||
| KOMATSU D20Q6 | DOZER TRACKED | KOMATSU 4D95SW1FQ | ||
| KOMATSU D20S5 | DOZER TRACKED | KOMATSU 4D942N | ||
| KOMATSU D215 | DOZER TRACKED | KOMATSU 4D942 | ||
| KOMATSU D216 | DOZER TRACKED | KOMATSU 4D95SW1F | ||
| KOMATSU D21A5 | DOZER TRACKED | KOMATSU 4D94 | ||
| KOMATSU D21A6 | DOZER TRACKED | KOMATSU 4D95SW1GA | ||
| KOMATSU D21A6 | DOZER TRACKED | KOMATSU 4D95SW1GT | ||
| KOMATSU D21A7 | DOZER TRACKED | KOMATSU 4D95S1J | ||
| KOMATSU D21E6 | DOZER TRACKED | KOMATSU 4D95SW1GE | ||
| KOMATSU D21P5 | DOZER TRACKED | KOMATSU 4D942P | ||
| KOMATSU D21P6 | DOZER TRACKED | KOMATSU 4D95SW1GP | ||
| KOMATSU D21P6 | DOZER TRACKED | KOMATSU 4D95SW1GT | ||
| KOMATSU D21PL5 | DOZER TRACKED | KOMATSU 4D94 | ||
| KOMATSU D21Q5 | DOZER TRACKED | KOMATSU 4D94 | ||
| KOMATSU D21S5 | DOZER TRACKED | KOMATSU 4D942P | ||
| KOMATSU EC35V3 | COMPRESSOR | KOMATSU 4D942 | ||
| KOMATSU EC35Z1 | COMPRESSOR | KOMATSU 3D942 | ||
| KOMATSU EG30S | GENERATOR SET | KOMATSU 4D942 | ||
| KOMATSU EG33B | GENERATOR SET | KOMATSU 4D95L | ||
| KOMATSU EG40B | GENERATOR SET | KOMATSU 4D95L1 | ||
| KOMATSU FD60E | FORKLIFT | FD SERIES | KOMATSU 4D105 | |
| KOMATSU FD70 | FORKLIFT | DX SERIES | KOMATSU 4D105 | |
| KOMATSU FG25S | FORKLIFT | FG SERIES | ISUZU GL201 | |
| KOMATSU FG35 | FORKLIFT | FG SERIES | ISUZU DA120220 | |
| KOMATSU FG45 | FORKLIFT | FG SERIES | KOMATSU P40 | |
| KOMATSU PC041 | EXCAVATOR TRACKED | KOMATSU 2D941 | ||
| KOMATSU PC041 | EXCAVATOR TRACKED | KOMATSU 2D942 | ||
| KOMATSU PC071 | EXCAVATOR TRACKED | KOMATSU 2D942 | ||
| KOMATSU PC101 | EXCAVATOR TRACKED | KOMATSU 2D942 | ||
| KOMATSU PC401 | EXCAVATOR TRACKED | KOMATSU 4D842A | ||
| KOMATSU PC401 | EXCAVATOR COMPACT | KOMATSU 3D942 | ||
| KOMATSU PC402 | EXCAVATOR COMPACT | KOMATSU 3D942 | ||
| KOMATSU PC403 | EXCAVATOR COMPACT | KOMATSU 3D942 | ||
| KOMATSU PC406 | EXCAVATOR COMPACT | KOMATSU 3D95SW1 | ||
| KOMATSU PC50UU1 | EXCAVATOR TRACKED | KOMATSU 3D95SW1 | ||
| KOMATSU PC50UU1 | EXCAVATOR TRACKED | KOMATSU 3D95SW1D | ||
| KOMATSU PC60 | EXCAVATOR TRACKED | KOMATSU 4D942 | ||
| KOMATSU PC601 | EXCAVATOR TRACKED | KOMATSU 4D942 | ||
| KOMATSU PC602 | EXCAVATOR TRACKED | KOMATSU 4D943 | ||
| KOMATSU PC603 | EXCAVATOR TRACKED | KOMATSU 4D95L | ||
| KOMATSU PC603 | EXCAVATOR TRACKED | KOMATSU 4D95L1C | ||
| KOMATSU PC605 | EXCAVATOR TRACKED | KOMATSU 4D95L1 | ||
| KOMATSU PC605 | EXCAVATOR TRACKED | KOMATSU 4D95L1K | ||
| KOMATSU PC606 | EXCAVATOR TRACKED | KOMATSU 4D95L1 | ||
| KOMATSU PC607 | EXCAVATOR TRACKED | KOMATSU 4D95LE2A | ||
| KOMATSU PC607 | EXCAVATOR | KOMATSU 4D95LE | ||
| KOMATSU PC608 | EXCAVATOR | KOMATSU SAA4D95LE5 | ||
| KOMATSU PC60L1 | EXCAVATOR TRACKED | KOMATSU 4D942 | ||
| KOMATSU PC60L2 | EXCAVATOR TRACKED | KOMATSU 4D943 | ||
| KOMATSU PC60L3 | EXCAVATOR TRACKED | KOMATSU 4D95L1C | ||
| KOMATSU PC60U1 | EXCAVATOR TRACKED | KOMATSU 4D942 | ||
| KOMATSU PC60U3 | EXCAVATOR TRACKED | KOMATSU 4D95L1C | ||
| KOMATSU PC60U5 | EXCAVATOR TRACKED | KOMATSU 4D95L1C | ||
| KOMATSU PC708 | EXCAVATOR | KOMATSU 4D95LE5 | ||
| KOMATSU PC80 | EXCAVATOR TRACKED | KOMATSU 4D95L1L | ||
| KOMATSU PC803 | EXCAVATOR TRACKED | KOMATSU 4D95L1 | ||
| KOMATSU PC80LC3 | EXCAVATOR TRACKED | KOMATSU 4D95L1 | ||
| KOMATSU PF505 | EXCAVATOR | KOMATSU 4D942 | ||
| KOMATSU PF507 | EXCAVATOR | KOMATSU 4D942 | ||
| KOMATSU PW601 | EXCAVATOR WHEELED | KOMATSU 4D942 | ||
| KOMATSU PW603 | EXCAVATOR WHEELED | KOMATSU 4D95L1 | ||
| KOMATSU PW60N1 | EXCAVATOR WHEELED | KOMATSU 4D942 | ||
| KOMATSU SK071 | SKID STEER LOADER | KOMATSU 2D942 | ||
| KOMATSU SW20 | LOADER WHEELED | SW SERIES | ISUZU DA220 | |
| KOMATSU WA301 | LOADER WHEELED | KOMATSU 2D942 | ||
| KOMATSU WA401 | LOADER WHEELED | KOMATSU 4D95LW1A | ||
| KOMATSU WA401 | LOADER WHEELED | KOMATSU 4D95L1 | ||
| KOMATSU WA701 | LOADER WHEELED | KOMATSU 4D95LW1B | ||
| TOYOTA 02DT20 | FORKLIFT | TOYOTA 1DZ | ||
| TOYOTA 02TD20 | FORKLIFT | TOYOTA 4Y | ||
| TOYOTA 02TG20 | FORKLIFT | TOYOTA 1DZ | ||
| TOYOTA 02TG20 | FORKLIFT | TOYOTA 4Y | ||
| TOYOTA 18 | FORKLIFT | TOYOTA 1DZ | ||
| TOYOTA 18 | FORKLIFT | TOYOTA 4Y | ||
| TOYOTA 23 | FORKLIFT | TOYOTA 1DZ |
