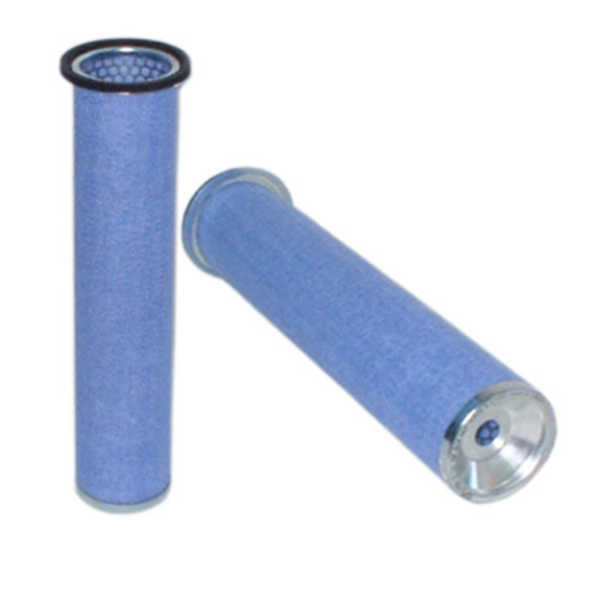

AIR FILTER SAFETY ROUND
HF540
AIR FILTER SAFETY ROUND
HF540
£29.66 exc VAT
In stock
In stock
Order By 2pm for UK Free Next Day Delivery
Orders under £150 Standard Delivery £15 +VAT
Orders over £150 Free Delivery
| Product Specification | |
| Outer Diameter Top Rim | 105 mm (4.13 inch) |
| Outer Diameter | 86 mm (3.39 inch) |
| Inner Diameter | 73 mm (2.87 inch) |
| Inner Diameter Bottom End | 17 mm (0.67 inch) |
| Length | 253 mm (9.96 inch) |
| Overall Length | 255 mm (10.04 inch) |
| Efficiency Beta 1000 | 99.9% |
| Efficiency Test Standard | ISO IATF 16949 |
| Family | Extreme Protection |
| Type | OEM Quality Air Filter |
| Style | Safety Radial Seal Round |
| Media Type | Cellulose Pleated |
| Notes | Bottom End Closed |
| Notes | Metal Mesh Protection |
| Notes | Primary HF519 |
| Primary Application | CASE IH 3125255R1 |
OEM Cross Reference
| Manufacturer Name | Manufacturer Part No |
| AC DELCO | A1449C |
| AGCO | 1096469M91 |
| AIR REFINER | ARM124767 |
| AIR REFINER | ARM5255 |
| ALCO | MD7498 |
| AMERICAN MOTORS CORP | SFA6469S |
| AMERICAN PARTS | 93478 |
| ARGO | 24P124767 |
| ARGO | 1096469M91 |
| ASAS | HF540 |
| ASAS FILTER | HF540 |
| BALDWIN | PA2689 |
| BALDWIN | PA2969 |
| BELL | 200067 |
| BELL | 220067 |
| BEPCO GROUP LTD | 16217 |
| BIG A | 93478 |
| BIG A | 94346 |
| CARQUEST | 88346 |
| CASE IH | 3125255R1 |
| CASE IH | 3039892R |
| CATERPILLAR | 3I0186 |
| CLARCOR UK | FSA0320 |
| CLARCOR UK | FSA0416 |
| CLARCOR UK | FSA1000 |
| CLARK | C3802818 |
| COOPERS | AZA347T |
| COOPERS | AZA347 |
| CROSLAND | 9778 |
| DEZZI | 350011 |
| DONALDSON | P124767 |
| DONALDSON | P775373 |
| DRESSER | 1219796H1 |
| DYNAPAC | 499510 |
| DYNAPAC | 4700499510 |
| ENGINE DISTRIBUTORS INC | P124797 |
| EXMAN | SFA6469S |
| FERMEL | 47500402 |
| FILTREL | FMA416T |
| FLEETGUARD | AF4818 |
| FLEETRITE | AFR84818 |
| FLEETRITE | AFR84882 |
| FODEN | Y05766706 |
| FRAM | CA6920SY |
| GENERAL MOTORS GM | 25177184 |
| GFF | AF254075F |
| GPC | FC577 |
| GRAINER | 4RGE3 |
| GREYFRIARS | 1359A |
| GREYFRIARS | 1370A |
| GUD | ADG595 |
| GUD | ADG596 |
| HASTINGS | AF2084 |
| HEAVY DUTY AIR | HDA4767 |
| HIFI | SA16146 |
| HITACHI | 3802818 |
| IMPERIAL | CV129483 |
| INGERSOLL RAND | 59920421 |
| INTERNATIONAL | 3125255R1 |
| JCB | 32903202 |
| JCB | 32906802 |
| JCB | 32906802A |
| JIMCO | JAE88166 |
| JOHN DEERE | PE79011285 |
| JOHNSTON SWEEPERS | 756953 |
| JOHNSTON SWEEPERS | Z756953 |
| KOMATSU | 1219796 |
| KOMATSU | 1219796H1 |
| KOMATSU | 304860 |
| KOMDRESCO SA | 304860 |
| KRALINATOR | LA1267 |
| KRALINATOR | LA1746 |
| LOESING | 20342 |
| LUBER FINER | LAF1971 |
| M.D.F. SARL | MDA1088 |
| MANN HUMMEL | CF950 |
| MASSEY FERGUSON | 1096469M91 |
| MASSEY FERGUSON | 3125931M1 |
| MASSEY FERGUSON | 3561805M1 |
| MCCORMICK | MC3125255R1 |
| METSO | 499510 |
| MISFAT | R782 |
| NAPA GOLD | 6346 |
| NELSON | 70837N |
| NELSON WILSON | 70837 |
| NELSON WILSON | 70837N |
| NEW HOLLAND | NPN00172 |
| NISSAN UD TRUCKS | 16546C4767 |
| NISSAN UD TRUCKS | L0002468 |
| PALLMAN | PFA12476 |
| PALLMAN FILTER | PFA12476 |
| PARKER HANNIFIN | PA2689 |
| PBR | AI3419 |
| RYCO | HDA5907 |
| SAKURA | A7968 |
| SAKURA | A5418S |
| SAMCOR PRETORIA | PFA908 |
| SAMCOR PRETORIA | SFA129 |
| SF FILTER | SL8147 |
| SF FILTER | SL8445 |
| SF FILTER | SL8485 |
| SF FILTER | SL8869 |
| SPAREX | S108953 |
| SPAREX | S57872 |
| SPAREX | S76744 |
| SURE FILTER | SFA6469S |
| TECHNICAL FILTRATION | BSA138 |
| TECHNICAL FILTRATION | BSA4882 |
| TIM | 3I0186 |
| TOYOTA | 1780105557 |
| TOYOTA | T1780105551 |
| TOYOTA | 1780105551 |
| TRP | 1535026 |
| UFI | 2705400 |
| UNICO | AS10255 |
| VAPORMATIC | VPD7096 |
| VAPORMATIC | VPD7037 |
| VIBRO | 499510 |
| VMC | AF124767 |
| WIX | 46346 |
| WIX | 546346 |
| WOODGATE | WGA204S |
| ZETOR | 53011905 |
| ZETOR | 79011285 |
Machinery & Equipment
| Equipment | Year | Equipment Type | Equipment Options | Engine |
| CASE IH 3220 | TRACTOR | 3000 SERIES | CASE IH D246 | |
| CASE IH 4220 | TRACTOR | 4000 SERIES | CASE IH D246 | |
| CASE IH 4240 | TRACTOR | 4000 SERIES | CASE IH D268T | |
| CASE IH 884 | TRACTOR | 800 SERIES | CASE IH D268T | |
| CASE IH 895 | TRACTOR | 100 SERIES | CASE IH D268 | |
| CASE IH 995 | TRACTOR | CASE IH DT268 | ||
| JCB 50636 | TELEHANDLER | PERKINS 1004.4HR | ||
| JCB 506B | TELEHANDLER | LOADALL | PERKINS 1004.4HR | |
| JCB 506C | TELEHANDLER | PERKINS 1004.4HR | ||
| JCB 50840 | TELEHANDLER | PERKINS 1004.4HR | ||
| JOHN DEERE 2300 | TRACTOR | 2000 SERIES | ZETOR 7701 |
