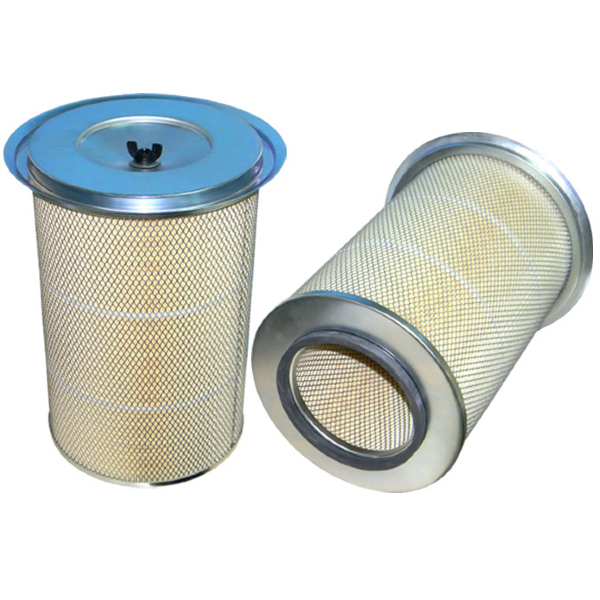

AIR FILTER PRIMARY ROUND
HF697
AIR FILTER PRIMARY ROUND
HF697
£62.34 exc VAT
In stock
In stock
Order By 2pm for UK Free Next Day Delivery
Orders under £250 Standard Delivery £25 +VAT
Orders over £250 Free Delivery
| Product Specification | |
| Outer Diameter Top End Flange | 213 mm (8.39 inch) |
| Outer Diameter | 154 mm (6.06 inch) |
| Inner Diameter | 88 mm (3.46 inch) |
| Inner Diameter Bolt Hole | 17 mm (0.67 inch) 7/16”x20 |
| Length | 331 mm (13.03 inch) |
| Overall Length | 341 mm (13.43 inch) |
| Efficiency Beta 1000 | 99.9% |
| Efficiency Test Standard | ISO IATF 16949 |
| Family | Extreme Protection |
| Type | OEM Quality Air Filter |
| Style | Primary Round |
| Media Type | Cellulose Pleated |
| Notes | Bottom End Closed |
| Notes | Metal Mesh Protection |
| Notes | Safety HF689 |
| Notes | |
| Primary Application | CASE IH 1931168 |
OEM Cross Reference
| Manufacturer Name | Manufacturer Part No |
| ASAS | HF697 |
| ASAS FILTER | HF697 |
| BALDWIN | PA5388 |
| CARQUEST | 93551 |
| CASE IH | 1931168 |
| CASE IH | 1930605 |
| DEUTZ | 1021730 |
| DEUTZ | 1399790 |
| DEUTZ FAHR | 1021730 |
| DEUTZ FAHR | 1399790 |
| DONALDSON | P778702 |
| FAMEL | FR1126 |
| FIAT | 1930605 |
| FIL | HP4539 |
| FLEETGUARD | AF25342 |
| GPC | FC830 |
| GRAINGER | 4ZWA1 |
| HIFI | SA16225 |
| HUERLIMANN TRACTORS | 1021730 |
| KHD | 1021730 |
| KHD | 1399790 |
| LAMBORGHINI | 1021730 |
| MANN HUMMEL | C22025 |
| MDF SARL | MDA2902 |
| NEW HOLLAND | 1930605 |
| OLSSONS I ELLOS AB | F1930605 |
| PACCAR | Y05997405 |
| PALLMAN | PFA78702 |
| PALLMAN FILTER | PFA78702 |
| PARKER HANNIFIN | PA5388 |
| SAKURA | A45200 |
| SAME | 1021730 |
| SAME | 1399790 |
| SF FILTER | SL6406 |
| SPAREX | S108767 |
| SPAREX | S119443 |
| SPAREX | S62535 |
| SURE FILTER | SFA1168P |
| TECFIL | AP8605 |
| VAPORMATIC | VPD7317 |
| VMC | AF778702 |
| VOX | HP8609 |
| WYTWORNIA FILTER | WA30670 |
Machinery & Equipment
| Equipment | Year | Equipment Type | Equipment Options | Engine |
| CASE IH JX90U | TRACTOR | JX SERIES | CASE IH JX90U | |
| CASE IH JX95 | TRACTOR | JX SERIES | CASE IH JX95 | |
| HUERLIMANN XT105 | TRACTOR | XT SERIES | CASE IH JX105 | |
| HUERLIMANN XT95 | TRACTOR | PERKINS 1000.4WT8 | ||
| NEW HOLLAND 100 | TRACTOR | IVECO 8045.25 | ||
| NEW HOLLAND 95 | TRACTOR | IVECO 8045.25 |
