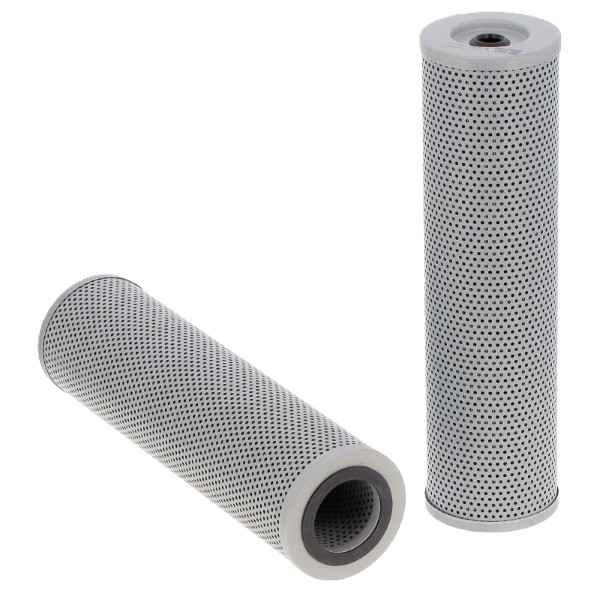

Hydraulic Filter Cartridge
PFH10095
Hydraulic Filter Cartridge
PFH10095
£66.75 exc VAT
In stock
In stock
Order By 2pm for UK Free Next Day Delivery
Orders under £250 Standard Delivery £25 +VAT
Orders over £250 Free Delivery
| Product Specification | |
| Outer Diameter | 111 mm (4.37 inch) |
| Inner Diameter | 62 mm (2.44 inch) |
| Inner Diameter Bottom End | 19 mm (0.75 inch) |
| Length | 407 mm (16.02 inch) |
| Overall Length | 408 mm (16.06 inch) |
| Collapse Burst | 6.9 bar 100 psi |
| Efficiency 99.5% Beta 200 | 12 micron |
| Efficiency 99.9% Beta 1000 | 23 micron |
| Efficiency Test Standard | ISO IATF 16949 |
| Type | OEM Quality Hydraulic Filter |
| Style | Hydraulic Cartridge |
| Media Type | Synthetic Pleated |
| Notes | Bottom End Closed |
| Notes | Nitrile Butadiene Rubber |
| Notes | Metal End Caps |
| Notes | |
| Primary Application | Ingersoll Rand 265226309 |
OEM Cross Reference
| Manufacturer Name | Manufacturer Part Number |
| Ac Delco | PF1159 |
| Ac Delco | PF1284 |
| Ac Delco | PF2184 |
| Agco | 74853388 |
| Air Maze | ARH160116 |
| Air Maze | ARH160216 |
| Air Refiner | ARH160116 |
| Air Refiner | ARH160166 |
| Air Refiner | ARH160216 |
| Air Refiner | ARH160470 |
| Allis Chalmers | 4853388 |
| Allis Chalmers | 74853388 |
| Amazon | B002M5T00W |
| American Parts | 92529 |
| American Parts | 92540 |
| American Parts | 92543 |
| American Parts | 92544 |
| Asas | AS95H |
| Asas Filter | AS95H |
| Atlas Copco | 52263183 |
| Atlas Copco | 2652263183 |
| Badger | 76102474 |
| Baldwin | PT694 |
| Baldwin | PT763 |
| Baldwin | PT767 |
| Baldwin | PT9340MPG |
| Barko Hydraulics | 52050 |
| Big A | 92439 |
| Big A | 92527 |
| Big A | 92529 |
| Big A | 92540 |
| Big A | 92543 |
| Big A | 92544 |
| Big A | 92529 |
| Big A | 92850 |
| Big A | 92540 |
| Bomag | 31005666 |
| Buhler Versatile | 63297 |
| Carbocol | 9437100156 |
| Carquest | 85529 |
| Carquest | 85540 |
| Carquest | 85544 |
| Case International Harvest | 104929 |
| Case International Harvest | 105892 |
| Case International Harvest | 116428 |
| Case International Harvest | S104929 |
| Case International Harvest | S105892 |
| Case International Harvest | S116428 |
| Case International Harvest | V63297 |
| Caterpillar | 310451 |
| Caterpillar | 310457 |
| Caterpillar | 310468 |
| Caterpillar | 310469 |
| Caterpillar | 3I0457 |
| Caterpillar | 3I0468 |
| Caterpillar | 3I0469 |
| Caterpillar | 3I0473 |
| Caterpillar | 3I0482 |
| Caterpillar | 3I0487 |
| Caterpillar | 3I0629 |
| Caterpillar | 3I1913 |
| Caterpillar | 3I0453 |
| Caterpillar | 3I0451 |
| Chardonnet | 7216061600 |
| Chardonnet | 7216047000 |
| Consolidated Pneumatic | FPS333011 |
| Coopers | HEM6038 |
| Deutz | 74853388 |
| Donaldson | P160116 |
| Donaldson | P164699 |
| Donaldson | P166597 |
| Doosan | 52263183 |
| Dresser | 129748 |
| Epiroc | 2652263183 |
| Euclid | 9066151 |
| Famel | FA202H |
| Famel | FA222H |
| Famel | FA275H |
| Fiat Allis | 4853388 |
| Fiat Allis | 74853388 |
| Filtration Ltd | FTH7121 |
| Fleetguard | HF35277 |
| Fleetguard | HF35279 |
| Fleetguard | HF6199 |
| Fleetguard | HF6287 |
| Fleetguard | HF6290 |
| Fleetguard | HF35021 |
| Fleetrite | HFR835277 |
| Fleetrite | HFR86199 |
| Fleetrite | HFR86287 |
| Fleetrite | HFR86288 |
| Fleetrite | HFR86474 |
| Fluitek | FLK0219446 |
| Fluitek | P441610QX |
| Fmc | 3J8075 |
| Ford | 31P0146 |
| Ford | 9576P160216 |
| Ford | 9576P160516 |
| Ford | 9576P161571 |
| Ford | 9576P164699 |
| Ford | 9576P160116 |
| Frank J Zamboni | 3R1750W |
| Frank J Zamboni | 3R1750L |
| Galion | D129748 |
| Galion | 1245424H1 |
| Gardner Denver | 2109086 |
| Gardner Denver | 2109094 |
| Gardner Denver | 2109600 |
| Gardner Denver | 2109660 |
| Gardner Denver | 2117092 |
| Gardner Denver | 5840396 |
| Gardner Denver | 5991132 |
| Gardner Denver | 2109660 |
| Gardner Denver | 2109600 |
| General Motors Corporation | 25012430 |
| Gff | HFE9075 |
| Gradall | 76102474 |
| Gradall | 77133069 |
| Gradall | 90202212 |
| Grainger | 4ZUA3 |
| Grainger | 4ZUA4 |
| Greyfriars | GHF7114 |
| Grove | 1004512 |
| Grove | 7437000175 |
| Grove | 7437000176 |
| Grove | 7437000177 |
| Grove | 9437100156 |
| Grove | 9437100249 |
| Grove | 9437100156 |
| Grove | P160116 |
| Hastings | HF750 |
| Hastings | HF842 |
| Hastings | PT767 |
| Havam | HD8730 |
| Havam | HD8750 |
| Havam | HD8780 |
| Hein Werner | 452850 |
| Hifi Filter | SH56337 |
| Hifi Filter | SH56347 |
| Hifi Filter | SH66132 |
| Hifi Filter | SH66597 |
| Hitachi Construction Equipment | 4853388 |
| Hitachi Construction Equipment | 74853388 |
| Hyster | 256226 |
| Ingersoll Rand | 25295427 |
| Ingersoll Rand | 2652263183 |
| Ingersoll Rand | 34330125 |
| Ingersoll Rand | 35251040 |
| Ingersoll Rand | 35290162 |
| Ingersoll Rand | 35295427 |
| Ingersoll Rand | 35330125 |
| Ingersoll Rand | 35997352 |
| Ingersoll Rand | 38480265 |
| Ingersoll Rand | 50469048 |
| Ingersoll Rand | 50469048 |
| Ingersoll Rand | 50693886 |
| Ingersoll Rand | 52263183 |
| Ingersoll Rand | 56920101 |
| Ingersoll Rand | 56945512 |
| Ingersoll Rand | P166597 |
| Inline Filter | FH58925 |
| Joy | 1816389 |
| Joy | 7017010321 |
| Joy | 1816389 |
| Kalmar | 74853388 |
| Koehring | 31005666 |
| Koehring | 853531241 |
| Kralinator | L411 |
| Kralinator | L415 |
| Kralinator | L420 |
| Kralinator | L429 |
| Kralinator | L434 |
| Kralinator | L447 |
| Kralinator | L415 |
| Kralinator | L411 |
| Kralinator | L429 |
| Leroi | 438451 |
| Letourneau | 4068356 |
| Link Belt | 31P0146 |
| Loesing | 20767 |
| Loesing | 21718 |
| Loesing | 21091 |
| Loesing | 21083 |
| Luber Finer | LH4903 |
| Mack | 5839HF35277 |
| Manitowoc | 1004512 |
| Marine Travelift Incorporation | 1004512 |
| Mc Cormick | 104929 |
| Mc Cormick | 105892 |
| Mc Cormick | 116428 |
| Minnpar | H0050262 |
| Nacco Materials | 256226 |
| Napa Gold | 1529 |
| Napa Gold | 1540 |
| Napa Gold | 1544 |
| New Holland | 51036002 |
| New Holland | 51036006 |
| New Holland | 74853388 |
| New Holland | 31P0146 |
| New Holland | V63297 |
| Old Dominion | D1004362 |
| Orenstein Koppel | 1448900 |
| Orenstein Koppel | 1448990 |
| Pallman | PFH10095 |
| Pallman Filter | PFH10095 |
| Pettibone | 68076 |
| Pettibone | 68076000 |
| Raygo | 218341 |
| Raygo | 218341 |
| Robbins | 1816562 |
| Ruston Bucyrus | 46151425 |
| Rygo | 218341 |
| Sakura | H57030 |
| Sakura | H7905 |
| Schramm | 50008361 |
| Sf Filter | HY12518 |
| Sf Filter | HY9490 |
| Sperry New Holland | 51036006 |
| Sullair | 235331 |
| Sullair | 241177 |
| Sullair | 409795 |
| Sullair | 704110 |
| Sullair | P164699016140 |
| Sure Filter | SFH4699 |
| Taylor | 2404329 |
| Technical Filtration Ltd | BSH6287 |
| Tecno Comp | TE800 |
| Terex | 1448990 |
| Torquip | 9066151 |
| Uniflux Filters | XH172 |
| Uniflux Filters | XH7568 |
| Versatile | 63297 |
| Versatile | V63297 |
| Volvo Michigan Corporation | HF164699 |
| Volvo Michigan Corporation | HF166597 |
| Wabco | 4068356 |
| Wagner Mining Equipment | 361477 |
| Wagner Mining Equipment | 355922 |
| Walgahn Motorentechn | 810889 |
| Walgahn Motorentechn | 810902 |
| Walgahn Motorentechn | 810907 |
| Walgahn Motorentechn | 810908 |
| Walgahn Motorentechn | 810896 |
| Walgahn Motorentechn | 810886 |
| Walgahn Motorentechn | 810882 |
| Warner Swasey | 76102474 |
| Wix Filter | 51439 |
| Wix Filter | 51529 |
| Wix Filter | 51540 |
| Wix Filter | 51544 |
| Wix Filter | 551540 |
| Wix Filter | 551544 |
| Woodgate | WGH6199 |
| Woodgate | WGH6287 |
| Woodgate | WGH6288 |
Machinery & Equipment
| Equipment | Year | Equipment Type | Equipment Options | Engine |
| Atlas Copco Dm30 | Drilling Equipment | Caterpillar C15 | ||
| Atlas Copco Dm45 | Drilling Equipment | Caterpillar C18 | ||
| Bomag K350 | Compactor | Cummins Nt855 | ||
| Bomag K350P | Compactor | Cummins Nt855 | ||
| Bomag K351 | Compactor | Cummins Nt855 | ||
| Bomag K451 | Compactor | Cummins Nt855 | ||
| Bomag K850 | Compactor | Cummins Nt855 | ||
| Bomag K850P | Compactor | Cummins Nt855 | ||
| Bomag K851 | Compactor | Cummins Nt855 | ||
| Case Ih 1280 | Excavator Tracked | Case Ih 1280 | ||
| Case Ih 1280B | Excavator Tracked | Case Ih 1280B | ||
| Case Ih 50D | Excavator Tracked | Case Ih 50D | ||
| Case Ih 50E | Excavator Tracked | Case Ih 50E | ||
| Case Ih 80B | Excavator | Case Ih 80D | ||
| Grove 2535 | Crane | Grove 2535 | ||
| Grove Rt500 | Crane Mobile | Deutz F6L912 | ||
| Grove Rt500C | Crane Mobile | Deutz F6L912 | ||
| Grove Rt528B | Crane Mobile | Deutz F6L912 | ||
| Grove Rt58A | Crane Mobile | Deutz F6L912 | ||
| Grove Rt58B | Crane Mobile | Deutz F6L912 | ||
| Grove Rt58C | Crane Mobile | Deutz F6L912 | ||
| Grove Rt58D | Crane Mobile | Deutz F6L912 | ||
| Grove Rt58E | Crane Mobile | Deutz F6L912 | ||
| Grove Rt600B | Crane Mobile | Deutz F6L912 | ||
| Grove Rt615S | Crane Mobile | Perkins 6.354.4 | ||
| Grove Rt620S | Crane Mobile | Perkins 6.354.4 | ||
| Grove Rt630B | Crane Mobile | Perkins 6.354.4 | ||
| Grove Rt75S | Crane Mobile | Perkins 6.354.4 | ||
| Grove Tm200C | Crane Mobile | Perkins 6.354.4 | ||
| Grove Tms185 | Crane Mobile | Perkins 6.354.4 | ||
| Grove Tms200 | Crane Mobile | Perkins 6.354.4 | ||
| Grove Tms250 | Crane Mobile | Perkins 6.354.4 | ||
| Grove Tms300B | Crane Mobile | Perkins 6.354.4 | ||
| Grove Tms300Lp | Crane Mobile | Perkins 6.354.4 | ||
| Grove Tms500 | Crane Mobile | Perkins 6.354.4 | ||
| Grove Tms760 | Crane Mobile | Perkins 6.354.4 | ||
| Grove Tms865 | Crane Mobile | Perkins 6.354.4 | ||
| Hyster H40000E | Forklift | Hyster H40000E | ||
| Hyster H880 | Forklift | Perkins 12T1 | ||
| Ingersoll Rand D750S | Compressor | Cummins V504 | ||
| Ingersoll Rand Da45 | Compactor | Ingersoll Rand Da45 | ||
| Ingersoll Rand Da45 | Compactor | Ingersoll Rand Da45 | ||
| Ingersoll Rand Dxl600Hs | Compressor | Cummins V504 | ||
| Ingersoll Rand Hp525S | Compressor | Cummins V504 | ||
| Ingersoll Rand Hp525W | Compressor | Cummins V504 | ||
| Ingersoll Rand P450Scu | Compressor | Cummins V378 | ||
| Ingersoll Rand P450Wcu | Compressor | Cummins V378 | ||
| Ingersoll Rand P700 | Compressor | Cummins V378 | ||
| Ingersoll Rand P700S | Compressor | Cummins V378 | ||
| Ingersoll Rand Xl900 | Compressor | Cummins V378 | ||
| Ingersoll Rand Xp600 | Compressor | Cummins V378 | ||
| Ingersoll Rand Xp600S | Compressor | Cummins V378 | ||
| New Holland 1150 | Tractor | New Holland 1150 | ||
| New Holland 1156 | Tractor | New Holland 1156 | ||
| Versatile 1150 | Tractor | Versatile 1150 |
