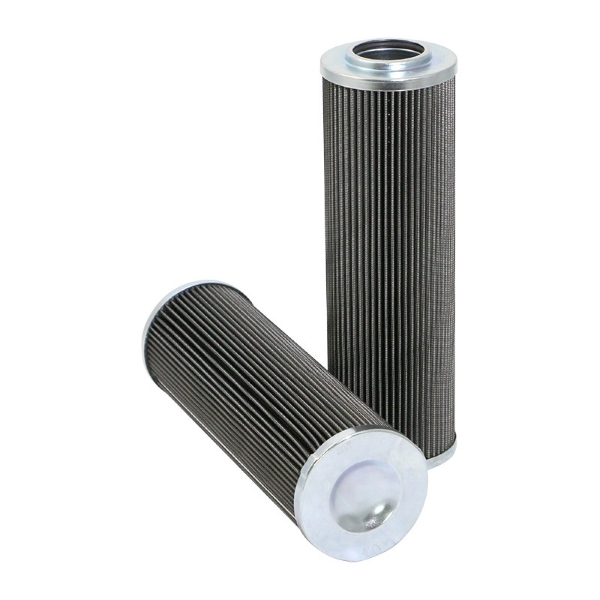

Hydraulic Filter Cartridge
PFH10227
Sale!
Hydraulic Filter Cartridge
PFH10227
£244.74 exc VAT £122.37 exc VAT
In stock
In stock
Order By 2pm for UK Free Next Day Delivery
Orders under £250 Standard Delivery £25 +VAT
Orders over £250 Free Delivery
| Product Specification | |
| Outer Diameter | 78 mm (3.07 inch) |
| Inner Diameter | 40.5 mm (1.59 inch) |
| Inner Diameter Bottom End | 40.5 mm (3.35 inch) |
| Length | 248 mm (9.76 inch) |
| Overall Length | 248 mm (9.76 inch) |
| Bypass Valve Setting | |
| Collapse Burst | 21 bar 305 psi |
| Efficiency 99.5% Beta 200 | 13 micron |
| Efficiency 99.9% Beta 1000 | 25 micron |
| Efficiency Test Standard | ISO IATF 16949 |
| Maximum Operating Temperature | |
| Flow Direction | Out In |
| Type | OEM Quality Hydraulic Filter |
| Style | Hydraulic Cartridge |
| Media Type | Synthetic Pleated Wired Mesh |
| Notes | Bottom End Closed |
| Notes | Metal End Caps |
| Notes | Nitrile Butadiene Rubber Seal |
| Notes | |
| Primary Application | Internormen 01NL25025G30EP |
OEM Cross Reference
| Manufacturer Name | Manufacturer Part No |
| Filtration Group | 70583557 |
| Filtration Group | N0250DN3025 |
| Filtration Group | N0250DN3040 |
| Filtrec | XD250T25A |
| Filtrec | XD250T25AV |
| Fluitek | PS031098-25B61B |
| Fluitek | PS03109825B61B |
| Hifi Filter | SH65422 |
| Hydac | 0250DN025W |
| Hydac | 0250DN025WH |
| Hydac | 0250DN025WHC |
| Hydac | 1271560 |
| Internormen | 01NL25025G30EP |
| Internormen | 300368 |
| Internormen | 01.NL 250.25G.30.E.P |
| Internormen | 01NL25025G30EV |
| Internormen | 01NL25040G30EV |
| Internormen | 304589 |
| Internormen | 305039 |
| Mahle | PI35025DN |
| Pallman | PFH10227 |
| Pallman Filter | PFH10227 |
| Sf Filter | HY14383 |
| Sofima Hydraulics | CPD250MV1 |
| Sofima Hydraulics | CPD250RT1 |
| Stauff | NL250B25B |
| Ufi Hydraulics | DPX0250NMD |
| Ufi Hydraulics | DPX0250FMD |
| Wix Filter | D59E25TAV |
