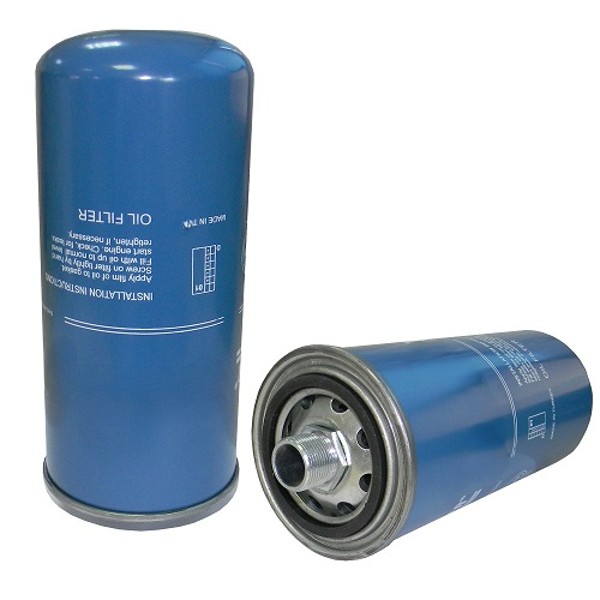

HYDRAULIC FILTER SPIN ON
PFH55185
HYDRAULIC FILTER SPIN ON
PFH55185
£46.45 exc VAT
In stock
In stock
Order By 2pm for UK Free Next Day Delivery
Orders under £250 Standard Delivery £25 +VAT
Orders over £250 Free Delivery
| Product Specification | |
| Thread Size | 1 x 12 M 24 x 1.5 |
| Outer Diameter | 97 mm (3.82 inch) |
| Gasket OD | 72 mm (2.84 inch) |
| Gasket ID | 62 mm (2.44 inch) |
| Length | 227 (9.08 inch) |
| Overall Length | 227 (9.08 inch) |
| Anti Drain Back Valve | No |
| Anti Syphon | No |
| Bypass Valve | No |
| Efficiency 99.9% Beta 1000 | 5 micron |
| Efficiency 99.9% Beta 1000 | 25 micron |
| Efficiency Test Standard | ISO IATF 16949 |
| Stand Pipe | No |
| Type | OEM Quality Hydraulic Filter |
| Style | Hydraulic Spin On |
| Media Type | Synthetic Pleated |
| Notes | Bottom End Closed |
| Notes | Gasket Seal Included |
| Notes | Square Seal is Attached |
| Notes | Thread Nut M 24 x 1.5 is Attached |
| Notes | |
| Primary Application | ZF 750131061 |
OEM Cross Reference
| Manufacturer Name | Manufacturer Part No |
| ASAS | SP891 |
| ASAS FILTER | SP891 |
| ASTRA | 126523 |
| BALDWIN | BT9422 |
| CASE IH | 8603535 |
| CASE IH | 87519452 |
| CASE IH | 47996857 |
| CASE IH | 332202A1 |
| CASE IH | 875194452 |
| CASE IH | 84491498 |
| DAEWOO | 47400021 |
| DAEWOO | 501323154 |
| DOOSAN | 40040900006 |
| DOOSAN | 47400021 |
| DOOSAN | NR0501333764 |
| FIL FILTER | ZP3327MG |
| FIL FILTER | ZP3409MG |
| FILTRATION LTD | FTH7658 |
| FLEETGUARD | HF35498 |
| FLEETGUARD | HF35140 |
| FLUITEK | FLK1800019 |
| HENGST | HG385W |
| HIFI FILTER | SH62023 |
| HITACHI | 263G257011 |
| HITACHI | YA00049017 |
| HYSTER | 4024304 |
| HYUNDAI EQUIPMENT | HYZGAQ02400 |
| HYUNDAI EQUIPMENT | ZGAQ00001 |
| HYUNDAI EQUIPMENT | ZGAQ02400 |
| HYUNDAI EQUIPMENT | 31LM40090 |
| JCB | 32925905A |
| JCB | 32925197 |
| JCB | 32925905 |
| JCB | 55041386 |
| JOHN DEERE | AT222005 |
| JOHN DEERE | AT336140 |
| JOHN DEERE | AT468647 |
| KALMAR | 800821362 |
| KALMAR | J022130100 |
| KALMAR | J0221300100 |
| KOMATSU | 42Y15H0V35 |
| KOMATSU | 42Y15HOV35 |
| LEKANG | 61096 |
| LIEBHERR | 512600408 |
| MANN HUMMEL | WH960 |
| NATIONAL STOCK NUMBER | 2940226153983 |
| NATO NSN | 2940226153983 |
| NEW HOLLAND | 8900126523 |
| NEW HOLLAND | 47996857 |
| PALLMAN | PFH55185 |
| PALLMAN FILTER | PFH55185 |
| PARKER HANNIFIN | BT9422 |
| SAKURA | HC76130 |
| SF FILTER | SPH21025 |
| SURE FILTER | SFH4729 |
| TEREX | 15273572 |
| TURK TRAKTOR | 84491498 |
| WIX FILTER | WL10186 |
| ZF | 501333764 |
| ZF | 501323154 |
| ZF | 750131061 |
Machinery & Equipment
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Options |
| DOOSAN DL160 | LOADER WHEELED | DL SERIES | CUMMINS QSB4.5 | ||
| DOOSAN DL200 | LOADER WHEELED | DL SERIES | DOOSAN DL06 | ||
| DOOSAN DL250 | LOADER WHEELED | DL SERIES | DOOSAN DL06 | ||
| DOOSAN DL250TC | LOADER WHEELED | DL SERIES | DOOSAN DL06 | ||
| DOOSAN DL300 | LOADER WHEELED | DL SERIES | DOOSAN DL08 | ||
| DOOSAN DL400 | LOADER WHEELED | DL SERIES | CUMMINS QSL9 | ||
| DOOSAN DL450 | LOADER WHEELED | DL SERIES | CUMMINS QSM11 | ||
| DOOSAN DL500 | LOADER WHEELED | DL SERIES | CUMMINS QSM11 | ||
| DOOSAN MEGA 160 | LOADER WHEELED | MEGA SERIES | DOOSAN DB58 | ||
| DOOSAN MEGA 160TC | LOADER WHEELED | MEGA SERIES | DOOSAN DB58 | ||
| DOOSAN MEGA 200V | LOADER WHEELED | MEGA SERIES | DOOSAN DB58TIS | TIER 1 and TIER 2 | |
| DOOSAN MEGA 200V | LOADER WHEELED | MEGA SERIES | DOOSAN DB58TI | TIER 1 and TIER 2 | |
| DOOSAN MEGA 200TCV | LOADER WHEELED | MEGA SERIES | DOOSAN DB58TIS | ||
| DOOSAN MEGA 200TCV | LOADER WHEELED | MEGA SERIES | DOOSAN DB58TI | ||
| DOOSAN MEGA 250V | LOADER WHEELED | MEGA SERIES | DOOSAN DB1146T | ||
| DOOSAN MEGA 250V | LOADER WHEELED | MEGA SERIES | DOOSAN D1146T | ||
| DOOSAN MEGA 250V | LOADER WHEELED | MEGA SERIES | DOOSAN DB58TIS | ||
| DOOSAN MEGA 250V | LOADER WHEELED | MEGA SERIES | DOOSAN DE08TIS | ||
| DOOSAN MEGA 300V | LOADER WHEELED | MEGA SERIES | DOOSAN DE12TIA | TIER 1 | |
| DOOSAN MEGA 300V | LOADER WHEELED | MEGA SERIES | DOOSAN DE08TIS | ||
| FIAT KOBELCO AD25 | DUMP TRUCK | CUMMINS 6CTA8.3 | |||
| FIAT KOBELCO AD30 | DUMP TRUCK | CUMMINS QSM11 | |||
| HITACHI LX1203 | LOADER WHEELED | JOHN DEERE 6068 | |||
| HITACHI LX1503 | LOADER WHEELED | JOHN DEERE 6081 | |||
| HITACHI ZW1805B | LOADER WHEELED | CUMMINS QSB6.7 | |||
| HITACHI ZW180PL | LOADER WHEELED | CUMMINS QSB6.7 | |||
| HYUNDAI HL7307 | LOADER WHEELED | HL SERIES | CUMMINS 4B3.9 | ||
| HYUNDAI HL730TM7 | LOADER WHEELED | HL SERIES | CUMMINS 4B3.9 | ||
| HYUNDAI HL7407 | LOADER WHEELED | HL SERIES | CUMMINS QSB5.9 | ||
| HYUNDAI HL740TM7 | LOADER WHEELED | HL SERIES | CUMMINS QSB5.9 | ||
| HYUNDAI HL7577 | LOADER WHEELED | HL SERIES | CUMMINS QSB5.9 | ||
| HYUNDAI HL757TM7 | LOADER WHEELED | HL SERIES | CUMMINS QSB5.9 | ||
| HYUNDAI HL760 | LOADER WHEELED | HL SERIES | CUMMINS 6CT8.3 | ||
| HYUNDAI HL7707 | LOADER WHEELED | HL SERIES | CUMMINS QSC8.3 | ||
| HYUNDAI HL7707A | LOADER WHEELED | HL SERIES | CUMMINS QSL9 | ||
| HYUNDAI HL7803A | LOADER WHEELED | HL SERIES | CUMMINS QSM11 | ||
| JOHN DEERE 444H | LOADER | JOHN DEERE 4045 | |||
| JOHN DEERE 444H LL | LOADER | JOHN DEERE 4045 | |||
| JOHN DEERE 444H TC | LOADER | JOHN DEERE 4045 | |||
| JOHN DEERE 444J | LOADER | JOHN DEERE 4045H | |||
| JOHN DEERE 544H | LOADER WHEELED | JOHN DEERE 6068 | |||
| JOHN DEERE 544H LL | LOADER | JOHN DEERE 6068 | |||
| JOHN DEERE 544H TC | LOADER | JOHN DEERE 6068 | |||
| JOHN DEERE 544J | LOADER WHEELED | JOHN DEERE 6068H | |||
| JOHN DEERE 624H | LOADER WHEELED | JOHN DEERE 6068HT | |||
| JOHN DEERE 624H LL | LOADER | JOHN DEERE 6068 | |||
| JOHN DEERE 624J | LOADER | JOHN DEERE 6068 | |||
| JOHN DEERE 644H | LOADER WHEELED | JOHN DEERE 6068 | |||
| JOHN DEERE 644J | LOADER | JOHN DEERE 6068 | |||
| JOHN DEERE 724J | LOADER WHEELED | JOHN DEERE 6068 | |||
| JOHN DEERE 744J | LOADER WHEELED | JOHN DEERE 6125A | |||
| JOHN DEERE 824J | LOADER WHEELED | JOHN DEERE 6125 | |||
| JOHN DEERE TC44H | LOADER | JOHN DEERE 4045T | |||
| JOHN DEERE TC54H | LOADER | JOHN DEERE 6068T | |||
| JOHN DEERE TC62H | LOADER | JOHN DEERE 6068T | |||
| KAWASAKI 70Z7 | LOADER WHEELED | CUMMINS QSB6.7 | |||
| NEW HOLLAND F106.7 | GRADER | F SERIES | IVECO 667TA EDE | TIER 3 | |
| NEW HOLLAND F106.7A | GRADER | F SERIES | IVECO 667TA EDE | TIER 3 | |
| NEW HOLLAND F156.7 | GRADER | F SERIES | IVECO 667TA EEE | TIER 3 | |
| NEW HOLLAND F156.7A | GRADER | F SERIES | IVECO 667TA EEE | TIER 3 | |
| NEW HOLLAND W110 | LOADER WHEELED | W SERIES | NEW HOLLAND 445A M2 | ||
| NEW HOLLAND W110TC | LOADER WHEELED | W SERIES | NEW HOLLAND 445A M2 | ||
| NEW HOLLAND W130 | LOADER WHEELED | W SERIES | NEW HOLLAND 668TA M2 | ||
| NEW HOLLAND W130C | LOADER WHEELED | W SERIES | IVECO F4HFE613Z | TIER 4 | |
| NEW HOLLAND W130TC | LOADER WHEELED | W SERIES | NEW HOLLAND 668TA M2 | ||
| NEW HOLLAND W170C | LOADER WHEELED | W SERIES | IVECO F4HFE613Y | TIER 4 | |
| NEW HOLLAND W190C | LOADER WHEELED | W SERIES | IVECO F4HFE613X | TIER 4 | |
| NEW HOLLAND W230C | LOADER WHEELED | W SERIES | IVECO FAHFE6131 | TIER 4 | |
| NEW HOLLAND W270C | LOADER WHEELED | W SERIES | NEW HOLLAND F2CFE614C | TIER 4 | |
| NEW HOLLAND W300C | LOADER WHEELED | W SERIES | NEW HOLLAND F2CFE614B | TIER 4 | |
| TEREX TA25 | DUMP TRUCK ARTICULATED | CUMMINS QSC8.3 | |||
| TEREX TA27 | DUMP TRUCK ARTICULATED | TA SERIES | CUMMINS QSM11 | ||
| TEREX TA27 | DUMP TRUCK ARTICULATED | CUMMINS QSL9 | |||
| TEREX TA30 | DUMP TRUCK ARTICULATED | TA SERIES | CUMMINS QSM11 |
