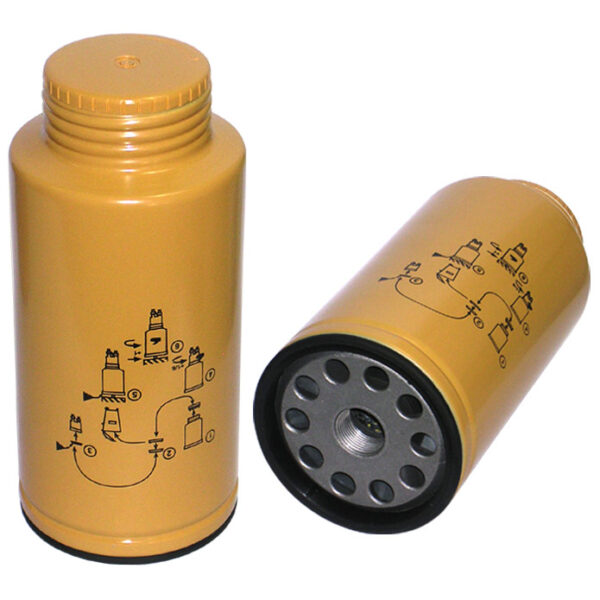

FUEL FILTER WATER SEPARATOR SPIN ON
SP1070M
FUEL FILTER WATER SEPARATOR SPIN ON
SP1070M
£115.11 exc VAT
In stock
In stock
Order By 2pm for UK Free Next Day Delivery
Orders under £150 Standard Delivery £15 +VAT
Orders over £150 Free Delivery
| Product Specification | |
| Thread Size | 1 x 14 UN |
| Outer Diameter | 108 mm (4.25 inch) |
| Gasket OD | 98 mm (3.86 inch) |
| Gasket ID | 90 mm (3.54 inch) |
| Length | 194 mm (7.64 inch) |
| Overall Length | 194 mm (7.64 inch) |
| Efficiency 99% Beta 100 | 20 micron |
| Efficiency Test Standard | ISO IATF 16949 |
| Stand Pipe | Yes |
| Type | OEM Quality Fuel Filter |
| Style | Fuel Water Separator Spin On |
| Media Type | Cellulose Pleated |
| Notes | Bottom End Open Closed |
| Notes | Gasket Seal Included |
| Notes | Square Seal is Attached |
| Notes | Sensor Port is Attached |
| Notes | |
| Primary Application | CATERPILLAR 3261644 |
OEM Cross Reference
| Manufacturer Name | Manufacturer Part No |
| AGCO | CH1R0770 |
| AGCO | 539363D1 |
| ASAS | SP1070M |
| ASAS FILTER | SP1070M |
| ATLAS COPCO | 3222343171 |
| ATLAS COPCO | 2914866400 |
| BALDWIN | BF1399SP |
| BALDWIN | BF1284SP |
| BOMAG | 332095668 |
| BUCYRUS | V012938 |
| CATERPILLAR | 1R0770 |
| CATERPILLAR | 3261644 |
| CATERPILLAR | 1R0769 |
| CATERPILLAR | 1R0771 |
| CATERPILLAR | 1R0781 |
| CATERPILLAR | 3261641 |
| CATERPILLAR | 3261642 |
| CATERPILLAR | 4238521 |
| CATERPILLAR | 1749570 |
| CATERPILLAR | 3261643 |
| CHINA LOCAL | STCX769A |
| CHINA LOCAL | STCX769B |
| CHINA LOCAL | STCX770 |
| CHINA LOCAL | STCX771A |
| CHINA LOCAL | STCX771B |
| DONALDSON | P551010 |
| FIL | ZP3152AF |
| FLEETGUARD | FS19820 |
| FLUITEK | FLK1800332 |
| HENGST | H523WKD539 |
| HIFI | SN55437 |
| NATO NSN | 4330015302969 |
| NATO NSN | 2940015784282 |
| PALLMAN | PFF55101 |
| PALLMAN FILTER | PFF55101 |
| PARKER HANNIFIN | BF1399SP |
| SAKURA | SFC55170 |
| SANDVIK | 30555051 |
| SANDVIK | 9120287 |
| SF FILTER | SK3322 |
| SURE FILTER | SFR0770FW |
| TAMROCK | 506853 |
| WIX | 33606 |
Machinery & Equipment
| Equipment | Year | Equipment Type | Equipment Options | Engine |
| ATLAS COPCO DM45 | DRILLING EQUIPMENT | CATERPILLAR C18 | ||
| BUCYRUS SKF 11 | DRILLING EQUIPMENT | CATERPILLAR 3126B | ||
| CATERPILLAR 325CL | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3126B | |
| CATERPILLAR 345DL | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C13 ACERT | |
| CATERPILLAR 349D | EXCAVATOR TRACKED | CATERPILLAR C13 ACERT | ||
| CATERPILLAR 349DL | EXCAVATOR TRACKED | CATERPILLAR C13 ACERT | ||
| CATERPILLAR D10R | DOZER TRACKED | D SERIES | CATERPILLAR 3412E | |
| CATERPILLAR D8R | DOZER TRACKED | D SERIES | CATERPILLAR 3406C | |
| CATERPILLAR D9R | DOZER TRACKED | D SERIES | CATERPILLAR 3408E | |
| WIRTGEN W 2000 | 1999 | MILLING EQUIPMENT | W SERIES | CATERPILLAR C15 ATAAC |
| WIRTGEN W 2100 | 2004 | MILLING EQUIPMENT | W SERIES | CATERPILLAR C18 ATAAC |
| WIRTGEN W 220 | 2012 | MILLING EQUIPMENT | W SERIES | CATERPILLAR C18 ATAAC |
| WIRTGEN WR 250 | 2013 | ROAD STABILIZER | WR SERIES | CATERPILLAR C18 ATAAC |
