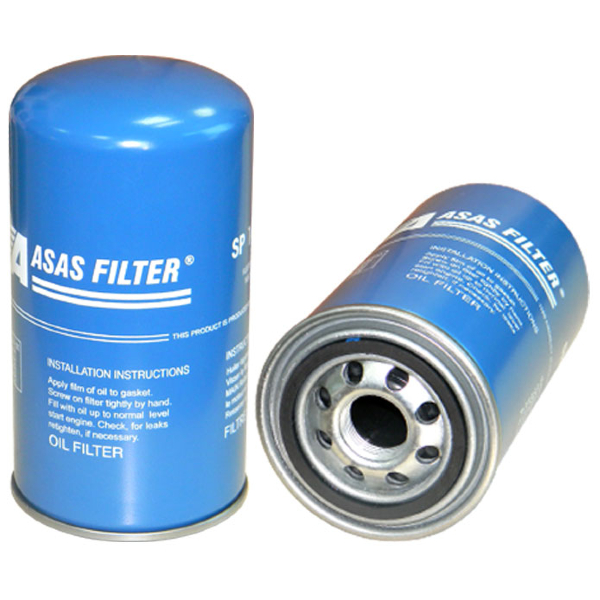

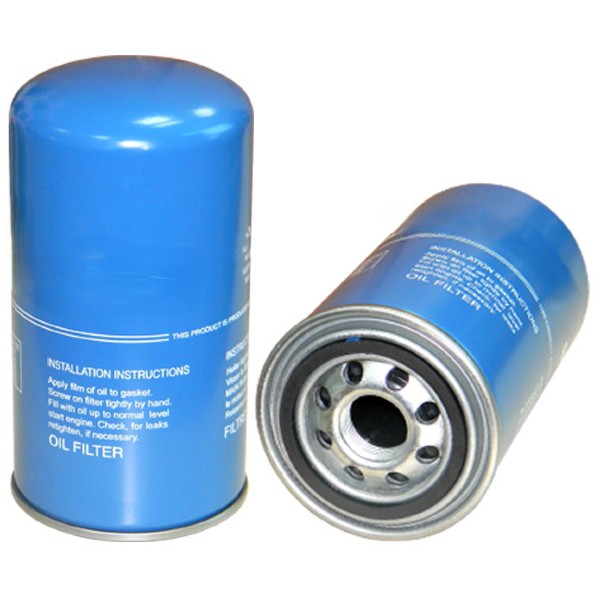

OIL FILTER SPIN ON FULL FLOW
SP1461
OIL FILTER SPIN ON FULL FLOW
SP1461
£18.32 exc VAT
In stock
In stock
Order By 2pm for UK Free Next Day Delivery
Orders under £150 Standard Delivery £15 +VAT
Orders over £150 Free Delivery
| Product Specification | |
| Thread Size | M 24 x 1.5 |
| Outer Diameter | 97 mm (3.82 inch) |
| Gasket OD | 72 mm (2.84 inch) |
| Gasket ID | 62 mm (2.44 inch) |
| Length | 143 mm (5.63 inch) |
| Overall Length | 143 mm (5.63 inch) |
| Efficiency 99% Beta 100 | 35 micron |
| Efficiency Test Standard | ISO IATF 16949 |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 1.2 bar 17 psi |
| Bypass Valve Setting HR | 1.6 bar 23 psi |
| Collapse Burst | 10 bar 145 psi |
| Type | OEM Quality Oil Filter |
| Style | Spin On Full Flow |
| Media Type | Cellulose Pleated |
| Notes | Bottom End Closed |
| Notes | Gasket Seal Included |
| Notes | Square Seal is Attached |
| Notes | |
| Primary Application | JOHN DEERE RE519626 |
OEM Cross Reference
| Manufacturer Name | Manufacturer Part No |
| AHLMANN | 23109871 |
| ASAS | SP1461 |
| ASAS FILTER | SP1461 |
| BALDWIN | B7306 |
| CARQUEST | 84076 |
| CASE IH | 84269161 |
| DONALDSON | P550758 |
| DOOSAN | 22545867 |
| DOOSAN | 225454687 |
| DYNAPAC | 4700940985 |
| FAMEL | F1 |
| FIL FILTER | ZP93 |
| FLEETGUARD | LF16173 |
| FLUITEK | FLK1800103 |
| GEHL | 102173 |
| GRAINGER | 2NTZ1 |
| GUD | Z618 |
| HASTINGS | LF635 |
| HIFI | SO10067 |
| INGERSOLL RAND | 225454687 |
| JOHN DEERE | RE518977 |
| JOHN DEERE | RE519626 |
| KOHLER | 330560632 |
| KOHLER | GM34935 |
| LIEBHERR | 7090658 |
| LUBER FINER | LFP8340 |
| MACK | 5839LF16173 |
| MANN HUMMEL | W94010 |
| MISFAT | Z659 |
| NAPA GOLD | 7076 |
| ONERGYS | 30003370 |
| PALLMAN | PFO55075 |
| PALLMAN FILTER | PFO55075 |
| PARKER HANNIFIN | B7306 |
| RAPIDPARTS INC | P550753 |
| RYCO | Z863 |
| SAKURA | C7952 |
| SDMO | 330362513 |
| SDMO | 330560632 |
| SF FILTER | SP4772 |
| SF FILTER | SP41112 |
| SPAREX | S43965 |
| STEYR DAIMLER PUCH | 132000070726 |
| SULLAIR | B7306 |
| SURE FILTER | SFO0726 |
| SURE FILTER | SFO3467 |
| TONGG YANG MOOLSAN | 17681673990 |
| TRP DAF | 1535329 |
| VAPORMATIC | VPD5180 |
| VMC | LF550758 |
| WIX | 57076 |
Machinery & Equipment
| Equipment | Year | Equipment Type | Equipment Options | Engine |
| AHLMANN AX100 | LOADER WHEELED | AX SERIES | JOHN DEERE 4024T | |
| AHLMANN AX70 | LOADER WHEELED | AX SERIES | JOHN DEERE 4024H | |
| AHLMANN AX85 | LOADER WHEELED | AX SERIES | JOHN DEERE 4024T | |
| AHLMANN AX850 | LOADER WHEELED | AX SERIES | JOHN DEERE 4024H | |
| JOHN DEERE 244J | LOADER | JOHN DEERE 4024T | ||
| JOHN DEERE 3029 | POWER UNIT | JOHN DEERE 4024T | ||
| JOHN DEERE 304J | LOADER | JOHN DEERE 4024T | ||
| JOHN DEERE 315 | SKID STEER LOADER | JOHN DEERE 4024T | ||
| JOHN DEERE 315 | SKID STEER LOADER | JOHN DEERE 4045T | ||
| JOHN DEERE 317 | SKID STEER LOADER | JOHN DEERE 4024T | ||
| JOHN DEERE 318D | SKID STEER LOADER | JOHN DEERE 4024H | ||
| JOHN DEERE 320 | SKID STEER LOADER | JOHN DEERE 4024T | ||
| JOHN DEERE 320D | SKID STEER LOADER | JOHN DEERE 4024H | ||
| JOHN DEERE 325 | SKID STEER LOADER | JOHN DEERE 5030T | ||
| JOHN DEERE 326D | SKID STEER LOADER | JOHN DEERE 5030H | ||
| JOHN DEERE 328 | SKID STEER LOADER | JOHN DEERE 5030TW | ||
| JOHN DEERE 332 | SKID STEER LOADER | JOHN DEERE 5030HW | ||
| JOHN DEERE 4024T | POWER UNIT | JOHN DEERE 2.4L | ||
| JOHN DEERE 4120 | TRACTOR | 4000 SERIES | JOHN DEERE 4024T | |
| JOHN DEERE 4320 | TRACTOR | 4000 SERIES | JOHN DEERE 4024T | |
| JOHN DEERE 4520 | TRACTOR | 4000 SERIES | JOHN DEERE 4024T | |
| JOHN DEERE 4720 | TRACTOR | 4000 SERIES | JOHN DEERE 4024T | |
| JOHN DEERE 5045D | TRACTOR | 5D SERIES | JOHN DEERE 3029D | |
| JOHN DEERE 5045E | TRACTOR | 5E SERIES | JOHN DEERE 3029D | |
| JOHN DEERE 5055D | TRACTOR | 5D SERIES | JOHN DEERE 3029D | |
| JOHN DEERE 5055E | TRACTOR | 5E SERIES | JOHN DEERE 3029T | |
| JOHN DEERE 5060E | TRACTOR | JOHN DEERE 3029T | ||
| JOHN DEERE 5065E | TRACTOR | 5E SERIES | JOHN DEERE 3029T | |
| JOHN DEERE 5065M | TRACTOR | 5M SERIES | JOHN DEERE 5030T | |
| JOHN DEERE 5075E | TRACTOR | 5E SERIES | JOHN DEERE 3029T | |
| JOHN DEERE 5075M | TRACTOR | 5M SERIES | JOHN DEERE 5030T | |
| JOHN DEERE 5103 | TRACTOR | 5000 SERIES | JOHN DEERE 3029T | |
| JOHN DEERE 5103 | TRACTOR | 5003 SERIES | JOHN DEERE 3029D | |
| JOHN DEERE 5203 | TRACTOR | 5003 SERIES | JOHN DEERE 3029D | |
| JOHN DEERE 5225 | TRACTOR | 5025 SERIES | JOHN DEERE 5030T | |
| JOHN DEERE 5303 | TRACTOR | 5003 SERIES | JOHN DEERE 3029D | |
| JOHN DEERE 5325 | TRACTOR | 5025 SERIES | JOHN DEERE 5030T | |
| JOHN DEERE 5403 | TRACTOR | 5003 SERIES | JOHN DEERE 4045D | |
| JOHN DEERE 5403 | TRACTOR | 5000 SERIES | JOHN DEERE 3029T | |
| JOHN DEERE 5410 | TRACTOR | JOHN DEERE 3029T | ||
| JOHN DEERE 5503 | TRACTOR | 5000 SERIES | JOHN DEERE 3029T | |
| JOHN DEERE CT322 | LOADER COMPACT TRACKED | JOHN DEERE 5030TW | ||
| JOHN DEERE CT332 | SKID STEER LOADER | JOHN DEERE 5030TW | ||
| JOHN DEERE L60 3080A | COMBINE | YITUO LR4B5 | ||
| LIEBHERR L506 STEREO | LOADER WHEELED | L SERIES | LIEBHERR D404T00 | |
| LIEBHERR L507 | LOADER WHEELED | L SERIES | DEUTZ BF4L1011FT | |
| LIEBHERR L508 | LOADER WHEELED | L SERIES | DEUTZ F3L913 | |
| LIEBHERR L509 | LOADER WHEELED | L SERIES | JOHN DEERE D405T00 | |
| LIEBHERR L510 | LOADER WHEELED | L SERIES | JOHN DEERE D405T00 | |
| SULLAIR 185DUQ | COMPRESSOR | JOHN DEERE 4045D |
