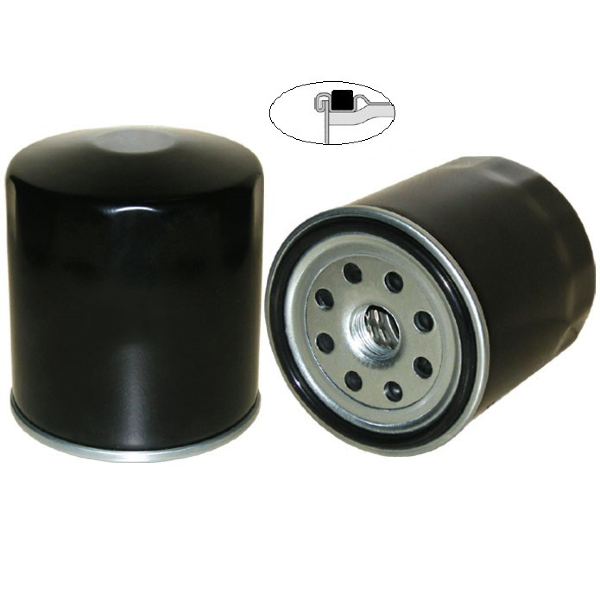

OIL FILTER SPIN ON FULL FLOW
SP563
£21.86 exc VAT £14.21 exc VAT
In stock
In stock
Order By 2pm for UK Free Next Day Delivery
Orders under £250 Standard Delivery £25 +VAT
Orders over £250 Free Delivery
Product Specification | |
Thread Size | 1 x 12 UN |
Outer Diameter | 106 mm (4.17 inch) |
Gasket OD | 100 mm (3.94 inch) |
Gasket ID | 88 mm (3.46 inch) |
Length | 150 mm (5.91 inch) |
Overall Length | 150 mm (5.91 inch) |
Efficiency 99.5% Beta 200 | 20 micron |
Efficiency Test Standard | ISO IATF 16949 |
Bypass Valve Setting LR | 0.75 bar 11 psi |
Bypass Valve Setting HR | 1.15 bar 17 psi |
Collapse Burst | 6.9 bar 100 psi |
Type | OEM Quality Oil Filter |
Style | Spin On Full Flow |
Media Type | Cellulose Pleated |
Notes | Bottom End Closed |
Notes | Gasket Seal Included |
Notes | Square Seal is Attached |
Notes | |
Primary Application | HITACHI L4183853 |
OEM Cross Reference
Manufacturer Name | Manufacturer Part No |
AC DELCO | X36 |
AC DELCO | X41 |
AC DELCO | X4132E |
AEC WHITLOCK | MO521 |
ALCO | SP823 |
ALLIS CHALMERS | 19011603 |
ALLIS CHALMERS | 2089590 |
ALLIS CHALMERS | 4008751 |
ALLIS CHALMERS | 40279796 |
AMC | MO516 |
AMC | MO527 |
AMERICAN MOTORS CORP | MO516 |
AMERICAN MOTORS CORP | 9416096 |
AMERICAN MOTORS CORP | ACO57 |
AMERICAN MOTORS CORP | OC14130 |
AMERICAN MOTORS CORP | SKC1706 |
AP FILTER | AP3146 |
AP FILTER | AP3146A |
AP LOCKHEED | LK3146 |
AP LOCKHEED | LK3146A |
ASAHI | MO521 |
ASAS | SP563 |
ASAS FILTER | SP563 |
ASTRA | 954436 |
ATLAS COPCO | 1160024 |
BALDWIN | B7144 |
BALDWIN | B7118 |
BALDWIN | B7032 |
BALDWIN | B7130 |
BENATI | 1836102 |
BEPCO | 9740 |
BIG A | 91411 |
BIG A | 92725 |
BOSCH | 451203115 |
BOSCH | 451302182 |
BOSCH | 9450732003 |
BOSCH | 986B01031 |
BOSCH KSN | P2182 |
BRAUD | H600875 |
BUSCH | 531000006 |
CALSA | E110776 |
CARELLO | 41413000 |
CARELLO | 41414000 |
CATERPILLAR | 3I1273 |
CHAMP | C470 |
CHAMPION | C120 |
CLEAN | DO243 |
COMPAIR | C160128 |
COOPERS | LSF5147 |
COOPERS | Z72 |
CROSLAND | 2086 |
CROSLAND | 2266 |
CROSLAND | 9305 |
DELUXE | WD181 |
DEUTZ | 1901603 |
DONALDSON | P502476 |
DONALDSON | P502060 |
DONALDSON | P550422 |
DONALDSON | P550409 |
DONALDSON | P551603 |
DONALDSON | P554055 |
DONALDSON | P779223 |
DONIT | 431091 |
EBRO | 993028 |
ELOFIC | EXL503 |
EXMAN | 9416096 |
EXMAN | ACO57 |
EXMAN | MO516 |
EXMAN | OC14130 |
EXMAN | SKC1706 |
EXXEL PTY LTD | EX14640046 |
EXXEL PTY LTD | OIL046 |
EXXEL PTY LTD | OIL052 |
FARR | 114272001 |
FIAAM | FT4670 |
FIAT GROUP | 1901603 |
FIAT GROUP | 1909101 |
FIAT GROUP | 437072 |
FIAT GROUP | 4597232 |
FIAT GROUP | 4600875 |
FIAT GROUP | 4625547 |
FIAT GROUP | 4629544 |
FIAT GROUP | 4630786 |
FIAT GROUP | 4643371 |
FIAT GROUP | 4648371 |
FIAT GROUP | 4730586 |
FIAT GROUP | 4951092 |
FIAT GROUP | 61660298 |
FIAT GROUP | 62775370 |
FIAT GROUP | 70107630 |
FIAT GROUP | 70425547 |
FIAT GROUP | 704625547 |
FIAT GROUP | 71901603 |
FIAT GROUP | 640008751 |
FIAT GROUP | 74648371 |
FIAT GROUP | 8820772 |
FIAT GROUP | 8822645 |
FIAT GROUP | 8919501 |
FIAT GROUP | 9819501 |
FIAT GROUP | TO121977 |
FILT | FF332EC |
FISPA | FOE020 |
FISPA | LI3582 |
FLEETGUARD | LF3642 |
FLEETGUARD | LF3665 |
FLEETGUARD | LF3347 |
FLEETGUARD | LF3575 |
FLEETGUARD | LF4055 |
FLEETRITE | LFR84055 |
FOMOCO | A730X6714KA |
FORD | 437072 |
FORD | 5000863 |
FORD | 5009233 |
FORD | 5011423 |
FORD | 5019427 |
FORD | A730X6714KA |
FRAD | 406013110 |
FRAM | PH4885 |
FRAM | PH2824 |
GENERAL MOTORS | 7984917 |
GIESSE | CLH342 |
GIESSE | CLH343 |
GIF FILTER | GL337 |
GIF FILTER | GL703 |
GREGOIRE | 170048 |
GREYFRIARS | 993S |
GREYFRIARS | 997S |
GREYFRIARS | 912S |
GUD | Z72 |
GUIOT | GH2824 |
GUIOT | GH2826 |
HASTINGS | LF464 |
HASTINGS | HF921 |
HENGST | H365W |
HESSTON | 1909001 |
HIFI | SO6080 |
HIFI | T8211 |
HIFI | SO387 |
HITACHI | 4183753 |
HITACHI | 4183853 |
HITACHI | 4439863 |
HITACHI | 5873105040 |
HITACHI | L4183853 |
HITACHI | 1909101 |
HOLMAN COMPAIR | C160128 |
HOLMAN COMPARE | C160128 |
HYSTER | 1368795 |
HYUNDAI | 32B4010100 |
HYUNDAI EQUIPMENT | XJAF00718 |
HYUNDAI EQUIPMENT | 32B40201000 |
INTRUPA | 83496 |
ISUZU | 8941609641 |
ISUZU | 8943212190 |
ISUZU | 8943212191 |
ISUZU | 8944160690 |
ISUZU | 89444675011 |
ISUZU | 8941609461 |
ISUZU | 8943212196 |
ISUZU | 8941609640 |
ISUZU | 8970194680 |
ISUZU | 8970967780 |
ISUZU | 8971482710 |
IVECO | 1901603 |
IVECO | 1907566 |
IVECO | 1909101 |
IVECO | 4600875 |
IVECO | 4615547 |
IVECO | 4625547 |
IVECO | 4648371 |
JCB | 2800020 |
JCB | 8943212190 |
JCB | 8944160690 |
JCB | KNH0324 |
KELTEC | KL95048 |
KOBELCO | 2446R333D2 |
KOBELCO | 2451V3091 |
KOBELCO | 2451U3091 |
KOMATSU | TK130523802 |
KRALINATOR | L20 |
KS KOLBENSCHMIDT | 134OS |
KS KOLBENSCHMIDT | 50013134 |
KUBOTA | 8941609641 |
KUBOTA | 7000014652 |
KUBOTA | HH16032430 |
LANDINI | 993028 |
LINK BELT | KNH0324 |
LUBER FINER | LF2230 |
LUBER FINER | LFP2230 |
LUBER FINER | LFP34111 |
LUCAS CAV | G414 |
M FILTER | MH358 |
MAHLE | OC14 |
MAN | 89055016003 |
MANN HUMMEL | W114580 |
MANN HUMMEL | W11143 |
MANN HUMMEL | W8005 |
MASSEY FERGUSON | 130523802 |
MASSEY FERGUSON | 3728819M1 |
MASSEY FERGUSON | 8943212191 |
MASSEY FERGUSON | 993028 |
MASSEY FERGUSON | AMO44201 |
MASTE | DK21 |
MAZDA | SE2623802 |
MAZDA | SL0123802 |
MAZDA | SL0223802 |
MEAT DORIA | 15009 |
MECA FILTER | ELH4734 |
MICRO | T8211 |
MISFAT | Z107 |
MISFAT | Z107A |
MITSUBISHI | 32B4010100 |
MITSUBISHI | 32B4000100 |
MOTORCRAFT | EFL231 |
MOTORI VM | 41150064A |
NEW HOLLAND | 71457011 |
NEW HOLLAND | 1909101 |
NEW HOLLAND | 437072 |
NEW HOLLAND | 4625547 |
NISSAN UD TRUCKS | 1520889TA2 |
NISSAN UD TRUCKS | 993028 |
NISSAN UD TRUCKS | BC1032 |
PALLMAN | PFO55042 |
PALLMAN FILTER | PFO55042 |
PARKER HANNIFIN | B7144 |
PARKER HANNIFIN | B7130 |
PARKER HANNIFIN | PERI217 |
PBR | BC1140 |
PBR | BC1243 |
PBR | BC1032 |
PEGASO | 901272 |
PERKINS | 130523802 |
PERKINS | 2654350 |
PERKINS | 992028 |
PERKINS | 993028 |
PERKINS | AMO44201 |
PMC | 749 |
PMC | PE749 |
POCLAIN | U1250505 |
POWER PART | AM044201 |
PRO FILTER | FH013 |
PURFLUX | LS953 |
PURFLUX | LS954 |
PUROLATOR | L44735 |
PUROLATOR | L45242 |
PUROLATOR | L17582 |
PUROLATOR | LI3582 |
RENAULT TRUCKS | 5001846645 |
RENAULT TRUCKS | 5021107390 |
ROMA | LUS103 |
ROVER | ABU8552 |
RYCO | R2322P |
RYCO | Z49A |
SAKURA | C2702 |
SAKURA | C1717 |
SAME | 244191701 |
SAURER | 2060462554700 |
SAVARA OLD | 3000245 |
SAVARA OLD | 928010 |
SAVARA OLD | 92801011 |
SAVARA OLD | 92801017 |
SAVARA OLD | SO010 |
SAVARA OLD | SO287 |
SF FILTER | SP4029 |
SF FILTER | SP4360 |
SOFIMA | S0800R |
SOGEFI PRO | FT4670T |
SOLE DIESEL | 17524051 |
SOPARIS | CV350 |
SPAREX | S109623 |
SPAREX | S62135 |
SPERRY | 437072 |
SUMITOMO | KNH0324 |
SURE FILTER | SFO3853 |
SURE FILTER | SFOSL02 |
SYSTEMS MATERIAL HANDLING | CT32B4000100 |
TCM | 2080101651 |
TEC FIL | PS310 |
TECA FILTER | H0650 |
TECALEMIT | FB5401 |
TECNECO | OL179 |
TECNECO | OL70 |
TECNOCAR | R80 |
TEHO FILTER | 4045 |
TEHO FILTER | OK45 |
TJ FILTER | FB5401 |
TODD GT | 2240159 |
TRP | 1534611 |
UFI | 2323600 |
UFI | 2310700 |
UNICO | LI10168 |
UNICO | LI10171 |
VAG | ND03028850 |
VAPORMATIC | VPD5037 |
VIC | C409 |
VIC | C519 |
VMC | LF550422 |
VMC | LF550409 |
WAKO | LO722K |
WAKO FRAM JAPAN | LO725K |
WIX | 57411 |
WIX | 51725 |
WIX | 51411 |
WIX | 5924n |
WOODGATE | WGL3347 |
YALE | 901024829 |
YALE | 901095857 |
Machinery & Equipment
Equipment | Year | Equipment Type | Equipment Options | Engine |
CASE IH 1500TX | DRILLING EQUIPMENT | CASE IH 1500TX | ||
FURUKAWA FL1202 | LOADER | ISUZU 4BD1T | ||
FURUKAWA FX1002 | EXCAVATOR | ISUZU 4BD1T | ||
FURUKAWA FX100M | EXCAVATOR | ISUZU 4BD1 | ||
FURUKAWA FX120 | EXCAVATOR | ISUZU 4BD1T | ||
FURUKAWA FX1202 | EXCAVATOR | ISUZU 4BD1T | ||
FURUKAWA FX150 | EXCAVATOR | ISUZU 4BD1T | ||
FURUKAWA FX90 | EXCAVATOR | ISUZU 4BD1 | ||
HITACHI EG40R | CARRIER TRACKED | ISUZU 4BD1 | ||
HITACHI EX100 | EXCAVATOR TRACKED | ISUZU 4BD1 | ||
HITACHI EX1002 | EXCAVATOR TRACKED | ISUZU 4BD1 | ||
HITACHI EX1003 | EXCAVATOR TRACKED | ISUZU 4BD1 | ||
HITACHI EX1003 | EXCAVATOR TRACKED | ISUZU 4BG1 | ||
HITACHI EX1005 | EXCAVATOR TRACKED | ISUZU 4BG1 | ||
HITACHI EX100M | EXCAVATOR TRACKED | ISUZU 4BD1 | ||
HITACHI EX100M2 | EXCAVATOR TRACKED | ISUZU 4BD1 | ||
HITACHI EX100M3 | EXCAVATOR TRACKED | ISUZU 4BD1 | ||
HITACHI EX100M5 | EXCAVATOR TRACKED | ISUZU 4BG1 | ||
HITACHI EX100W2 | EXCAVATOR TRACKED | ISUZU 4BD1T | ||
HITACHI EX100WD1 | EXCAVATOR TRACKED | ISUZU 6BB1 | ||
HITACHI EX100WD2 | EXCAVATOR TRACKED | ISUZU 4BD1T | ||
HITACHI EX100WD3 | EXCAVATOR TRACKED | ISUZU 4BD1T | ||
HITACHI EX105 | EXCAVATOR TRACKED | ISUZU 4BG1 | ||
HITACHI EX1105 | EXCAVATOR TRACKED | ISUZU 4BG1 | ||
HITACHI EX120 | EXCAVATOR TRACKED | ISUZU 4BD1T | ||
HITACHI EX1201 | EXCAVATOR TRACKED | ISUZU 4BD1 | ||
HITACHI EX1202 | EXCAVATOR TRACKED | ISUZU 4BD1 | ||
HITACHI EX1202 | EXCAVATOR TRACKED | ISUZU 4BD1T | ||
HITACHI EX1203 | EXCAVATOR TRACKED | ISUZU 4BD1 | ||
HITACHI EX1203 | EXCAVATOR TRACKED | ISUZU 4BD1T | ||
HITACHI EX1205 | EXCAVATOR TRACKED | ISUZU 4BG1T | ||
HITACHI EX1205 | EXCAVATOR TRACKED | ISUZU 4BG1 | ||
HITACHI EX130 | EXCAVATOR TRACKED | ISUZU 4BG1T | ||
HITACHI EX1305 | EXCAVATOR TRACKED | ISUZU 4BG1T | ||
HITACHI EX130H5 | EXCAVATOR TRACKED | ISUZU 4BG1T | ||
HITACHI EX135UR | EXCAVATOR TRACKED | EX SERIES | ISUZU 4BG1 | |
HITACHI EX135UR | EXCAVATOR TRACKED | ISUZU 4BG1T | ||
HITACHI EX135US | EXCAVATOR TRACKED | ISUZU 4BG1 | ||
HITACHI EX135USR | EXCAVATOR TRACKED | ISUZU 4BG1 | ||
HITACHI EX150 | EXCAVATOR TRACKED | ISUZU 4BG1T | ||
HITACHI EX150 | EXCAVATOR TRACKED | ISUZU 4BD1T | ||
HITACHI EX1501 | EXCAVATOR TRACKED | ISUZU 4BG1T | ||
HITACHI EX1505 | EXCAVATOR TRACKED | ISUZU 4BG1T | ||
HITACHI EX150H5 | EXCAVATOR TRACKED | ISUZU 4BG1T | ||
HITACHI EX150LC5 | EXCAVATOR TRACKED | ISUZU 4BG1 | ||
HITACHI EX1605 | EXCAVATOR TRACKED | ISUZU 4BG1 | ||
HITACHI EX165 | EXCAVATOR TRACKED | EX SERIES | ISUZU 4BG1 | |
HITACHI EX90 | EXCAVATOR COMPACT | ISUZU 4BD1 | ||
HITACHI EX90 | EXCAVATOR COMPACT | ISUZU 4BB1 | ||
HITACHI EX901 | EXCAVATOR COMPACT | ISUZU 4BD1 | ||
HITACHI HX220B | BOOM LIFT | ISUZU 4BG1 | ||
HITACHI LX70 | LOADER WHEELED | ISUZU 4BD1T | ||
HITACHI LX70 | LOADER WHEELED | ISUZU W04CT | ||
HITACHI LX70 | LOADER WHEELED | ISUZU 4BD1 | ||
HITACHI LX701 | LOADER WHEELED | ISUZU 4BD1 | ||
HITACHI LX705 | LOADER WHEELED | ISUZU 4BG1T | ||
HITACHI LX707 | LOADER WHEELED | ISUZU 4BG1T | ||
HITACHI RT20S | COMPACTOR | ISUZU 4BB1 | ||
HITACHI UH0357 | EXCAVATOR TRACKED | ISUZU 4BB1 | ||
HITACHI UH043 | EXCAVATOR TRACKED | ISUZU 4BB1 | ||
HITACHI UH045 | EXCAVATOR TRACKED | ISUZU 4BB1 | ||
HITACHI UH047 | EXCAVATOR COMPACT | ISUZU 6BD1 | ||
HITACHI UH047 | EXCAVATOR COMPACT | ISUZU 4BD1T | ||
HITACHI UH04M7 | EXCAVATOR COMPACT | ISUZU 6BD1 | ||
HITACHI UH053 | EXCAVATOR TRACKED | ISUZU 4BD1 | ||
ISUZU 4BG1 | ENGINE | ISUZU 4BD1 | ||
ISUZU 4BG1T | ENGINE | ISUZU 4BD1 | ||
ISUZU QD100T | ENGINE | ISUZU 4BD1 | ||
JCB JS145W | SHOVEL | ISUZU 4BG1 | ||
JCB JS160 | EXCAVATOR | ISUZU 4BG1 | ||
JCB JS160W | SHOVEL | ISUZU 4BG1 | ||
JCB JS175W | SHOVEL | ISUZU 4BG1 | ||
JCB JS210L | EXCAVATOR | ISUZU 6BG1 | ||
KOBELCO 115SRDZ | EXCAVATOR TRACKED | ISUZU 4BD1 | ||
KOBELCO 200SRLC | EXCAVATOR | ISUZU 4BD1 | ||
KOBELCO K904LC2 | EXCAVATOR | ISUZU 4BD1 | ||
KOBELCO LK450 | LOADER WHEELED | ISUZU 4BD1 | ||
KOBELCO SK200SR | EXCAVATOR TRACKED | ISUZU 4BD1 | ||
KOBELCO SK200SRLC | EXCAVATOR TRACKED | ISUZU 4BD1 | ||
KOBELCO SK400SRLC | EXCAVATOR TRACKED | ISUZU 4BD1 | ||
KOMATSU FD20 | FORKLIFT | FG SERIES | ISUZU G207 | |
KUBOTA KH100 | EXCAVATOR COMPACT | KH SERIES | ISUZU 4BD1 | |
KUBOTA KH120 | EXCAVATOR COMPACT | KH SERIES | ISUZU 4BD1T | |
KUBOTA KH150 | EXCAVATOR COMPACT | KH SERIES | ISUZU 4BD1T | |
NEW HOLLAND E150 | EXCAVATOR TRACKED | E SERIES BLADE RUNNER | MITSUBISHI DO4 FR | |
SAKAI GW750 | COMPACTOR | DEUTZ BF4M2012C | ||
SAKAI SV400D | COMPACTOR | DEUTZ BF4M2012C | ||
SAKAI SV400T | COMPACTOR | DEUTZ BF4M2012C | ||
SAKAI SV400TB | COMPACTOR | DEUTZ BF4M2012C | ||
SAKAI SV400TF | COMPACTOR | DEUTZ BF4M2012C | ||
SAKAI SW800 | COMPACTOR | DEUTZ BF4M2012C | ||
SUMITOMO 45W | EXCAVATOR | ISUZU 4BD1P | ||
SUMITOMO SH1203 | EXCAVATOR | ISUZU 4BG1T |
