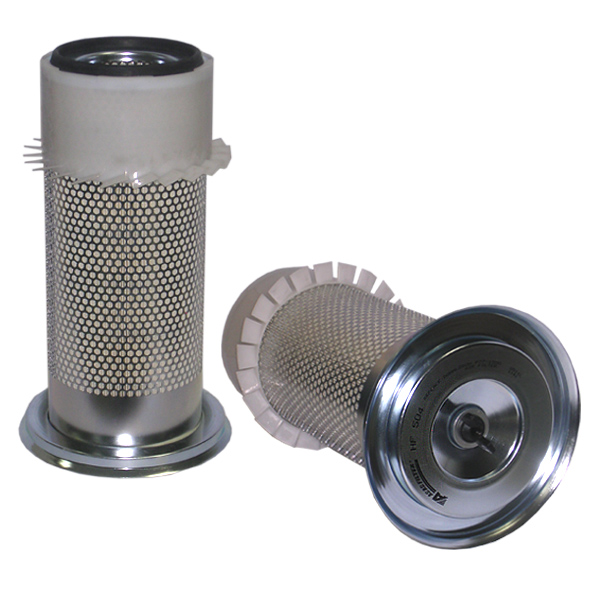

AIR FILTER PRIMARY FINNED

HF504

AIR FILTER PRIMARY FINNED

HF504

£60.99 exc VAT

In stock

In stock

Order By 2pm for UK Free Next Day Delivery

Product Specification
Outer Diameter Top End 154 mm (6.06 inch)
Outer Diameter Finned 196 mm (7.72 inch)
Outer Diameter Bottom Flange 214 mm (8.43 inch)
Inner Diameter 88 mm (3.46 inch) 7/16”UNFx20
Inner Diameter Bottom End 88 mm (3.46 inch) 7/16”UNFx20
Length 383 mm (15.08 inch)
Overall Length 393 mm (15.47 inch)
Efficiency Beta 1000 99.9%
Efficiency Test Standard ISO IATF 16949
Family Extreme Protection
Type OEM Quality Air Filter
Style Primary Round Finned
Media Type Cellulose Pleated
Notes Bottom End Closed
Notes Metal End Caps
Notes Metal Mesh Protection
Notes Safety HF232
Primary Application NEW HOLLAND 1930765

OEM Cross Reference

Manufacturer Name Manufacturer Part No
AGCO 3310355M91
AGCO 72281455
ALCO MD754K
AMERICAN PARTS 94801
AMMANN 45358520084
ARGO 3310355M91
ARMAFILT L1543921
ASAS HF504
ASAS FILTER HF504
ATLAS 1789231
ATLAS 3216523700
ATLAS 831038
ATLAS COPCO 3216523700
ATLAS COPCO 1789231
ATLAS WEYHAUSEN 1789231
ATLAS WEYHAUSEN 831038
BALDWIN PA3669FN
BENATI 1849438
BEPCO 161104
BOBCAT 3576571
BOBCAT 4313352
BOMAG 5730134
BRAUD 20015933
CARQUEST 88801
CASE IH T1950555
CASE IH 1931146
CATERPILLAR 1006845
CATERPILLAR 26510304
CATERPILLAR 26510315
CHARDONNET 7277155000
CLAAS 11301460
CLARK 3576571
CLARK 4313352
CLARK MI3576571
CLEAN MA716
COOPERS AEK2460
CROSLAND 9732K
DEUTZ FAHR 242491300
DEUTZ FAHR 242491310
DEUTZ FAHR 242493104
DEUTZ FAHR 4407275
DONALDSON P771550
DONALDSON P770197
DONALDSON P770822
DONALDSON P772550
DONALDSON P774509
DONALDSON P774550
DONALDSON 776282
DONALDSON P815288
DOOSAN 93158624
DYNAPAC 212145
FIAAM FLI6620
FIAT 1789231
FIAT 1849140
FIAT 1930442
FIAT 1930765
FIAT 1931146
FIAT 79067204
FIAT 79072797
FIAT 920015933
FIL HP4625K
FISPA FAC803
FLEETGUARD AF4748K
FORD 85824366
FRAM CAK4817
GIF FILTER GA858
GREGOIRE 170044
GREYFRIARS 1263A
GT PIECES ET SERVICES 2242931
GUD ADG1755
HAVAM HD9190
HAVAM HD9896
HAWKER SIDDELEY 36607639
HENGST E1596L
HIFI SA14698K
HITACHI 1930765
HITACHI 79067204
HITACHI 79072797
HUERLIMANN 242491310
HUERLIMANN 24249340A
INGERSOLL RAND 93158624
IVECO 5000812330
IVECO 5010042783
IVECO 79067204
IVECO 920015933
JCB JLH0100
KALMAR 9231200222
KELTEC KC255004K
KNECHT LX1670
KOMATSU 20301K1130
KRALINATOR LA1676
KRALINATOR LA1854F
LAMBORGHINI 242491310
LAND ROVER ACU7630
LAND ROVER BBU4784
LAND ROVER NTC3535
LANDINI 3310355M91
LAVERDA 85824366
LISTER PETTER 36607639
LOESING 20972
LOESING 21783
LOMBARDINI 2175074
LUBER FINER LAF8583
MAHLE LX1670
MANN HUMMEL C16340
MASSEY FERGUSON 3310355M91
MASSEY FERGUSON 1031690
MASSEY FERGUSON 26510304
MASSEY FERGUSON 3909235M1
MCCORMICK T1950555
MECA FILTER FA3398
METSO 212145
MISFAT R078
MULTI PART BBU4784
NAPA 6801
NEW HOLLAND 1930765
NEW HOLLAND 1849140
NEW HOLLAND 79067204
NEW HOLLAND 79072797
NEW HOLLAND 920015933
NEW HOLLAND T1950555
NEW HOLLAND 85824366
NOITECH SRL NA002260
PACCAR Y05764008
PACCAR Y05765308
PALLMAN PFA77149
PALLMAN FILTER PFA77149
PANHARD 431455
PARKER HANNIFIN PA3669FN
PBR AI339308
PERKINS 1006845
PERKINS 26510304
PERKINS 26510315
POCLAIN TI950555
RENAULT VI 5000812330
RENAULT VI 5010042783
ROVER ACU7630
ROVER BBU4784
ROVER NTC3535
SAKURA AS7988
SAKURA A8564
SAME 242491300
SAME 242491310
SAME 242493104
SAME 941080
SAVARA 923692
SDMO 330560194
SDMO 330570020
SEDEMS S010042783
SF FILTER SL5632
SLANZI 2175074
SOFILTRA 12680900
SOFIMA S1850A
SOTRAS SA6022
SPAREX S76788
SULLAIR 528240
SULLAIR 68528240
TECHNOCAR A581
TECNOCAR A581
TEREX T1950555
TIM 1006845
TRP 1534885
UFI 2707800
VAPORMATIC VPD7135
VENIERI 2961002
VM MOTORI 41132008A
VOLVO 3576571
WALGAHN MOTORENTECHN 811560
WALGAHN MOTORENTECHN 811601
WIX 46801
WIX 46613E
WIX 46683
WOODGATE WGA467K

Machinery & Equipment

Equipment Year Equipment Type Equipment Options Engine
AMMANN ASC100 COMPACTOR ASC SERIES CUMMINS 4BTA3.9
AMMANN ASC70 COMPACTOR ASC SERIES CUMMINS B4.5
AMMANN ASC90D COMPACTOR ASC SERIES CUMMINS B4.5
CASE IH 5110 TRACTOR CUMMINS 4BT3.9
CASE IH 5120 TRACTOR MAXXUM CUMMINS 4BT3.9
CASE IH 5130 TRACTOR MAXXUM CUMMINS 6590
CASE IH 5140 TRACTOR MAXXUM CUMMINS 6BT5.9
CASE IH W14B TRACTOR CUMMINS 6B5.9
DEUTZ FAHR 70 TRACTOR DEUTZ F4L913
DEUTZ FAHR AGROLUX 90 TRACTOR DEUTZ F4L913T
DEUTZ FAHR AGROPLUS 87 TRACTOR DEUTZ 1000.4 WT
DEUTZ FAHR AGROTRON 80 TRACTOR DEUTZ F4L913
HUERLIMANN 6115 TRACTOR SAME 1000.6W
HUERLIMANN 6115T TRACTOR SAME 1000.6W
HUERLIMANN 656DT TRACTOR PERKINS 1000.3W1
HUERLIMANN 656XAT TRACTOR PERKINS 1000.3W1
HUERLIMANN H307XE TRACTOR PERKINS 1000.3TAT
HUERLIMANN H372 TRACTOR PERKINS 1000.4W4
HUERLIMANN H4105DT TRACTOR PERKINS 1000.4W4
HUERLIMANN H488 TRACTOR PERKINS 1000.4W4
HUERLIMANN H496 TRACTOR H 400 SERIES PERKINS 1000.4W4
HUERLIMANN H5116 TRACTOR H 5000 SERIES PERKINS 1000.4W4
HUERLIMANN H6136 TRACTOR H 6000 SERIES PERKINS 1000.4W4
HUERLIMANN XA607DT TRACTOR PERKINS 1000.4W4
HUERLIMANN XA65 TRACTOR PERKINS 1000.4A
HUERLIMANN XA656 TRACTOR XA SERIES PERKINS 1000.3W1
HUERLIMANN XA658 TRACTOR PERKINS 1000.4AT
HUERLIMANN XN706 TRACTOR XN SERIES PERKINS 1000.3W
HUERLIMANN XN707 TRACTOR PERKINS 1000.4W
HUERLIMANN XN708 TRACTOR PERKINS 1000.4W
HUERLIMANN XS70 TRACTOR PERKINS 1000.4WT3
HUERLIMANN XT105 TRACTOR XT SERIES PERKINS 1000.4WT3
HUERLIMANN XT908 TRACTOR XT SERIES PERKINS 1000.4WT3
HUERLIMANN XT908DT TRACTOR PERKINS 1000.4WT3
HUERLIMANN XT909DT TRACTOR PERKINS 1000.4WT2
HUERLIMANN XT910.4 TRACTOR XT SERIES PERKINS 1000.4WT1
HUERLIMANN XT910.4DT TRACTOR PERKINS 1000.4WT1
HUERLIMANN XT910.6 TRACTOR XT SERIES PERKINS 1000.6W1
HUERLIMANN XT910.6 DT TRACTOR PERKINS 1000.6W1
HUERLIMANN XT95 TRACTOR PERKINS 1000.4WT8
KOMATSU PC1205K EXCAVATOR TRACKED PERKINS 1004.4T
KOMATSU PC1505K EXCAVATOR TRACKED PERKINS 1004.4T
LAMBORGHINI 660 TRACTOR AGILE PERKINS 1000.3W
LAMBORGHINI AGILE 770 TRACTOR PERKINS 1000.4W
LAMBORGHINI AGILE 770S TRACTOR PERKINS 1000.3T
LAMBORGHINI AGILE 880 TRACTOR PERKINS 1000.4W
LAMBORGHINI AGILE 880S TRACTOR PERKINS 1000.4W
LAMBORGHINI AGILE 989 TRACTOR PERKINS 1000.4WT
LAMBORGHINI AGILE 990S TRACTOR PERKINS 1000.4WT
LAMBORGHINI FORMULA 115DT TRACTOR SAME 1000.6W
LAMBORGHINI FORMULA 135DT TRACTOR SAME 1000.6WT
LAMBORGHINI 77480DT TRACTOR GRAND PRIX PERKINS 1000.4W
LAMBORGHINI 87490T TRACTOR GRAND PRIX PERKINS 1000.4WT
LAMBORGHINI PLUS 990FDT TRACTOR PERKINS 1000.4WT1
LAMBORGHINI 1060DTA TRACTOR PREMIUM PERKINS 1000.6W1
LAMBORGHINI PREMIUM 950DTA TRACTOR PREMIUM PERKINS 1000.4WT2
LAMBORGHINI RACING 150DT TRACTOR SAME 1000.6WTI1
LAMBORGHINI RACING 165DT TRACTOR PERKINS 1000.6WTI
LAMBORGHINI RACING 190DT TRACTOR SAME 1000.6WTIR
LANDINI 115 LEGEND TRACTOR LEGEND I PERKINS 1006.6 HR3
MASSEY FERGUSON MF3315 TRACTOR MF 3300 SERIES PERKINS 903.27
MASSEY FERGUSON MF3325 TRACTOR MF 3300 SERIES PERKINS 903.27T
MASSEY FERGUSON MF3330 TRACTOR MF 3300 SERIES PERKINS 1004.4
MASSEY FERGUSON MF3340 TRACTOR MF 3300 SERIES PERKINS 1004.42
MASSEY FERGUSON MF3350 TRACTOR MF 3300 SERIES PERKINS 1004.40T
MASSEY FERGUSON MF3355 TRACTOR MF 3300 SERIES PERKINS 1004.40T
MASSEY FERGUSON MF3425 TRACTOR MF 3400 SERIES PERKINS 103C33T
MASSEY FERGUSON MF3435 TRACTOR MF 3400 SERIES PERKINS 1104C44
MASSEY FERGUSON MF3445 TRACTOR MF 3400 SERIES PERKINS 1104C44T
MASSEY FERGUSON MF3455 TRACTOR MF 3400 SERIES PERKINS 1104C44T
NEW HOLLAND NH75TLB BACKHOE LOADER SAME 1000.4AT1
SAME 100.4 DT TRACTOR SAME 1000.4AT1
SAME 100.6 DT TRACTOR SAME 1000.6A1
SAME 80 C TRACTOR SAME 1000.4A4
SAME 80 DT TRACTOR SAME 1000.4A4
SAME 90 DT TRACTOR SAME 1000.4AT2
SAME 95 TRACTOR SAME 1000.4A
SAME DORADO 85 TRACTOR SAME 1000.4A
SAME EXPLORER 70 C TRACTOR SAME 1000.4A
SAME EXPLORER 90 TRACTOR SAME 1000.4A
SAME EXPLORER 90 C TRACTOR SAME 1000.4A
SAME EXPLORER II 90 SP TRACTOR SAME 1000.4A
SAME JAGUAR 100 TRACTOR SAME 105.4PT
SAME LEOPARD 90 TRACTOR SAME 105.4PT
SAME ROW CROP 90 TRACTOR SAME 1000.4A4
SAME SILVER 80 DTA TRACTOR SAME 1000.4A4
