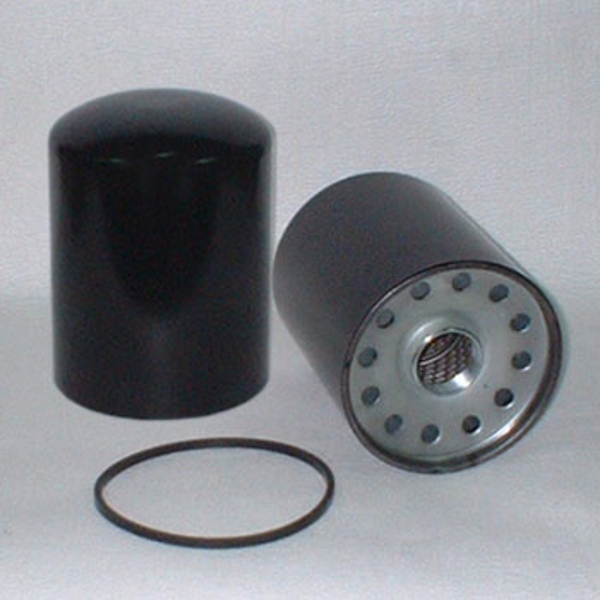

HYDRAULIC FILTER SPIN ON
SP1147HT
HYDRAULIC FILTER SPIN ON
SP1147HT
£90.00 exc VAT
In stock
In stock
Order By 2pm for UK Free Next Day Delivery
Orders under £150 Standard Delivery £15 +VAT
Orders over £150 Free Delivery
| Product Specification | |
| Thread Size | 1 1/2 x 16 UN |
| Outer Diameter | 128 mm (5.04 inch) |
| Gasket OD | 127 mm (5.00 inch) |
| Gasket ID | 121mm (4.76 inch) |
| Length | 201 mm (7.91 inch) |
| Overall Length | 201 mm (7.91 inch) |
| Anti Drain Back Valve | No |
| Anti Syphon | No |
| Bypass Valve | No |
| Bypass Valve Setting LR | No |
| Bypass Valve Setting HR | No |
| Collapse Burst | 10 bar 145 psi |
| Efficiency 95% Beta 20 | 5 micron |
| Efficiency 99% Beta 100 | 12 micron |
| Efficiency 99.5% Beta 200 | 23 micron |
| Efficiency Test Standard | ISO IATF 16949 |
| Stand Pipe | No |
| Type | OEM Quality Hydraulic Filter |
| Style | Hydraulic Spin On |
| Media Type | Micro Glass Synthetic Pleated |
| Notes | Bottom End Closed |
| Notes | Gasket Seal Included |
| Notes | Square Seal is Attached |
| Notes | |
| Primary Application | JOHN DEERE AT103195 |
OEM Cross Reference
| Manufacturer Name | Manufacturer Part No |
| AMERICAN PARTS | 92565 |
| ASAS | SP1147HT |
| ASAS FILTER | SP1147HT |
| BALDWIN | BT8802MPG |
| BIG A | 92565 |
| DONALDSON | P551242 |
| FIAT ALLIS | 76022296 |
| FLEETGUARD | HF6802 |
| FLUITEK | FSN074602 |
| HIFI FILTER | SH56852 |
| HITACHI CONSTRUCTION | 4220604 |
| HITACHI CONSTRUCTION | AT103193 |
| HOLLMAN COMPRESSOR | 13HK0802 |
| JOHN DEERE | AT102282 |
| JOHN DEERE | AT103195 |
| JOHN DEERE | AT82764 |
| JOHN DEERE | AT103193 |
| JOHN DEERE | AT106520 |
| JOHN DEERE | AT84251 |
| JOHN DEERE | AT103194 |
| JOHN DEERE | AT82200 |
| JOHN DEERE | AT12282 |
| JOHN DEERE | AT251 |
| KRALINATOR | L317 |
| NEW HOLLAND | 84476007 |
| PALLMAN | PFH55124 |
| PALLMAN FILTER | PFH55124 |
| PUROLATOR | H45178 |
| SAKURA | HC7606 |
| SF FILTER | SPH9813 |
| SURE FILTER | SFH1565 |
| TATA | AT144879 |
| TATA | AT184206 |
| TWIN DISC | MA950A |
| TWIN DISC | XB3614A |
| TWIN DISC | XB3614 |
| VMC | HF551242 |
| WIX FILTER | 51565 |
Machinery & Equipment
| Equipment | Year | Equipment Type | Equipment Options | Engine |
| HITACHI LX100 | LOADER WHEELED | ISUZU 4BD1T | ||
| HITACHI LX1001 | LOADER WHEELED | ISUZU 6BD1T | ||
| INGERSOLL RAND P185WJD | COMPRESSOR | JOHN DEERE 4239DL | ||
| JOHN DEERE 210C | BACKHOE LOADER | JOHN DEERE 4239D | ||
| JOHN DEERE 310C | BACKHOE LOADER | JOHN DEERE 4039T | ||
| JOHN DEERE 310C | BACKHOE LOADER | JOHN DEERE 4239DL | ||
| JOHN DEERE 310C | BACKHOE LOADER | JOHN DEERE 4239TL | ||
| JOHN DEERE 310C | BACKHOE LOADER | JOHN DEERE 4239D | ||
| JOHN DEERE 310C | BACKHOE LOADER | JOHN DEERE 4039D | ||
| JOHN DEERE 315C | BACKHOE LOADER | JOHN DEERE 4039D | ||
| JOHN DEERE 315C | BACKHOE LOADER | 300 SERIES | JOHN DEERE 4039D | |
| JOHN DEERE 315C | BACKHOE LOADER | JOHN DEERE 4039D | ||
| JOHN DEERE 315CH | BACKHOE LOADER | 300 SERIES | JOHN DEERE 4039D | |
| JOHN DEERE 315CH | BACKHOE LOADER | JOHN DEERE 4039D | ||
| JOHN DEERE 444D | LOADER WHEELED | JOHN DEERE 6359D | ||
| JOHN DEERE 444D | LOADER WHEELED | JOHN DEERE 6329D | ||
| JOHN DEERE 444D | LOADER WHEELED | JOHN DEERE 6239 | ||
| JOHN DEERE 482C | FORKLIFT | JOHN DEERE 482C | ||
| JOHN DEERE 544D | LOADER WHEELED | JOHN DEERE 6414T | ||
| JOHN DEERE 544D | LOADER WHEELED | JOHN DEERE 6359T | ||
| JOHN DEERE 643D | FELLER BUNCHER | JOHN DEERE 643D | ||
| JOHN DEERE 644D | TRACTOR | JOHN DEERE 644D | ||
| JOHN DEERE 644D | LOADER WHEELED | JOHN DEERE 6466T |
