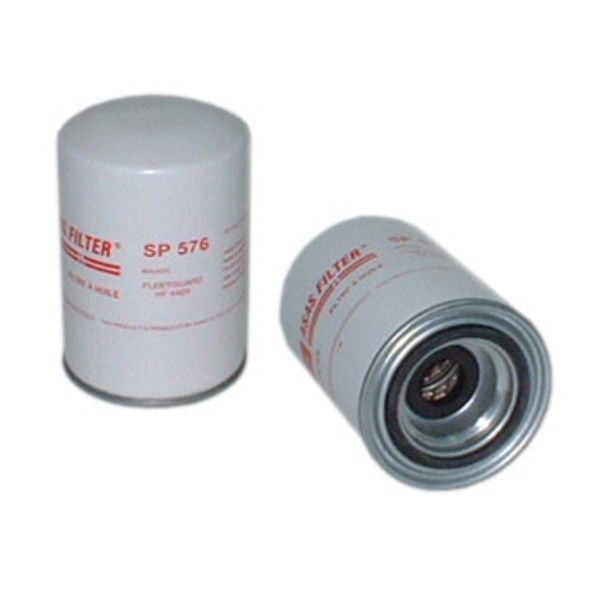

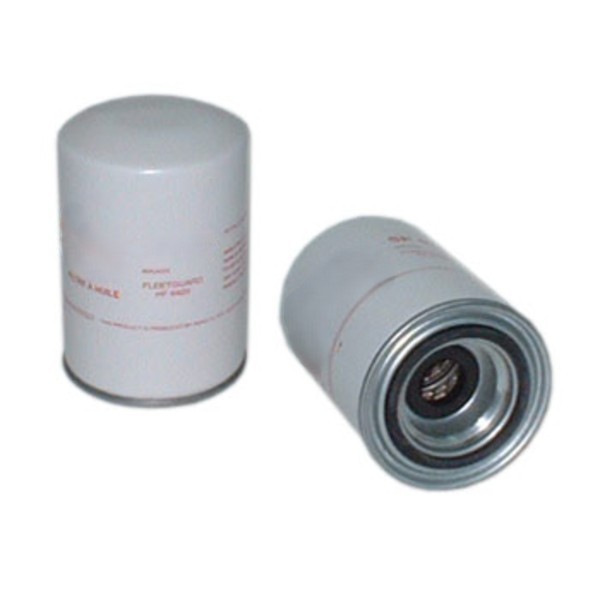

HYDRAULIC FILTER SPIN ON
SP576
£57.54 exc VAT £28.77 exc VAT
In stock
In stock
Order By 2pm for UK Free Next Day Delivery
Orders under £250 Standard Delivery £25 +VAT
Orders over £250 Free Delivery
Product Specification | |
Thread Size | 2 x 16 UN |
Outer Diameter | 97 mm (3.82 inch) |
Gasket OD | 71.6 mm (2.82 inch) |
Gasket ID | 62.4 mm (2.46 inch) |
Length | 142 mm (5.59 inch) |
Overall Length | 142 mm (5.59 inch) |
Bypass Valve | Yes |
Bypass Valve Setting LR | 2.1 bar 30 psi |
Bypass Valve Setting HR | 3.5 bar 51 psi |
Efficiency 99.9% Beta 1000 | 23 micron |
Efficiency Test Standard | ISO IATF 16949 |
Stand Pipe | No |
Type | OEM Quality Hydraulic Filter |
Style | Hydraulic Spin On |
Media Type | Synthetic Pleated |
Notes | Bottom End Closed |
Notes | Gasket Seal Included |
Notes | Square Seal is Attached |
Notes | |
Primary Application | CLARK EQUIPMENT 4202525 |
OEM Cross Reference
Manufacturer Name | Manufacturer Part No |
AC DELCO | PF1774 |
ALCO | SP1304 |
ALLIS CHALMERS | 73118171 |
AMERICAN PARTS | 92474 |
ASAS | SP576 |
ASAS FILTER | SP576 |
ATLAS COPCO | 5112280563 |
ATLAS COPCO | 5112302498 |
AVELING BARFORD | ABP3001583 |
BALDWIN | BT8830 |
BALDWIN | BT8426MPG |
BENATI | 3213398 |
BENATI | 3214307 |
BENATI | 3214639 |
BENFRA | 54609 |
BERGERAT MONNOYEUR | E6814 |
BIG A | 91129 |
BIG A | 92474 |
BOMAG | 31901320 |
BRAY | 234090 |
CARQUEST | 85474 |
CASE IH | 146735 |
CASE IH | 87214 |
CASE IH | D146735 |
CASE IH | D87214 |
CATERPILLAR | 814780 |
CATERPILLAR | 1238189 |
CATERPILLAR | 3I1980 |
CHAMP INTERNATIONAL | 1623231 |
CHAMP INTERNATIONAL | LFH8799 |
CLAAS | 317437 |
CLAAS | 3174370 |
CLAAS | 322998 |
CLAAS | 3229980 |
CLARK | 6247050 |
CLARK | 119936862 |
CLARK | 234099 |
CLARK | 246262 |
CLARK | 247050 |
CLARK | 247051 |
CLARK | 4202505 |
CLARK | 4202525 |
CLARK | 8106 |
CLARK EQUIPMENT | 4209211 |
CLARK EQUIPMENT | 234099 |
CLARK EQUIPMENT | 246262 |
CLARK EQUIPMENT | 247050 |
CLARK EQUIPMENT | 6247050 |
CLARK EQUIPMENT | 8106 |
CLARK HANDLING MATERIAL | 247050 |
CLARK JL | 234099 |
CLARK JL | 246262 |
CLARK JL | 247050 |
CLARK JL | 247051 |
CLARK MICHIGAN | 119936862 |
CLARK MICHIGAN | 234099 |
CLARK MICHIGAN | 246262 |
CLARK MICHIGAN | 247050 |
CLARK MICHIGAN | 247051 |
COOPERS | HSM6182 |
DANA | 420252590 |
DANA | 4206169 |
DANA | 4208237 |
DANA | 4209211 |
DEZZI | 350007 |
DMIC | 108668 |
DONALDSON | P574731 |
DONALDSON | P174675 |
DONALDSON | P552850 |
DOUGLAS FILTER | 43351D |
EATON | 2115522 |
EUCLID | 11992886 |
EUCLID | 11993686 |
EUCLID | 2340990 |
FAI FILTRI | CK0234099 |
FAI KOMATSU | CK0234099 |
FENWICK | 19982301 |
FERMEL | 91500115 |
FIAT | 73118171 |
FIAT | 79104646 |
FIAT | 906041007 |
FIAT ALLIS | 73118171 |
FIAT ALLIS | 79104646 |
FIAT GROUP | 73118171 |
FIAT GROUP | 79104646 |
FIATALLIS | 73118171 |
FIL FILTER | ZP3214 |
FILTRATION LTD | FTH7535 |
FILTRATION LTD | FTH7547 |
FLEETGUARD | HF28996 |
FLEETGUARD | HF6420 |
FLEETGUARD | HF6331 |
FLEETRITE | HFR86420 |
GEHL | L99184 |
GRADALL | 4202525 |
GRADALL | 90204732 |
GRADALL | 91474250 |
GRAINGER | 2NUA7 |
GREYFRIARS | HS7634 |
GREYFRIARS | HS7639 |
GROVE | 7437000873 |
HAMM | 2506785018 |
HAMM | 281875 |
HASTINGS | HF701 |
HEDEN | 29802075 |
HENGST | HY377W |
HIFI FILTER | SH66069 |
HITACHI | 73118171 |
HITACHI | 906041007 |
HITACHI | L79104646 |
HYSTER | 1655472 |
IMPERIAL | CV102712 |
INGERSOLL RAND | 58886136 |
INLINE FILTER | FH51395 |
INLINE FILTER | FH50406 |
INTRUPA | 83285 |
INTRUPA | IF4037 |
JCB | 4110147 |
JCB | 246262 |
JLG | 90204732 |
JLG | 91474250 |
KALMAR | 116893 |
KALMAR | 1336420 |
KALMAR | 9210280004 |
KALMAR | 9210970002 |
KALMAR | 9234580449 |
KALMAR | 9210280007 |
KOEHRING | 8320254 |
KOMATSU | 9831967 |
LANSING LINDE | 9982301 |
LANSING LINDE | T726001189 |
LOESING | 20527 |
LUBER FINER | LFH8799 |
MACK | 5839HF6420 |
MACLEAN ENGINERING | 1010385 |
MANITOU | 108668 |
MANITOU | 550145 |
MANITOWOC | 7437000873 |
MCCORMICK | MCD146735 |
MDF SARL | MDH9110 |
MISFAT | Z627 |
MP FILTRI | CK0234099 |
NAPA | 1474 |
NAPA GOLD | 1474 |
NATIONAL STOCK NUMBER | 2940010382321 |
ORENSTEIN KOPPEL | 8004659 |
PALLMAN | PFH55285 |
PALLMAN FILTER | PFH55285 |
PARKER HANNIFIN | 944054Q |
PETTIBONE | LL16702168 |
PETTIBONE | LP68259X |
POCLAIN | G0350595 |
POCLAIN | Z1250578 |
PUROLATOR | H35182 |
SAKURA | HC7913 |
SAKURA | HC51020 |
SANDERSON | ABP3001583 |
SANDVIK | 4697505 |
SF FILTER | SPH9250 |
SOFIMA | CA0246 |
SPAREX | S109321 |
SURE FILTER | SFH0147 |
SURE FILTER | SFH0145 |
SYSTEMS MATERIAL HANDLING | CL247050 |
TAMROCK | 85187419 |
TAMROCK | 88308129 |
TAMROCK | 4697505 |
TAMROCK | 851095100 |
TAYLOR | 4518019 |
TEC FIL | PSH235 |
TECHNICAL FILTRATION LTD | BSH6420 |
TEREX | 7126349 |
TIMBERJACK | 841095100 |
TOTAL SOURCE | CL247050 |
TOWMOTOR | 973251 |
TOWMOTOR | 73251 |
TVH | 8106 |
UNITED CENTRAL INDUSTRIAL | 323264 |
VAPORMATIC | CPK5593 |
VMC | HF174675 |
VMC | HF552850 |
VME | 11992886 |
VME | 11993686 |
VME | 119936862 |
VME | 2340990 |
VOLVO EQUIPMENT | 11992886 |
VOLVO EQUIPMENT | 11993686 |
VOLVO EQUIPMENT | 119936862 |
VOLVO EQUIPMENT | 234099 |
VOLVO EQUIPMENT | 2340990 |
VOLVO EQUIPMENT | 247050 |
VOLVO EQUIPMENT | 4720309 |
VOLVO EQUIPMENT | 23409900 |
VOLVO EQUIPMENT | VOE11992886 |
VOLVO EQUIPMENT | VOE11993686 |
VOLVO EQUIPMENT | VOE119936862 |
VOLVO EQUIPMENT | VOE2340990 |
VOLVO EQUIPMENT | VOE247050 |
VOLVO EQUIPMENT | VOE4720309 |
WARNER SWASEY | 90204732 |
WIX FILTER | 51474 |
WIX FILTER | 551474 |
WIX FILTER | 57410 |
WOODGATE | WGH6420 |
YALE | 2115522 |
Machinery & Equipment
Equipment | Year | Equipment Type | Equipment Options | Engine |
CASE IH 680 | BACKHOE LOADER | CASE IH A336BDT | ||
CASE IH 680 | BACKHOE LOADER | CASE IH A336BD | ||
CASE IH 680CKH | BACKHOE LOADER | CASE IH A336BD | ||
CASE IH 780B | TRACTOR | CASE IH A336BD | ||
CASE IH 780C | TRACTOR | CUMMINS 6BT5.9 | ||
CATERPILLAR PF300B | COMPACTOR | PF SERIES | CATERPILLAR 3054E | |
CATERPILLAR PF300C | COMPACTOR | PF SERIES | CATERPILLAR 3054C | |
CATERPILLAR PS300B | COMPACTOR | PS SERIES | CATERPILLAR 3054T | |
CATERPILLAR PS300C | COMPACTOR | PS SERIES | CATERPILLAR 3054C | |
CATERPILLAR TH103 | TELEHANDLER | TH SERIES | CATERPILLAR 3054T | |
CATERPILLAR TH62 | TELEHANDLER | TH SERIES | CATERPILLAR 3054T | |
CATERPILLAR TH63 | TELEHANDLER | TH SERIES | CATERPILLAR 3054T | |
CATERPILLAR TH82 | TELEHANDLER | TH SERIES | CATERPILLAR 3054T | |
CATERPILLAR TH83 | TELEHANDLER | TH SERIES | CATERPILLAR 3054T | |
CLAAS TARGO K50 | TELEHANDLER | TARGO | PERKINS 1004.40TW | |
CLAAS TARGO K50 | TELEHANDLER | TARGO | PERKINS 1004.40T | |
CLAAS TARGO K60 | TELEHANDLER | TARGO | PERKINS 1004.40T | |
CLAAS TARGO K60 | TELEHANDLER | TARGO | PERKINS 1004.40TW | |
CLAAS TARGO K70 | TELEHANDLER | TARGO | PERKINS 1004.40T | |
CLAAS TARGO K70 | TELEHANDLER | TARGO | PERKINS 1004.40TW | |
CLARK 35C | LOADER WHEELED | PERKINS 4.58A | ||
CLARK 45C | LOADER WHEELED | PERKINS 4.58A | ||
CLARK 45C | LOADER WHEELED | PERKINS 4.59A | ||
CLARK DCS251 | FORKLIFT | DCS SERIES | PERKINS 4.59A | |
CLARK GCS20MB | FORKLIFT | MITSUBISHI 4G54 | ||
CLARK GCS20MC | FORKLIFT | MITSUBISHI 4G54 | ||
CLARK GCS20WC | FORKLIFT | WAUKESHA D176 | ||
CLARK GCS30MB | FORKLIFT | MITSUBISHI 4G54 | ||
CLARK GCS30WC | FORKLIFT | WAUKESHA D176 | ||
GEHL RS5 | TELEHANDLER | JOHN DEERE 4045 | ||
GEHL RS534 | TELEHANDLER | JOHN DEERE 4045 | ||
GEHL RS6 | TELEHANDLER | JOHN DEERE 4045 | ||
GEHL RS642 | TELEHANDLER | JOHN DEERE 4045 | ||
GEHL RS8 | TELEHANDLER | JOHN DEERE 4045 | ||
GEHL RS84244 | HANDLER | JOHN DEERE 4045 | ||
GRADALL 532 | MATERIAL HANDLER | GRADALL 532 | ||
GRADALL 534B6 | MATERIAL HANDLER | GRADALL 534B6 | ||
GRADALL 534B8 | MATERIAL HANDLER | GRADALL 534B8 | ||
GRADALL 534B9 | MATERIAL HANDLER | GRADALL 534B9 | ||
GRADALL 544B | TELEHANDLER | GRADALL 544B | ||
GRADALL G943 | MATERIAL HANDLER | GRADALL G943 | ||
GRADALL G943A | MATERIAL HANDLER | GRADALL G943A | ||
HITACHI FR100 | LOADER WHEELED | FR SERIES | HITACHI FR100 | |
HSM 704 D | TRACTOR | HSM 704 D | ||
MANITOU MC40PS | FORKLIFT | MC SERIES | MANITOU MC40PS | |
MANITOU MC50PS | FORKLIFT | MC SERIES | MANITOU MC50PS | |
MANITOU MC60TPS | FORKLIFT | MC SERIES | MANITOU MC60TPS | |
MANITOU MT430CPC | TELEHANDLER | MT SERIES | MANITOU MT430CPC | |
MANITOU MT430CPDS | TELEHANDLER | MT SERIES | MANITOU MT430CPDS | |
MANITOU MT430CPL | TELEHANDLER | MT SERIES | MANITOU MT430CPL | |
MANITOU MT430CPS | TELEHANDLER | MT SERIES | MANITOU MT430CPS | |
MANITOU MT430DCP | TELEHANDLER | MT SERIES | MANITOU MT430DCP | |
MANITOU MT430SCP | TELEHANDLER | MT SERIES | MANITOU MT430SCP | |
MANITOU MT450CP | TELEHANDLER | MT SERIES | MANITOU MT450CP |
