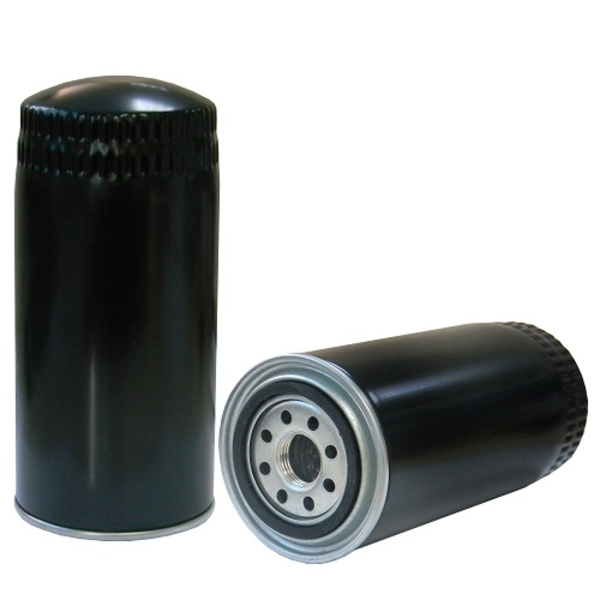

OIL FILTER FULL FLOW SPIN ON
SP1483
OIL FILTER FULL FLOW SPIN ON
SP1483
£28.43 exc VAT
In stock
In stock
Order By 2pm for UK Free Next Day Delivery
Orders under £150 Standard Delivery £15 +VAT
Orders over £150 Free Delivery
| Product Specification | |
| Thread Size | M 24 x 1.5 |
| Outer Diameter | 97 mm (3.82 inch) |
| Gasket OD | 72 mm (2.83 inch) |
| Gasket ID | 62 mm (2.44 inch) |
| Length | 200 mm (7.87 inch) |
| Overall Length | 210 mm (8.27 inch) |
| Efficiency 99% Beta 100 | 12 micron |
| Efficiency 99% Beta 100 | 30 micron |
| Efficiency Test Standard | ISO IATF 16949 |
| Anti Drain Back Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 2.1 bar 30 psi |
| Bypass Valve Setting HR | 2.55 bar 37 psi |
| Type | OEM Quality Hydraulic Oil Filter |
| Style | Spin On Full Flow |
| Media Type | Cellulose Pleated |
| Notes | Bottom End Closed |
| Notes | Combination Filter |
| Notes | Gasket Seal Included |
| Notes | Square Seal is Attached |
| Notes | |
| Primary Application | CATERPILLAR 2698325 |
OEM Cross Reference
| Manufacturer Name | Manufacturer Part No |
| AGCO | 4226293M1 |
| AGCO | 521058D1 |
| AGCO | 529433D1 |
| AGCO | V836179593 |
| ALCO | SP1438 |
| ASAS | SP1483 |
| ASAS FILTER | SP1483 |
| ATLAS COPCO | 2914867200 |
| ATLAS COPCO | 1626088200 |
| ATLAS COPCO | 1626088290 |
| BALDWIN | B7378 |
| BALDWIN | BT40029 |
| CARQUEST | 84325 |
| CATERPILLAR | 2698325 |
| CATERPILLAR | 4621171 |
| CATERPILLAR | 4326683 |
| CATERPILLAR | 2772912 |
| CLAAS | 7988220 |
| DONALDSON | P550920 |
| DONALDSON | P550975 |
| DOOSAN | 40050400196 |
| DOOSAN | 71010200005 |
| DOOSAN | 4627133 |
| FG WILSON | 1000005598 |
| FIL FILTER | ZP3230 |
| FIL FILTER | ZP93D |
| FIL FILTER | ZP93C |
| FILTERMART | 251304 |
| FLEETGUARD | LF17475 |
| FLEETGUARD | LF3468 |
| FLEETGUARD | HF29137 |
| GRAINGER | 6TEX8 |
| HAMM | 2050089 |
| HASTINGS | LF703 |
| HENGST | H384W |
| HENGST | H452W |
| HIFI FILTER | SO11092 |
| HIFI FILTER | SO3468 |
| HIFI FILTER | SO11151 |
| HIFI FILTER | SH62261 |
| JCB | 320A4038 |
| LINK BELT | N4A0269 |
| LUBER FINER | LFP2698 |
| MANN HUMMEL | W9071 |
| MANN HUMMEL | W96250 |
| MANN HUMMEL | W95044 |
| MASSEY FERGUSON | 4226293M1 |
| MISFAT | Z660 |
| NAPA GOLD | 7325 |
| PALLMAN | PFO55092 |
| PALLMAN FILTER | PFO55092 |
| PARKER HANNIFIN | B7378 |
| PARKER HANNIFIN | BT40029 |
| PERKINS | 4627133 |
| PERKINS | 2654A111 |
| PONSSE | 29934 |
| SAKURA | C51070 |
| SAKURA | C85150 |
| SF FILTER | SP4928 |
| SF FILTER | SP4110 |
| SF FILTER | SP96083 |
| SISU | 8361363431 |
| SPAREX | S109385 |
| SURE FILTER | SFO4111 |
| SURE FILTER | SFO3468 |
| SURE FILTER | SFH2261 |
| TEHO | OK135 |
| TRP DAF | 1535346 |
| VALMET | 20136342 |
| VALMET | 7836136342 |
| VALMET | 836136342 |
| VALTRA | 836162572 |
| VALTRA | V836162572 |
| VALTRA VALMET | 7836136342 |
| VALTRA VALMET | 836136342 |
| VAPORMATIC | VPD5171 |
| VMC | LF550975 |
| VOEGELE | 2050089 |
| WIRTGEN | 2050089 |
| WIX | WL10234 |
| WIX | 57325 |
Machinery & Equipment
| Equipment | Year | Equipment Type | Equipment Options | Engine |
| CATERPILLAR 120M | GRADER | 120 SERIES | CATERPILLAR C6.6TA ACERT | |
| CATERPILLAR 12M | GRADER | 12 SERIES | CATERPILLAR C6.6TA ACERT | |
| CATERPILLAR 924H | LOADER WHEELED | 900 SERIES | CATERPILLAR C6.6TA ACERT | |
| CATERPILLAR 924HZ | LOADER WHEELED | 900 SERIES | CATERPILLAR C6.6TA ACERT | |
| CATERPILLAR 924K | LOADER WHEELED | CATERPILLAR C6.6TA ACERT | ||
| CATERPILLAR 928H | LOADER WHEELED | 900 SERIES | CATERPILLAR C6.6 ACERT | |
| CATERPILLAR 928HZ | LOADER WHEELED | 900 SERIES | CATERPILLAR C6.6TA ACERT | |
| CATERPILLAR 930H | LOADER WHEELED | 900 SERIES | CATERPILLAR C6.6TA ACERT | |
| CATERPILLAR 938H | LOADER WHEELED | 900 SERIES | CATERPILLAR C6.6TA ACERT | |
| CATERPILLAR 953D | LOADER TRACKED | 900 SERIES | CATERPILLAR C6.6 ACERT | |
| CATERPILLAR 963D | LOADER TRACKED | 900 SERIES | CATERPILLAR C6.6 ACERT | |
| CATERPILLAR 963K | LOADER TRACKED | CATERPILLAR C6.6 ACERT | ||
| CATERPILLAR AP1000E | PAVER | AP SERIES | CATERPILLAR C7.1 | |
| CATERPILLAR AP1055E | PAVER | AP SERIES | CATERPILLAR C7.1 | |
| CATERPILLAR AP600D | PAVER | AP SERIES | CATERPILLAR C6.6 ACERT | |
| CATERPILLAR AP655D | PAVER | AP SERIES | CATERPILLAR C6.6 ACERT | |
| CATERPILLAR BG1000E | PAVER | BG SERIES | CATERPILLAR C7.1 ACERT | |
| CATERPILLAR BG1055E | PAVER | BG SERIES | CATERPILLAR C7.1 ACERT | |
| CATERPILLAR BG600D | PAVER | BG SERIES | CATERPILLAR C6.6 ACERT | |
| CATERPILLAR BG655D | PAVER | BG SERIES | CATERPILLAR C6.6 ACERT | |
| CATERPILLAR CP56 | COMPACTOR | CP SERIES | CATERPILLAR C6.6 ACERT | |
| CATERPILLAR CP64 | COMPACTOR | CP SERIES | CATERPILLAR C6.6 ACERT | |
| CATERPILLAR CP74 | COMPACTOR | CP SERIES | CATERPILLAR C6.6 ACERT | |
| CATERPILLAR CP76 | COMPACTOR | CP SERIES | CATERPILLAR C6.6 ACERT | |
| CATERPILLAR CS56 | COMPACTOR | CS SERIES | CATERPILLAR C6.6 ACERT | |
| CATERPILLAR CS64 | COMPACTOR | CS SERIES | CATERPILLAR C6.6 ACERT | |
| CATERPILLAR CS74 | COMPACTOR | CS SERIES | CATERPILLAR C6.6 ACERT | |
| CATERPILLAR CS76 | COMPACTOR | CS SERIES | CATERPILLAR C6.6 ACERT | |
| CATERPILLAR D6K LGP | TRACTOR TRACKED | D SERIES | CATERPILLAR C6.6 ACERT | |
| CATERPILLAR D6K XL | TRACTOR TRACKED | D SERIES | CATERPILLAR C6.6 ACERT | |
| CATERPILLAR D6N LGP | TRACTOR TRACKED | D SERIES | CATERPILLAR C6.6 ACERT | |
| CATERPILLAR D6N XL | TRACTOR TRACKED | D SERIES | CATERPILLAR C6.6 ACERT | |
| CATERPILLAR IT38H | INTEGRATED TOOL CARRIER | IT SERIES | CATERPILLAR 6.6 ACERT | |
| CATERPILLAR M316D | EXCAVATOR WHEELED | M SERIES | CATERPILLAR C6.6TA ACERT | |
| CATERPILLAR M318D | EXCAVATOR WHEELED | M SERIES | CATERPILLAR C6.6TA ACERT | |
| CATERPILLAR M322D | EXCAVATOR WHEELED | M SERIES | CATERPILLAR C6.6TA ACERT | |
| CATERPILLAR PL61 | PIPE LAYER | PL SERIES | CATERPILLAR C6.6 ACERT | |
| CLAAS AVERO 160 | COMBINE | AVERO | CATERPILLAR C6.6 | |
| CLAAS AVERO 240 | COMBINE | AVERO | CATERPILLAR C6.6 | |
| CLAAS LEXION 510 | COMBINE | LEXION | CATERPILLAR C6.6 | |
| CLAAS LEXION 520 | COMBINE | LEXION | CATERPILLAR C6.6 | |
| CLAAS LEXION 520 MONTANA | COMBINE | LEXION | CATERPILLAR C6.6 | |
| CLAAS LEXION 540C | COMBINE | LEXION | CATERPILLAR C6.6 | |
| CLAAS LEXION 620 | COMBINE | LEXION | CATERPILLAR C6.6 | |
| CLAAS LEXION 640 | COMBINE | LEXION | CATERPILLAR C6.6 | |
| FG WILSON P2002 | GENERATOR SET | PERKINS 1106C.E66TAG2 | ||
| FG WILSON P2002 | GENERATOR SET | PERKINS 1106C.E66TAG4 | ||
| JCB 2115 4WS | TRACTOR | PERKINS 1006 6T | ||
| MASSEY FERGUSON MF5465 | TRACTOR | MF 5400 SERIES | PERKINS 1106D.E66TA | |
| MASSEY FERGUSON MF5475 | TRACTOR | MF 5400 SERIES | PERKINS 1106D.E66TA | |
| MASSEY FERGUSON MF6465 | TRACTOR | MF 6400 SERIES | PERKINS 1106D.E66TA | |
| MASSEY FERGUSON MF6475 | TRACTOR | MF 6400 SERIES | PERKINS 1106D.E66TA | |
| MASSEY FERGUSON MF6480 | TRACTOR | MF 6400 SERIES | PERKINS 1106D.E66TA | |
| MASSEY FERGUSON MF7465 | TRACTOR | MF 7400 SERIES | PERKINS 1106D.E66TA | |
| MASSEY FERGUSON MF7475 | TRACTOR | MF 7400 SERIES | PERKINS 1106D.E66TA | |
| MASSEY FERGUSON MF7480 | TRACTOR | MF 7400 SERIES | PERKINS 1106D.E66TA | |
| PERKINS 1106A.70TAG | ENGINE | PERKINS 1106A.70TAG | ||
| PERKINS 1106A.70TG | ENGINE | PERKINS 1106A.70TG | ||
| VALMET 1203 | TRACTOR | 1000 SERIES | VALMET 411 CX | |
| VALMET 6250HI | TRACTOR | 6000 SERIES | VALMET 420 DSRE | |
| VALMET 6350HI | TRACTOR | 6000 SERIES | VALMET 420 DSRE | |
| VALMET 6550 | TRACTOR | VALMET 420 DS | ||
| VALMET 6550HI | TRACTOR | 6000 SERIES | VALMET 420 DWRE | |
| VALMET 715 | TRACTOR | 700 SERIES | VALMET 411 D | |
| VALMET 715M | TRACTOR | 700 SERIES | VALMET 411 D | |
| VALMET 815 | TRACTOR | 800 SERIES | VALMET 411 DS | |
| VALMET 855 | TRACTOR | 800 SERIES | VALMET 411 DS | |
| VALMET 905 | TRACTOR | 900 SERIES | VALMET 611 D | |
| VALMET X110 | TRACTOR | VALMET 611 D |
