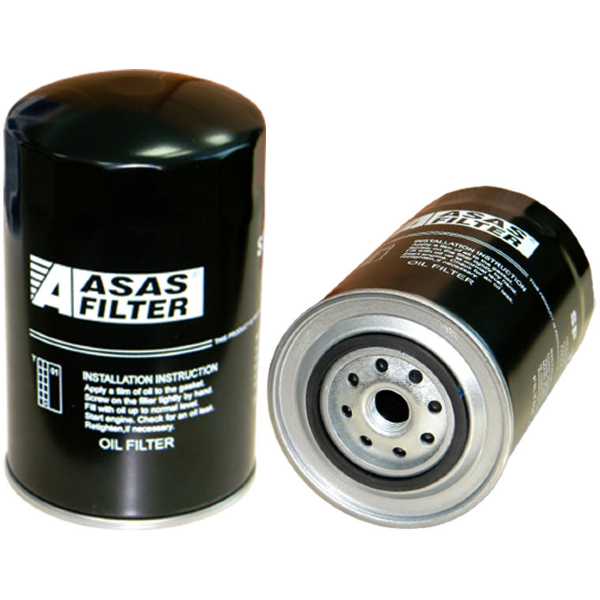

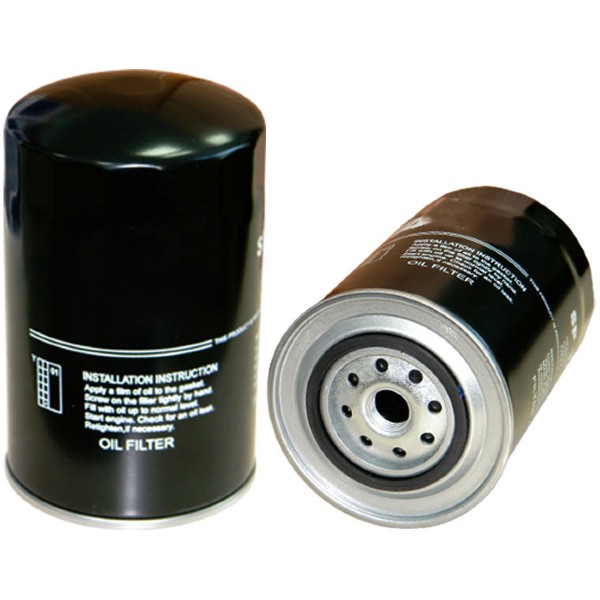

OIL FILTER SPIN ON FULL FLOW

SP410

OIL FILTER SPIN ON FULL FLOW

SP410

£32.46 exc VAT

In stock

In stock

Order By 2pm for UK Free Next Day Delivery

Orders under £250 Standard Delivery £25 +VAT

Orders over £250 Free Delivery

Product Specification
Thread Size 1 x 12 UN
Outer Diameter 111 mm (4.37 inch)
Gasket OD 71 mm (2.80 inch)
Gasket ID 62 mm (2.44 inch)
Length 232 mm (9.13 inch)
Overall Length 237 mm (9.33 inch)
Efficiency 99% Beta 100 10 micron
Efficiency Test Standard ISO IATF 16949
Bypass Valve Yes
Bypass Valve Setting LR 2.4 bar 19 psi
Bypass Valve Setting HR 2.5 bar 20 psi
Collapse Burst 13.8 bar 100 psi
Stand Pipe No
Type OEM Quality Oil Filter
Style Spin On Full Flow
Media Type Cellulose Pleated
Notes Bottom End Closed
Notes Gasket Seal Included
Notes Square Seal is Attached
Notes Use SP1010 for Standard Version
Notes
Primary Application FIAT EQUIPMENT 1909137

OEM Cross Reference

Manufacturer Name Manufacturer Part No
AC X39
AC X69
AC DELCO PF1090
AC DELCO PF1128
AC DELCO X39
AC DELCO X69
AIR REFINER PL4104
ALCO SP1013
ALCO SP877
ALLIS CHALMERS 1901604
ALLIS CHALMERS 4667755
ALLIS CHALMERS 4667338
ALLIS CHALMERS 4667339
ALLIS CHALMERS 74667755
ALLIS CHALMERS 8826586
AMERICAN MOTORS CORP OC29010
AMERICAN MOTORS CORP SFO7570
AP FILTER AP3217
AP FILTER AP3217A
AP LOCKHEED LK3217
AP LOCKHEED LK3217A
AP LOCKHEED AP3217
AP LOCKHEED AP3217A
AP PARTS AP3217
AP PARTS AP3217A
AP PARTS LK3217
ASAS SP410
ASAS FILTER SP410
ASTRA 48003
ASTRA 1901604
ATMOS 627963062130
BALDWIN BT349
BENATI 1836107
BIG A 92825
BIG A 92832
BOSCH REXROTH 451301156
BOSCH REXROTH 451301088
BOSCH REXROTH 9450732007
BOSCH REXROTH P1156
BOSCH REXROTH 1457431112
BOSCH REXROTH 9455081011
BOSCH REXROTH 9455081025
BOTTARINI 223475
BOWES LFP2229
BRAUD 20009251
BUDA 4667338
BUDA 4667339
BUDA 4667755
BUDA 8826586
CARQUEST 85825
CARQUEST 85832
CASE IH 1836107
CASE IH 1901604
CASE IH 1909137
CASE IH 437072
CASE IH 71909137
CASE IH L2750557
CASE IH 313273R93
CASE IH 31326737R91
CASE IH R1930213
CASE IH R1930544
CATERPILLAR 3I1247
CAV G418
CHAMP LFP4104
CLEAN DO268
COMPAIR 59946
COOPERS AZL120
COOPERS LSF5158
CROSLAND 9304
DARMET G338
DELPHI EFL523
DEUTZ 1909137
DEUTZ 905411880011
DIAMOND FD8320
DIESELTECHNIC 759011
DONALDSON P551604
DONIT 431097
DORMAN SE111B
DORMAN SE111
ELOFIC EXL508
ERCIF R338
EXMAN OC29010
EXMAN SFO7570
FAMEL F37
FG WILSON 901136
FG WILSON Y0200020
FG WILSON 10000-51283
FIAAM FT4804
FIAAM FT4804A
FIAAM FT4857
FIAAM FT5237
FIAC 7211131500
FIAT 1901604
FIAT 1930544
FIAT 4667339
FIAT 48003
FIAT 1836107
FIAT 1907570
FIAT 1909137
FIAT 437072
FIAT 4667338
FIAT 4667755
FIAT 4667755E54023
FIAT 704667755
FIAT 71901604
FIAT 71909137
FIAT 74663338
FIAT 74667338
FIAT 74667339
FIAT 74667755
FIAT 78826586
FIAT 79026104
FIAT 8826586
FIAT 1162757
FIAT 1162921
FIAT 1909604
FIAT 20009251
FIAT 61589106
FIAT 19011604
FIAT 466755E54023
FIAT 7111041
FIAT 7111671
FIAT 7121369
FIAT 7121389
FIAT 7122733
FIAT 75285228
FIAT MFO4667755
FIAT AGRI 1930544
FIAT GROUP 1909137
FIAT HITACHI 1909137
FIATALLIS 74667755
FIATALLIS 71901604
FIATALLIS 75285228
FIATALLIS 71909137
FIATALLIS 78826586
FIATALLIS 74663338
FIATALLIS 1909137
FIATALLIS 79026104
FIATALLIS 74667338
FIATALLIS 4667755
FIATALLIS 74667339
FIATALLIS 61589106
FIL ZP537
FILT FF448EC
FISPA FOE069
FLEETGUARD LF3346
FLEETRITE LFR83346
FLEETRITE LFR83455
FLEETRITE LFR83656
FLEETRITE LFR84104
FLOLINE NO PL4104
FORD 437072
FORD 5011420
FORD 9576P551604
FORD 5011888
FORD D9FL6731C
FRAD 101704110
FRAM PH5449
FRAM PH2883
FREIGHTLINER DNP551604
FREIGHTLINER ABPN10GLF3393
GENERAL ELECTRIC SE111B
GENERAL MOTORS 25012565
GENERAL MOTORS 7984920
GENERAL MOTORS 9975220
GFF OFS4065
GIESSE CLH392
GIF GL338
GIF FILTER GL338
GMC 9975220
GONHER GP88
GRAINGER 2KZX1
GREYFRIARS 952S
GUD Z209
GUIOT GH2883
HASTINGS LF537
HASTINGS P537
HAVAM HD0329
HENGST H220W
HIFI SO045
HIFI FILTER SO045
HITACHI 1909137
HITACHI 1930544
INPECA J339E
INPECA SLB0964
INTERNATIONAL 313273R93
INTERNATIONAL 3136737R91
IRLEMP PERI236
IVECO 1907570
IVECO 4667339
IVECO 4667755
IVECO 1901604
IVECO 1909137
IVECO 78826586
IVECO 503120400
JOHN DEERE DQ15097
JUDICA FO100V
KELTEC KL590007
KNECHT AW91
KNECHT OC35
KS KOLBENSCHMIDT 50013017
KS KOLBENSCHMIDT 170S
KS KOLBENSCHMIDT 17OS
LANSS BL2087
LB FILTER L52
LB FILTER L53
LEYLAND ABU8533
LEYLAND DAF LDV ABU8533
LOCKHEED AP3217
LOCKHEED AP3217A
LOCKHEED LK3217
LOGAN FL242US
LUBER FINER LFP2229
LUCAS G418
LUCAS CAV EFL523
M FILTER MH3337
MACO MEUDON 685 60870
MACO MEUDON 561946
MACO MEUDON 68560870
MAHINDRA 0303BAV00170N
MAHLE OC35
MANN HUMMEL W117016
MANN HUMMEL W117015
MANN HUMMEL W1170
MARINE PERFORMANCE MPL5265
MASSEY FERGUSON 26540237
MASSEY FERGUSON AM042904
MASTERFILT MAP125
MATCH FILTER 158462
MATTEI 59946
MECA FILTER ELH4700
MISFAT 12312000
MISFAT Z120
MONZA AL20
MOTORCRAFT EFL173
MULTI PART ABU8533
MULTIPART ABU8533
MWM 905411880022
MWM 9054118800011
MWM 905411880011
MWM 10325
MWM 90541188001
NAPA GOLD 1825
NAPA GOLD 1832
NASA NS1025
NEW HOLLAND 4667755
NEW HOLLAND 437072
NEW HOLLAND 1930544
NOITECH SRL NO014980
OERLIKON LEYBOLD VACUUM 71214598A
ONERGYS 30004792
PALLMAN PFO55160
PALLMAN FILTER PFO55160
PARKER HANNIFIN BT349
PARKER HANNIFIN R172555
PBR BC1086
PER FILTER P537
PERKINS SE111P
PERKINS 4324909
PERKINS 901136
PERKINS 26540237
PERKINS AM042904
PERMATIC GL338
POWER PART AM042904
PPM L2750557
PURFLUX LS957
PURIAR PL2056
PUROLATOR L37232
PUROLATOR L50034
PUROLATOR L57232
PUROLATOR PC232
PUROLATOR L1086
PUROLATOR PAS14
RACOR R172555
RACOR RL236
RENAULT AGRICULTURE 6005019743
RENAULT BUS RVI 5001846640
RENAULT TRUCKS 5021107396
RENAULT TRUCKS 5001846640
RENAULT VI 5001846640
RENAULT VI 6005019743
ROMAN LUS339
ROVER ABU8533
ROVER 1306549
SAKURA C7008
SAKURA C52100
SAMPIYON CS1410
SAVARA 928045
SAVARA 92804517
SAVARA SO045
SAVARA 928260
SAVARA SO260
SAVARA 92828817
SCHULZ 701440
SCT SM863
SDMO 330560160
SDMO 330071713
SDMO 330560748
SDMO 3305600160
SF FILTER SP4650
SF FILTER SP4332
SINFA 28045
SOFIMA S8800R
SOFIMA S0230R
SOGEFI PRO FT5237
SOGEFI PRO FT4804
SOPARIS CV406
SOTRAS SH8149
SPAREX S109779
SPAREX S62137
SPERRY 4667755
STANDARD AIR SH8149
STEP FILTER HC5733
SULLAIR 68560870
SURE FILTER SFO7570
TEC FIL PSL339
TECA FILTER H0594
TECALEMIT TJ R88
TECHNOCAR R320
TECHNOCAR R88
TECNECO OL268
TECNOCAR R88
TEHO 4117
TEHO OK117
TEHO FILTER 4117
TEHO FILTER OK117
TEKSAN JENERATÖR 9007801
TEREX L2750557
TRACTOMOTIVE 4667338
TRACTOMOTIVE 4667339
TRACTOMOTIVE 8826586
TRP 1516156
TRP 1535301
TRP 1534495
TRUCK CARE 7101210
TUTELA WEBER LB158
UFI 2311901
UFI 2312000
UFI 2312001
UNICO LI10227
UNIPART ABU8533
VALMET 80842000
VALMET 3338079
VALTRA 3338079
VALTRA 808420
VANDEL 4267531V01
VAPORTMATIC VPD5039
VINTO FT202
VMC LF551604
VOLKSWAGEN 2TB115561
VOLVO 3338079
VOX LB2814
VOX LB339
VW GROUP 2S0115561
VW GROUP TAE115561
VW GROUP 2TB115561
VW GROUP 905411880011
WALGAHN MOTORENTECHN 811373
WEGA WO610
WFZ 9025516040
WGB S313CP
WIX 51832
WIX 51825
WIX 51825E
WOODGATE WGL3346
WOODGATE WGL3346A
WOODGATE WGL4104
YANMAR 11959335100
ZETTELMEYER MU4345

Machinery & Equipment

Equipment Year Equipment Type Equipment Options Engine
ALLIS CHALMERS 10C TRACTOR FIAT 8365
ALLIS CHALMERS 14B TRACTOR FIAT 8365
ALLIS CHALMERS 14C TRACTOR FIAT 8365
ALLIS CHALMERS 645 AGRICULTURAL EQUIPMENT ALLIS CHALMERS 3500 MKII
ALLIS CHALMERS FD20 TRACTOR FIAT 8215
ALLIS CHALMERS FE20 MISC EQUIPMENT ALLIS CHALMERS 3500 MKII
ALLIS CHALMERS FE28 MISC EQUIPMENT ALLIS CHALMERS 3500 MKII
ALLIS CHALMERS FE40 MISC EQUIPMENT ALLIS CHALMERS 3500 MKII
ALLIS CHALMERS FG75 GRADER ALLIS CHALMERS 3500 MKII
ALLIS CHALMERS FG75A GRADER ALLIS CHALMERS 3500 MKII
ALLIS CHALMERS FG85 GRADER ALLIS CHALMERS 3500 MKII
ALLIS CHALMERS FG85A GRADER ALLIS CHALMERS 3500 MKII
ALLIS CHALMERS FG95 GRADER ALLIS CHALMERS 3500 MKII
ALLIS CHALMERS FG95A GRADER ALLIS CHALMERS 3500 MKII
ALLIS CHALMERS FL10C MISC EQUIPMENT ALLIS CHALMERS 3500 MKII
ALLIS CHALMERS FL14B MISC EQUIPMENT ALLIS CHALMERS 3500 MKII
ALLIS CHALMERS FL14C MISC EQUIPMENT ALLIS CHALMERS 3500 MKII
ALLIS CHALMERS FL20 MISC EQUIPMENT ALLIS CHALMERS 3500 MKII
ALLIS CHALMERS FR15 MISC EQUIPMENT ALLIS CHALMERS 3500 MKII
ALLIS CHALMERS TL645B LOADER ALLIS CHALMERS 3500 MKII
BENATI 22 CONSTRUCTION EQUIPMENT FIAT 820251
BENATI 22S CONSTRUCTION EQUIPMENT FIAT 820251
BENATI 25S CONSTRUCTION EQUIPMENT FIAT 820251
BENATI BEN 22 SHOVEL FIAT 820251
BENATI BEN 22 SHOVEL FIAT 821511
BENATI BEN 22S SHOVEL FIAT 821511
BENATI BEN 22S SHOVEL FIAT 820251
BENATI BEN 25S SHOVEL FIAT 820251
BENATI BEN 25S SHOVEL FIAT 821511
BENATI BEN 95B SHOVEL FIAT CP3
CASE IH 228 DUMP TRUCK MWM 4.10 T
DEUTZ FAHR MA7.5T TRUCK MWM 4.10 T
DEUTZ FAHR MA8.5T TRUCK MWM 4.10 T
FIAT 10C 67 DOZER TRACKED FIAT 8365
FIAT 115.55 TRACTOR FIAT 8365.25
FIAT 130C TRACTOR FIAT 8205
FIAT 1355C TRACTOR FIAT 8205
FIAT 146 TRACTOR FIAT 8205
FIAT 14C DOZER TRACKED FIAT 8205.05
FIAT 150C TRACTOR FIAT 8365.25
FIAT 155.65 TRACTOR FIAT 8365.25
FIAT 1580 TRACTOR FIAT 8365
FIAT 1580DT TRACTOR FIAT 8365
FIAT 1580T TRACTOR FIAT 8365
FIAT 15B TRACTOR FIAT 8365T
FIAT 160.55 TRACTOR FIAT 8365.25
FIAT 160.9 TRACTOR FIAT 8360.25
FIAT 160.9 TRACTOR FIAT 8325.25
FIAT 160.90DT TRACTOR FIAT 8365.25
FIAT 160.90DT TRACTOR FIAT 8360.25
FIAT 18090 TRACTOR FIAT 8365.25
FIAT 180.55 TRACTOR FIAT 8365.25
FIAT 180.9 TRACTOR FIAT 8360.25
FIAT 180.90DT TRACTOR FIAT 8365.25
FIAT 180NTS TRACTOR FIAT 8210
FIAT 1880DT TRACTOR FIAT 8210
FIAT 190EFH TRUCK FIAT 8210
FIAT 20 TRACTOR TRACKED FIAT 8215
FIAT 20 TRACTOR TRACKED FIAT 8365
FIAT 200C TRACTOR FIAT 8210
FIAT 210S TRUCK FIAT 8210
FIAT 28 TRACTOR FIAT 8365
FIAT 3600R COMBINE FIAT 8361.1
FIAT 3700 COMBINE FIAT 8361.1
FIAT 3900 COMBINE FIAT 8361.1
FIAT 40 EXCAVATOR FIAT 8215
FIAT 400 TRACTOR FIAT 8215T
FIAT 400.2 TRACTOR FIAT 8215T
FIAT 645B LOADER FIAT 8210.22
FIAT 7720 TRACTOR FIAT 8210.22
FIAT 7725 TRACTOR FIAT 8210.22T
FIAT AD10 TRACTOR TRACKED FIAT 8365.05
FIAT AD18 TRACTOR TRACKED FIAT 8215
FIAT AD20 TRACTOR TRACKED FIAT 8215
FIAT BD14 TRACTOR TRACKED FIAT 8215
FIAT BD14B TRACTOR TRACKED FIAT 8215
FIAT BD14L TRACTOR TRACKED FIAT 8215
FIAT BD17 TRACTOR TRACKED FIAT 8215
FIAT BD18 TRACTOR TRACKED FIAT 8215
FIAT BD20 TRACTOR TRACKED FIAT 8215
FIAT FD20 TRACTOR TRACKED FIAT 8215.22
FIAT FE28 EXCAVATOR TRACKED FIAT 8365
FIAT FG75 GRADER FIAT 8365
FIAT FG75A GRADER FIAT 8365
FIAT FG85 GRADER FIAT 8365
FIAT FG85A GRADER FIAT 8365
FIAT FG95 GRADER FIAT 8365
FIAT FG95A GRADER FIAT 8365
FIAT FL10C TRACTOR TRACKED FIAT 8365.05
FIAT FL14 TRACTOR TRACKED FIAT 8205.05
FIAT FL14B TRACTOR TRACKED FIAT 8205.05
FIAT FL14C TRACTOR TRACKED FIAT 8205.05
FIAT FL18 TRACTOR TRACKED FIAT 8205
FIAT FR12C LOADER FIAT 8205
FIAT FR15 LOADER FIAT 8365T
FIAT M150 COMBINE FIAT CP31
FIAT M152 COMBINE FIAT CP31
FIATALLIS 14C DOZER TRACKED FIAT 8205.05
FIATALLIS 15B TRACTOR FIAT 8365T
FIATALLIS 645B LOADER ALLIS CHALMERS 3500 MKII
FIATALLIS 95 AGRICULTURAL EQUIPMENT FIAT 8365.25
FIATALLIS AD10 DOZER TRACKED FIAT 8365.05
FIATALLIS AD14 AGRICULTURAL EQUIPMENT CATERPILLAR D11
FIATALLIS AD14 DOZER TRACKED FIAT 8205.05
FIATALLIS AD14B DOZER TRACKED FIAT 8205.05
FIATALLIS AD14C DOZER TRACKED FIAT 8205.05
FIATALLIS AD18 DOZER TRACKED FIAT 8215
FIATALLIS AD20 DOZER TRACKED FIAT 8215
FIATALLIS BD14 DOZER TRACKED FIAT 8215
FIATALLIS BD14B DOZER TRACKED FIAT 8215
FIATALLIS BD14L DOZER TRACKED FIAT 8215
FIATALLIS BD17 DOZER TRACKED FIAT 8215
FIATALLIS BD18 DOZER TRACKED FIAT 8215
FIATALLIS BD20 DOZER TRACKED FIAT 8215
FIATALLIS FD20 DOZER TRACKED FIAT 8215.22
FIATALLIS FE20 EXCAVATOR FIAT 8365
FIATALLIS FE24 EXCAVATOR FIAT 8365
FIATALLIS FE24 EXCAVATOR FIAT 8205
FIATALLIS FE28 EXCAVATOR FIAT 8365
FIATALLIS FE40 GRADER FIAT 8215
FIATALLIS FE40L GRADER FIAT 8215
FIATALLIS FG75 GRADER FIAT 8365
FIATALLIS FG75A GRADER FIAT 8365
FIATALLIS FG85 GRADER FIAT 8365
FIATALLIS FG85A GRADER FIAT 8365
FIATALLIS FG95 GRADER FIAT 8365
FIATALLIS FG95A GRADER FIAT 8365
FIATALLIS FL10C DOZER TRACKED FIAT 8365.05
FIATALLIS FL14 DOZER TRACKED FIAT 8205.05
FIATALLIS FL14B DOZER TRACKED FIAT 8205.05
FIATALLIS FL14C DOZER TRACKED FIAT 8205.05
FIATALLIS FL18 DOZER TRACKED FIAT 8215.22
FIATALLIS FL20 DOZER TRACKED FIAT 8215.22
FIATALLIS FR12C LOADER FIAT 8205
FIATALLIS FR15 LOADER FIAT 8365T
FORD F12000 LIGHT TRUCK MWM 6.10
FORD F14000 LIGHT TRUCK MWM 6.10
HITACHI DX145 DOZER TRACKED DX SERIES FIAT 8065T
HITACHI DX175 DOZER TRACKED DX SERIES FIAT 8365T
HITACHI DX195L DOZER TRACKED DX SERIES FIAT 8365T
HITACHI FH400 EXCAVATOR TRACKED FIAT 821522400
HITACHI FH400 EXCAVATOR TRACKED FIAT 821522400
HITACHI FL10E EXCAVATOR TRACKED FIAT 821522400
IRISBUS 370.10.20 BUS 300 680 IVECO 8220.02.834
IRISBUS 370.10.24 BUS 300 680 IVECO 8220.22
IRISBUS 370.10.25 BUS 300 680 IVECO 8260.02.405
IRISBUS 370.12.24 BUS 300 680 IVECO 8220.22.709
IRISBUS 370.12.25 BUS 300 680 IVECO 8260.02.405
IRISBUS 370.12.26 BUS 300 680 IVECO 8210.02.405
IRISBUS 370.12.30 BUS 300 680 IVECO 8210.22.406
IRISBUS 370.12.L.25 BUS 300 680 IVECO 8210.02.426
IRISBUS LORRAINE 260 BUS LORRAINE IVECO 8210.02.405
IVECO 15017 1982 TRUCK M SERIES IVECO OM8360.05.200
IVECO 15917 1982 TRUCK M SERIES IVECO OM8360.05.254
IVECO 15917 H 1982 TRUCK P PA SERIES IVECO 8360.05.254
IVECO 18026 1982 TRUCK T SERIES IVECO 8210.02.371 393
IVECO 19026 1983 TRUCK T SERIES IVECO 8210.02.373 377
IVECO 19035 1983 TRUCK T SERIES IVECO 8280.02.109
IVECO 22030PT 1985 TRUCK T SERIES IVECO 8210.22.183
IVECO 24030P 1980 TRUCK T SERIES IVECO 8210.22.269
IVECO 26026H 1983 TRUCK FIAT 8210.02
IVECO 26035H 1983 TRUCK IVECO 8280.02.269
IVECO 32030H 1984 TRUCK IVECO 8210.22.235
IVECO 33026N 1983 TRUCK IVECO 8210.02.067
IVECO 33026N 1983 TRUCK IVECO 8210 02 731
IVECO 33030H 1984 TRUCK IVECO 8210.22X
IVECO 33035 1983 TRUCK IVECO 8280.02
LANDINI 3600 TRACTOR IVECO 8361.1
LANDINI 3700 TRACTOR IVECO 8361.1
LANDINI 3900 TRACTOR IVECO 8361.1
NEW HOLLAND 130C TRACTOR FIAT 8365
NEW HOLLAND 1355C TRACTOR FIAT 8365
NEW HOLLAND 1580 TRACTOR FIAT 8365
NEW HOLLAND 1580 TRACTOR FIAT 8365
NEW HOLLAND 180NT TRACTOR FIAT 8365
NEW HOLLAND 180NTS TRACTOR FIAT 8365
NEW HOLLAND 1880 TRACTOR FIAT 8365
NEW HOLLAND 1880 TRACTOR FIAT 8365
NEW HOLLAND 200C TRACTOR FIAT 8365
VOLKSWAGEN 12.140 TRUCK MWM D2296
VOLKSWAGEN 12.180 TRUCK MWM 6.10
VOLKSWAGEN 13.180 TRUCK MWM 4.10 TCA
VOLKSWAGEN 14.150 TRUCK MWM 6.10
VOLKSWAGEN 14.200 TRUCK MWM 6.10
VOLKSWAGEN 15.180 TRUCK MWM 6.10
VOLKSWAGEN 16.180 TRUCK MWM 6.10 T
VOLKSWAGEN 16.180 CO TRUCK MWM 6.10
VOLKSWAGEN 16.210 CO TRUCK MWM 6.10 TCA
VOLKSWAGEN 17.210 OD TRUCK MWM 6.10 TCA
VOLKSWAGEN 17.230 EOD BUS MWM 6.12 TCE
VOLKSWAGEN 17.240 OT TRUCK MWM 6.10 TCA
VOLKSWAGEN 22.140 TRUCK MWM D2296
VOLKSWAGEN 8.140 TRUCK MWM 4.10
VOLKSWAGEN 16180CD TRUCK PADRON MWM 6.10 T
