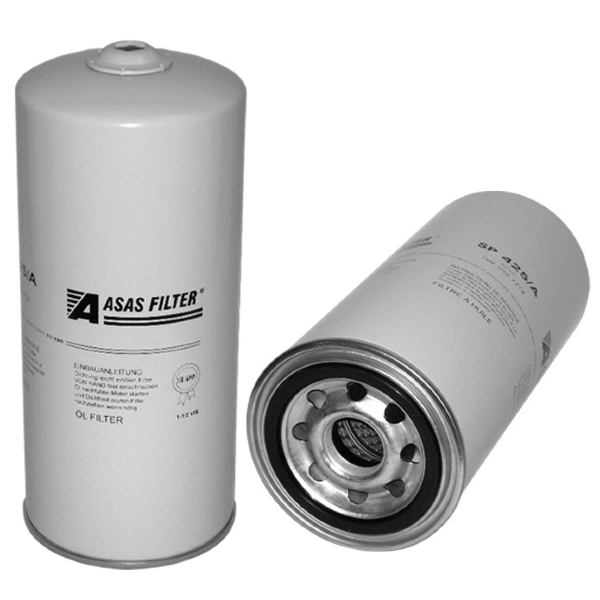

OIL FILTER SPIN ON FULL FLOW
SP425A
OIL FILTER SPIN ON FULL FLOW
SP425A
£62.10 exc VAT
In stock
In stock
Order By 2pm for UK Free Next Day Delivery
Orders under £150 Standard Delivery £15 +VAT
Orders over £150 Free Delivery
| Product Specification | |
| Thread Size | 1 1/2 x 16 UN |
| Outer Diameter | 140 mm (5.51 inch) |
| Gasket OD | 110 mm (4.33 inch) |
| Gasket ID | 100 mm (3.94 inch) |
| Length | 308 mm (12.13 inch) |
| Length | 308 mm (12.13 inch) |
| Efficiency 99% Beta 100 | 22 micron |
| Efficiency Test Standard | ISO IATF 16949 |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 2.2 bar 32 psi |
| Bypass Valve Setting HR | 2.8 bar 41 psi |
| Collapse Burst | 4.1 bar 59 psi |
| Type | OEM Quality Oil Filter |
| Style | Spin On Full Flow |
| Media Type | Cellulose Pleated |
| Notes | Bottom End Closed |
| Notes | Gasket Seal Included |
| Notes | Screw Nut is Attached |
| Notes | Square Seal is Attached |
| Notes | |
| Primary Application | MAN 6771659116 |
OEM Cross Reference
| Manufacturer Name | Manufacturer Part No |
| ALCO | SP1029 |
| ALUP | 17213145 |
| ASAS | SP425A |
| ASAS FILTER | SP425A |
| ATS | 17756 |
| BALDWIN | B7187 |
| BERGERAT MONNOYEUR | E6660 |
| BOSCH REXROTH | 451403208 |
| BOSCH REXROTH | P3208 |
| CARQUEST | 84012 |
| CATERPILLAR | 2266553 |
| COMPAIR | 9826289400001 |
| COOPERS | LFS5026 |
| COOPERS | LSF5026 |
| CROSLAND | 2089 |
| DAF | 267714 |
| DEMAG | 432996 |
| DEMAG | 988701 |
| DIESEL TECHNIC | 545110 |
| DONALDSON | P550341 |
| ELOFIC | EXL524 |
| EUROPART | 9025503410 |
| FIAAM | FT5229 |
| FIL FILTER | ZP82 |
| FILMAR | SO8158A |
| FLEETGUARD | LF3765 |
| FLEETGUARD | LF3493 |
| FLUITEK | H541225M26 |
| FRAD | 432715110 |
| FRAM | PH5234 |
| GIF | GL944 |
| GIF FILTER | GL944 |
| GRAINGER | 3XTZ1 |
| GREYFRIARS | 9011S |
| GUD | Z680 |
| HASTINGS | LF369 |
| HAVAM | HD0251 |
| HENGST | H300W01 |
| HIFI | SO3493 |
| JOHN DEERE | AZ36941 |
| JOHN DEERE | AZ36942 |
| KELTEC | 20029 |
| KNECHT | OC234 |
| KS KOLBENSCHIDT | 50013671 |
| KS KOLBENSCHIDT | 671OS |
| LUBER FINER | LFP2248 |
| M FILTER | MH3395 |
| MAHLE | OC234 |
| MAN | 6771659116 |
| MAN | 6771659272 |
| MANN HUMMEL | W131453 |
| MEAT DORIA | 15016 |
| MECA FILTER | ELH4746 |
| MEYLE | 14340180011 |
| NAPA GOLD | 7012 |
| NOITECH SRL | NO070580 |
| ORENSTEIN KOPPEL | 1450136 |
| PALLMAN | PFO55182 |
| PALLMAN FILTER | PFO55182 |
| PARKER HANNIFIN | B7187 |
| PBR | BC1239 |
| PE PETERS | 10010600A |
| PERMATIC | FH501V |
| PURFLUX | LS844 |
| PUROLATOR | L67640 |
| RENAULT TRUCKS | 5001846644 |
| RENAULT TRUCKS | 5021107393 |
| ROVER | 267714 |
| SAKURA | C7939 |
| SF FILTER | SPH21016 |
| SF FILTER | SP4146 |
| SOFIMA | S3275R |
| SOGEFI PRO | FT5229 |
| SURE FILTER | SFO3493 |
| TECNOCAR | R238 |
| UFI | 2327500 |
| UNICO | LI133023 |
| UNION TECH | 810062175 |
| VMC | LF550341 |
| WALGAHN MOTORENTECHN | 811828 |
| WFZ | 9025503410 |
| WIX | 57012 |
| WOODGATE | WGL13145 |
| WOODGATE | WGL3493 |
| WYTWORNIA FILTER | PP401 |
Machinery & Equipment
| Equipment | Year | Equipment Type | Equipment Options | Engine |
| BOVA FHD10 300 | 1982 | BUS | FUTURA | DAF WS222G |
| BOVA FHD12 360 | 1982 | BUS | FUTURA | DAF DKX Ati |
| BOVA FHD12 370 | 1982 | BUS | FUTURA | DAF WS268G |
| DAF 85.330 ATI | 1992 | TRUCK | 85 SERIES | DAF WS242L |
| DAF 85.360 ATI | 1992 | TRUCK | 85 SERIES | DAF WS268L |
| DAF 85.400 ATI | 1995 | TRUCK | 85 SERIES | DAF WS295M ATI |
| DAF 95.300 ATI | 1992 | TRUCK | 95 SERIES | DAF WS222G |
| DAF 95.310 ATI | 1987 | TRUCK | 95 SERIES | DAF WS225 |
| DAF 95.330 ATI | 1990 | TRUCK | 95 SERIES | DAF WS242 |
| DAF 95.350 ATI | 1987 | TRUCK | 95 SERIES | DAF WS259 |
| DAF 95.360 ATI | 1987 | TRUCK | 95 SERIES | DAF WS270 |
| DAF 95.360 ATI | 1990 | TRUCK | 95 SERIES | DAF WS268 |
| DAF 95.380 ATI | 1987 | TRUCK | 95 SERIES | DAF WS282L |
| DAF 95.400 ATI | 1990 | TRUCK | 95 SERIES | DAF WS295 |
| DAF 95.430 ATI | 1992 | TRUCK | 95 SERIES | DAF WS315G |
| DAF F2900KV ATI | 1990 | TRUCK | F2900 SERIES | DAF KV212 |
| DAF F3200KS ATI | 1990 | TRUCK | F3200 SERIES | DAF KS238 |
| JOHN DEERE 1177 | COMBINE | JOHN DEERE 1177 | ||
| JOHN DEERE 1177 HYDRO4 | COMBINE | JOHN DEERE 1177 HYDRO4 | ||
| JOHN DEERE 1188 | COMBINE | JOHN DEERE 1188 | ||
| LEYLAND FT95 | 1987 | TRUCK | DAF WS259 ATI | |
| LEYLAND FT95 | 1987 | TRUCK | DAF WS225 ATI | |
| LEYLAND FT95 | 1987 | TRUCK | DAF WS282 ATI | |
| LEYLAND DAF LDV 80.330 | 1990 | TRUCK | 80 SERIES | DAF 80.330 |
| LEYLAND DAF LDV 95.310 | 1989 | TRUCK | DAF WS225 ATI | |
| LEYLAND DAF LDV 95.350 | 1989 | TRUCK | DAF WS259 ATI | |
| LEYLAND DAF LDV 95.380 | 1989 | TRUCK | DAF WS282 ATI | |
| LEYLAND DAF LDV 95.400 | 1989 | TRUCK | DAF WS295 ATI |
