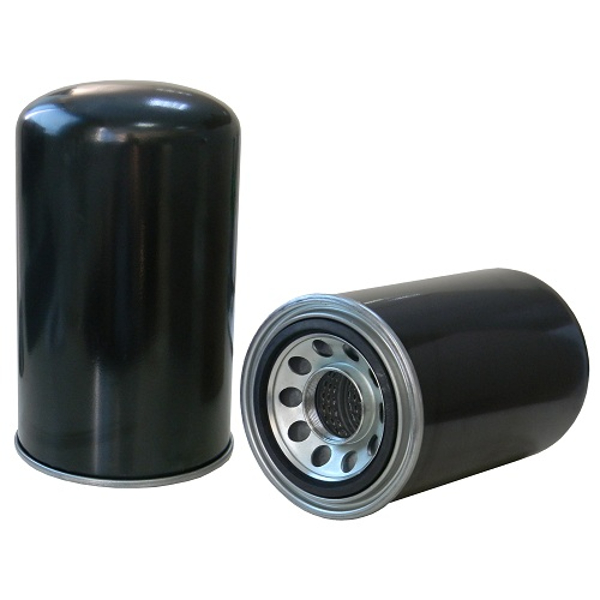

HYDRAULIC FILTER SPIN ON
SP653
HYDRAULIC FILTER SPIN ON
SP653
£67.06 exc VAT
In stock
In stock
Order By 2pm for UK Free Next Day Delivery
Orders under £150 Standard Delivery £15 +VAT
Orders over £150 Free Delivery
| Product Specification | |
| Thread Size | 1 3/4 x 16 UN |
| Outer Diameter | 140 mm (5.51 inch) |
| Gasket OD | 110 mm (4.33 inch) |
| Gasket ID | 100 mm (3.94 inch) |
| Length | 244 mm (9.61 inch) |
| Overall Length | 244 mm (9.61 inch) |
| Efficiency 99.9% Beta 1000 | 25 micron |
| Efficiency Test Standard | ISO IATF 16949 |
| By Pass Valve | Yes |
| Bypass Valve Setting LR | 1.2 bar 17 psi |
| Bypass Valve Setting HR | 1.7 bar 25 psi |
| Type | OEM Quality Hydraulic Filter |
| Style | Hydraulic Spin On |
| Media Type | Cellulose Pleated |
| Notes | Bottom End Closed |
| Notes | Gasket Seal Included |
| Notes | Square Seal is Attached |
| Notes | |
| Primary Application | NEW HOLLAND 82005016 |
OEM Cross Reference
| Manufacturer Name | Manufacturer Part No |
| ASAS | SP653 |
| ASAS FILTER | SP653 |
| BALDWIN | BT8382 |
| BIG A | 91107 |
| BIG A | 91421 |
| BIG A | 91603 |
| CARQUEST | 84107 |
| CARQUEST | 84421 |
| CARQUEST | 84603 |
| CASE IH | 1931173 |
| CASE IH | 47135287 |
| CHAMPION LABORATORIES | LFH8726 |
| COOPERS | HSM6170 |
| DONALDSON | P502224 |
| FIAAM | FT5990 |
| FIAT GROUP | 47135286 |
| FIAT GROUP | 82005016 |
| FIL FILTER | ZP3017B |
| FLEETGUARD | HF28885 |
| FLEETRITE | HFR828885 |
| FORD | F0NNB486BB |
| FORD | FONNB486BB |
| FORD | 1865736 |
| FORD | 18657361 |
| FORD | 82005016 |
| FORD | F0NNB486BA |
| FRAM | P5298 |
| GRAINGER | 2TCG7 |
| GREYFRIARS | HS7685 |
| GUD | Z300 |
| HASTINGS | HF991 |
| HENGST | HY474W |
| HIFI | SH59005 |
| KRALINATOR | L7421 |
| LUBER FINER | LFH8726 |
| MANN HUMMEL | W14003 |
| NAPA GOLD | 7107 |
| NAPA GOLD | 7421 |
| NAPA GOLD | 7603 |
| NEW HOLLAND | 82005016 |
| NEW HOLLAND | 81865736 |
| NEW HOLLAND | F0NNB486BB |
| NEW HOLLAND | L82005016 |
| NEW HOLLAND | 84228827 |
| PALLMAN | PFH56527 |
| PALLMAN FILTER | PFH56527 |
| PARKER HANNIFIN | BT8382 |
| SAKURA | HC1905 |
| SF FILTER | SP5190 |
| SPAREX | S109207 |
| SPAREX | S76803 |
| SPAREX | U76803 |
| SPERRY NEW HOLLAND | F0NNB486BB |
| SURE FILTER | SFH1486 |
| SURE FILTER | SFO1486 |
| UNIFLUX | Z300 |
| VAPORMATIC | VPK1526 |
| VMC | HF502224 |
| WIX | 57421 |
| WIX | 557421 |
| WIX | 57107 |
| WOODGATE | WGH1931 |
Machinery & Equipment
| Equipment | Year | Equipment Type | Equipment Options | Engine |
| CASE IH MXM120 | TRACTOR | MXM SERIES | NEW HOLLAND NEF445T MM1 | |
| NEW HOLLAND 130 | TRACTOR | NEW HOLLAND NEF445T MM1 | ||
| NEW HOLLAND 135 | TRACTOR | NEW HOLLAND NEF445T MM1 | ||
| NEW HOLLAND MX125 | TRACTOR | NEW HOLLAND NEF445T MM1 | ||
| NEW HOLLAND T6010 | TRACTOR | T6000 SERIES | NEW HOLLAND NEF445T MM1 | |
| NEW HOLLAND T6020 | TRACTOR | T6000 SERIES | NEW HOLLAND NEF445TA EGD | |
| NEW HOLLAND T6030 | TRACTOR | T6000 SERIES | NEW HOLLAND NEF667TA MEA | |
| NEW HOLLAND T6050 | TRACTOR | T6000 SERIES | NEW HOLLAND NEF667TA | |
| NEW HOLLAND T6060 | TRACTOR | T6000 SERIES | NEW HOLLAND NEF445TA | |
| NEW HOLLAND T6070 | TRACTOR | T6000 SERIES | NEW HOLLAND NEF667TA | |
| NEW HOLLAND TM115 | TRACTOR | NEW HOLLAND NEF445T MM1 | ||
| NEW HOLLAND TM165 | TRACTOR | NEW HOLLAND NEF445T MM1 | ||
| NEW HOLLAND TS100A | TRACTOR | NEW HOLLAND 4273 | ||
| NEW HOLLAND TS110A | TRACTOR | NEW HOLLAND 4273 |
