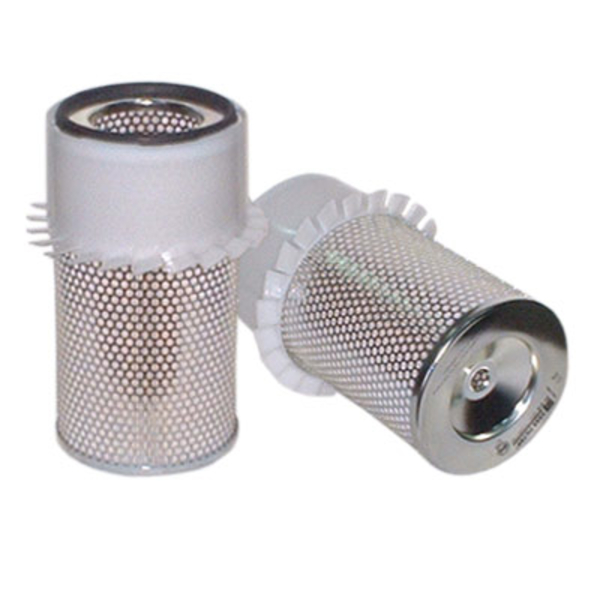

AIR FILTER PRIMARY ROUND FINNED
HF509
AIR FILTER PRIMARY ROUND FINNED
HF509
£42.95 exc VAT
In stock
In stock
Order By 2pm for UK Free Next Day Delivery
Orders under £150 Standard Delivery £15 +VAT
Orders over £150 Free Delivery
| Product Specification | |
| Outer Diameter Top End | 103.5 mm (4.08 inch) |
| Outer Diameter Finned | 130.2 mm (5.13 inch) |
| Inner Diameter | 63 mm (2.48 inch) |
| Inner Diameter Bolt Hole | 17 mm (0.67 inch) |
| Length | 355 mm (13.98 inch) |
| Overall Length | 361 mm (14.21 inch) |
| Efficiency Beta 1000 | 99.9% |
| Efficiency Test Standard | ISO IATF 16949 |
| Family | Extreme Protection |
| Type | OEM Quality Air Filter |
| Style | Primary Round Finned |
| Media Type | Cellulose Pleated |
| Notes | Bottom End Closed |
| Notes | Metal End Caps |
| Notes | Metal Mesh Protection |
| Notes | Safety HF510 |
| Primary Application | CASE IH R39392 |
OEM Cross Reference
| Manufacturer Name | Manufacturer Part No |
| AC DELCO | A614C |
| ADVANCE MACHINE | 478720 |
| ADVANCE MIXER | 478710 |
| AGCO | PM200637 |
| AIR REFINER | ARM120281 |
| ALCO | MD7392K |
| ALLIS CHALMERS | 1014652 |
| ALLIS CHALMERS | 71014652 |
| AMERICAN MOTORS CORP | AE40170 |
| AMERICAN MOTORS CORP | SFA1072PF |
| AMERICAN PARTS | 93489 |
| AMERICAN PARTS | 1169 |
| ASAS | HF509 |
| ASAS FILTER | HF509 |
| ATHEY | P85149A |
| ATHEY | P85149 |
| BALDWIN | PA2344FN |
| BOTTARINI | 220959 |
| CANADIAN FILTER MFG | CFM1003 |
| CANADIAN FILTER MFG | CFM644F |
| CARQUEST | 87489 |
| CARRARO | 44509001 |
| CARRIER TRANSICOLD | 66U17055 |
| CASE IH | R39392 |
| CASE IH | 151849142 |
| CASE IH | 1849142 |
| CASE IH | S113979 |
| CASE IH | S236468 |
| CATERPILLAR | 780071 |
| CATERPILLAR | 3I0395 |
| CATERPILLAR | 3I0823 |
| CATERPILLAR | 3I0943 |
| CATERPILLAR | 9Y6846 |
| CHAMPION INTERNATIONAL | LAF281 |
| COOPERS | AEK2046 |
| CUMMINS | C0140185100 |
| DAEWOO | 9SSLD460123 |
| DAEWOO | D460123 |
| DAEWOO | D470244 |
| DEUTZ | 900025380404 |
| DEUTZ | MD43840 |
| DEUTZ | MD4538 |
| DEUTZ | PM200637 |
| DIAMANT BOART INC | 163659 |
| DIAMANT BOART INC | 541200643 |
| DONALDSON | P182072 |
| DONALDSON | P120281 |
| DONALDSON | P148967 |
| DONALDSON | P151776 |
| DONALDSON | P152656 |
| DONALDSON | P181072 |
| DONALDSON | SMP181072 |
| DONALDSON | XLP182072 |
| DONALDSON HOUSING | FHG052558 |
| DONALDSON HOUSING | FHG052559 |
| DONALDSON HOUSING | FHG052560 |
| DONALDSON HOUSING | FHG052561 |
| DONALDSON HOUSING | FHG052562 |
| DOOSAN | D460123 |
| DRESSER | 134185 |
| DROTT | 5512140 |
| EATON | 5300504 |
| EIMCO | 69008909 |
| EIMCO | D2NP181072 |
| ELGIN | 6187257 |
| ELGIN | 7072917 |
| ENGINE POWER SOURCE | 8273234 |
| EXMAN | AE40170 |
| EXMAN | SFA1072PF |
| FEDERAL MOGUL | 163659 |
| FIAT | 151849142 |
| FIAT | 1849142 |
| FIAT | 71014652 |
| FIAT | 78511591 |
| FIAT | 79056486 |
| FIL | HP4642K |
| FLEETGUARD | AF1823K |
| FORD | 221406 |
| FORD | 221407 |
| FORD | 9576P182072 |
| FORD | 9809915 |
| FORD | 197362 |
| FRAM | CAK1531 |
| GARDNER DENVER | 1155997 |
| GEHL | 92397 |
| GEHL | 263638 |
| GENERAC | 81293 |
| GENERAL MOTORS | 8994564 |
| GPC | FC418 |
| GPC | FC418K |
| GREYFRIARS | 1493AF |
| GROVE | 9304100091 |
| GROVE | 930410091 |
| GUARDIAN | G120281 |
| HAVAM | HD7365 |
| HEAVY DUTY AIR | HDA0281 |
| HIFI | SA11773K |
| HITACHI | 71014652 |
| HITACHI | 79056486 |
| HYDRA MAC | 4101369 |
| IHIMER | 1257855 |
| INGERSOLL RAND | 12403 |
| INGERSOLL RAND | 135291509 |
| INGERSOLL RAND | 35291509 |
| INGERSOLL RAND | 39154703 |
| INTRUPA | IF5005 |
| INTRUPA | IF5005Q |
| JOHN DEERE | MG221406 |
| KOEHRING | 71014652 |
| KOMATSU | 134185 |
| KRAUSS MAFFEI | 92397 |
| LEROI | GD1155997 |
| LEROI | GD172996 |
| LOESING | 20109 |
| LOESING | 20909 |
| LUBER FINER | LAF281 |
| LULL | 8040124 |
| MANITOU | 661548 |
| MANITOWOC | 9304100091 |
| MANITOWOC | 9304100095 |
| MANN HUMMEL | C11130 |
| MARINE TRAVELIFT INC | S236468 |
| MASSEY FERGUSON | TRA8273234 |
| MCCORMICK | MCS236468 |
| MCCORMICK | R39392 |
| MCCORMICK | S113979 |
| MINNPAR | 1014652 |
| MISFAT | 788500 |
| MOTORCRAFT | FA816 |
| MUSTANG | 42034599 |
| NAPA | 2489 |
| NELSON WINSLOW | 120281 |
| NELSON WINSLOW | 70250N |
| NELSON WINSLOW | 70617N |
| NEW HOLLAND | 151849142 |
| NEW HOLLAND | 197362 |
| NEW HOLLAND | 221406 |
| NEW HOLLAND | 221688 |
| NEW HOLLAND | 71014652 |
| NEW HOLLAND | 78511591 |
| NEW HOLLAND | 79056486 |
| NILFISKADVANCE INCORP | 478720 |
| NILFISKADVANCE INCORP | 56478720 |
| OMNIQUIP PARTS WORLDWIDE | 71200637 |
| OMNIQUIP PARTS WORLDWIDE | 8040124 |
| ONAN | 1401851 |
| ONAN | 1401841 |
| PALLMAN | PFA18270 |
| PALLMAN FILTER | PFA18270 |
| PERRY | PAK827 |
| PUROLATOR | AF2973 |
| QUAKER STATE | QSAK1531 |
| RAPIDPARTS INC | A000000368 |
| RAYGO | 221688A |
| RYCO | HDA5426 |
| SAKURA | AS9231 |
| SELLICK EQPT LTD | 180139 |
| SNORKEL | 8020034 |
| SPAREX | S108733 |
| SURE FILTER | SFA1072PF |
| SYSTEMS MATERIAL HANDLING | BWLL2344FN |
| TELEDYNE | 1720001 |
| TIM | 9Y6846 |
| TRAK INTERNATIONAL | 8273234 |
| UFI | 2733400 |
| UNITED CENTRAL INDUSTRIAL | 687564 |
| UNITED CENTRAL INDUSTRIAL | 687812 |
| VERSATILE | 221406 |
| VMC | AF182072 |
| VOLVO | 8273234 |
| WALGAHN MOTORENTECHN | 811081 |
| WALGAHN MOTORENTECHN | 811155 |
| WIX | 42489 |
| WOODGATE | WGA478K |
Machinery & Equipment
| Equipment | Year | Equipment Type | Equipment Options | Engine |
| ANTONIO CARRARO 4300 | TRACTOR | TIGRONE | LOMBARDINI LDW1503 | |
| ANTONIO CARRARO 4800SM | TRACTOR | TIGRONE | VM MOTORI HR392 | |
| ANTONIO CARRARO 5500 | TRACTOR | TIGRONE | VM MOTORI HR394HP | |
| ANTONIO CARRARO 5500 | TRACTOR | SUPERTIGRE | VM MOTORI HR394H | |
| DAEWOO DSL 601 | SKID STEER LOADER | YANMAR 4TNE84 | ||
| DOOSAN 460 | SKID STEER LOADER | CUMMINS B3.3 | ||
| DOOSAN 460 PLUS | SKID STEER LOADER | CUMMINS B3.3 | ||
| GEHL 3825 | SKID STEER LOADER | KUBOTA V1305B | ||
| GEHL 3825SX | SKID STEER LOADER | KUBOTA V2203DI | ||
| GEHL 4625 | SKID STEER LOADER | KUBOTA V2203DI | ||
| GEHL SL3725 | SKID STEER LOADER | FORD 411 VSG | ||
| GEHL SL3825 | SKID STEER LOADER | KUBOTA V1305B | ||
| GEHL SL3825SX | SKID STEER LOADER | FORD I98 KSG | ||
| GEHL SL4510 | SKID STEER LOADER | FORD I98 KSG | ||
| GEHL SL4510 | SKID STEER LOADER | FORD I79 VSG | ||
| GEHL SL4515 | SKID STEER LOADER | FORD I79 VSG | ||
| GEHL SL4515 | SKID STEER LOADER | FORD I98 KSG | ||
| GEHL SL4525 | SKID STEER LOADER | FORD 413 VSG | ||
| GEHL SL4610 | SKID STEER LOADER | PERKINS 4.19 | ||
| GEHL SL4610 | SKID STEER LOADER | PERKINS 4.108 | ||
| GEHL SL4615 | SKID STEER LOADER | PERKINS 4.19 | ||
| GEHL SL4615 | SKID STEER LOADER | PERKINS 4.108 | ||
| GEHL SL4625 | SKID STEER LOADER | KUBOTA V2203B | ||
| GEHL SL4625DX | SKID STEER LOADER | KUBOTA V2203B | ||
| GEHL SL4625SX | SKID STEER LOADER | KUBOTA V2203B | ||
| INGERSOLL RAND P100AWD | COMPRESSOR | INGERSOLL RAND P100AWD | ||
| INGERSOLL RAND P100AWF | COMPRESSOR | INGERSOLL RAND P100AWF | ||
| INGERSOLL RAND P100AWW | COMPRESSOR | INGERSOLL RAND P100AWW | ||
| INGERSOLL RAND P100AWWU | COMPRESSOR | INGERSOLL RAND P100AWWU | ||
| INGERSOLL RAND P100BWD | COMPRESSOR | INGERSOLL RAND P100BWD | ||
| INGERSOLL RAND P100BWW | COMPRESSOR | INGERSOLL RAND P100BWW | ||
| INGERSOLL RAND P100CWD | COMPRESSOR | INGERSOLL RAND P100CWD | ||
| INGERSOLL RAND P100SD | COMPRESSOR | INGERSOLL RAND P100SD | ||
| INGERSOLL RAND P100WDU | COMPRESSOR | INGERSOLL RAND P100WDU | ||
| INGERSOLL RAND P100WF | COMPRESSOR | INGERSOLL RAND P100WF | ||
| INGERSOLL RAND P100WW | COMPRESSOR | INGERSOLL RAND P100WW | ||
| INGERSOLL RAND P100WWU | COMPRESSOR | INGERSOLL RAND P100WWU | ||
| INGERSOLL RAND P110AWD | COMPRESSOR | INGERSOLL RAND P110AWD | ||
| INGERSOLL RAND P110BWD | COMPRESSOR | INGERSOLL RAND P110BWD | ||
| INGERSOLL RAND P110CWD | COMPRESSOR | INGERSOLL RAND P110CWD | ||
| INGERSOLL RAND P125AWF | COMPRESSOR | INGERSOLL RAND P125AWF | ||
| INGERSOLL RAND P125AWJD | COMPRESSOR | INGERSOLL RAND P125AWJD | ||
| INGERSOLL RAND P125AWW | COMPRESSOR | INGERSOLL RAND P125AWW | ||
| INGERSOLL RAND P125BWW | COMPRESSOR | INGERSOLL RAND P125BWW | ||
| INGERSOLL RAND P125WF | COMPRESSOR | INGERSOLL RAND P125WF | ||
| INGERSOLL RAND P125WJD | COMPRESSOR | INGERSOLL RAND P125WJD | ||
| INGERSOLL RAND P125WW | COMPRESSOR | INGERSOLL RAND P125WW | ||
| INGERSOLL RAND P130AWJD | COMPRESSOR | INGERSOLL RAND P130AWJD | ||
| JOHN DEERE 570 | SKID STEER LOADER | JOHN DEERE 570 | ||
| NEW HOLLAND 900 | SWATHER | FORD 200 | ||
| NEW HOLLAND 901 | SWATHER | FORD 200 | ||
| NEW HOLLAND 903 | SWATHER | FORD 200 | ||
| NEW HOLLAND 905 | SWATHER | FORD 200 | ||
| NEW HOLLAND 907 | SWATHER | FORD 200 | ||
| NEW HOLLAND 909 | SWATHER | FORD 200 | ||
| NEW HOLLAND 910 | WINDROWER | FORD 200 | ||
| NEW HOLLAND 912 | WINDROWER | FORD 200 | ||
| NEW HOLLAND L35 | SKID STEER LOADER | L SERIES | WISCONSIN VG4D | |
| NEW HOLLAND L555 | SKID STEER LOADER | L SERIES | PERKINS 4.108 | |
| NEW HOLLAND L775 | SKID STEER LOADER | L SERIES | WISCONSIN V465D | |
| NEW HOLLAND T550 | TRENCHER | WISCONSIN VG4D | ||
| ONAN L423DI | ENGINE | ONAN L423DI | ||
| ONAN L634TI | ENGINE | ONAN L634TI | ||
| ONAN P | ENGINE | ONAN P |
